Checking the Horn
Checking The Horn

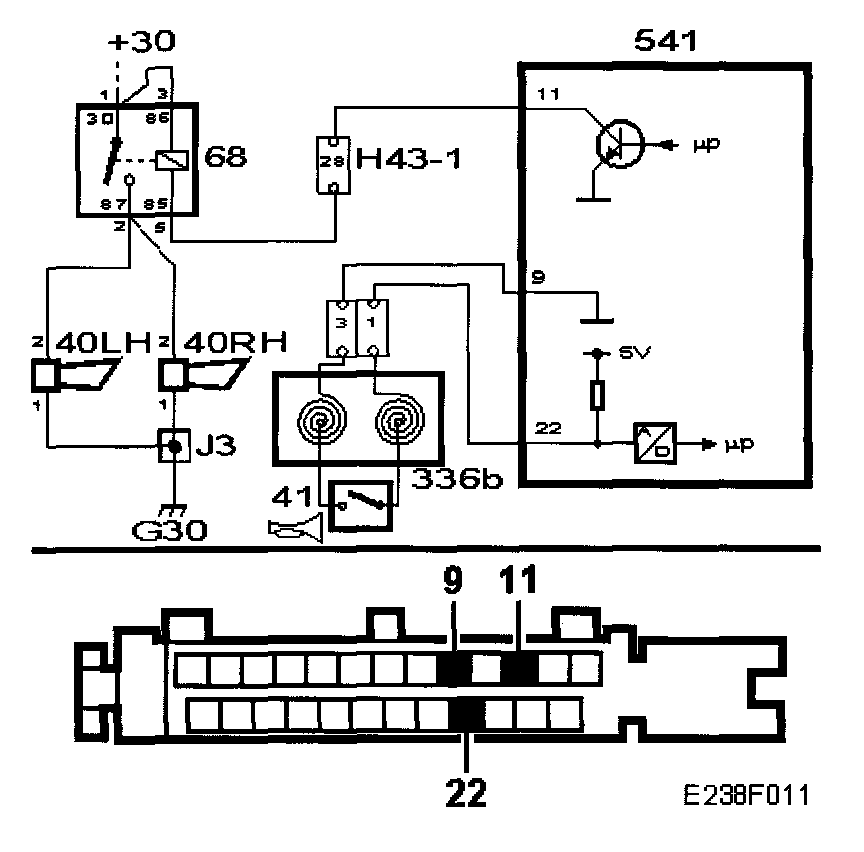

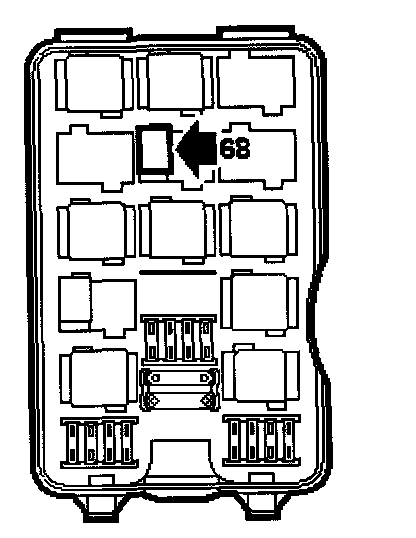

^ Remove component: Horn relay
^ Connect a jumper lead between pins 1 and 2 of the relay holder.
^ The horn should sound.
Is the function correct?
NO ^ Checking the Ground Lead
YES ^ Changing Components - I
Checking The Horn
^ Remove component: Horn relay
^ Connect a jumper lead between pins 1 and 2 of the relay holder.
^ The horn should sound.
Is the function correct?
NO ^ Checking the Ground Lead
YES ^ Changing Components - I
