Washer Fluid Level Sensor Replacement

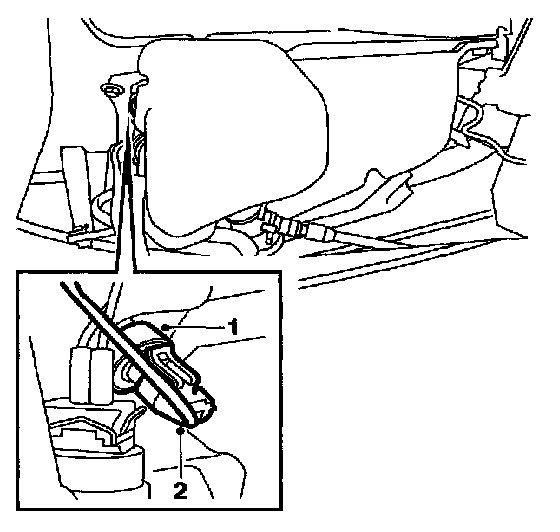

Washer Fluid Level Sensor





To Remove

1 Empty the washer fluid reservoir.
2 Raise the car.
3 Unplug the level sensor connector.
4 Withdraw the level sensor from the washer fluid reservoir.





To Fit

1 Press the level sensor into the washer fluid reservoir with the float hanging down.
2 Plug in the level sensor connector.
3 Lower the car.
4 Fill with washer fluid.
