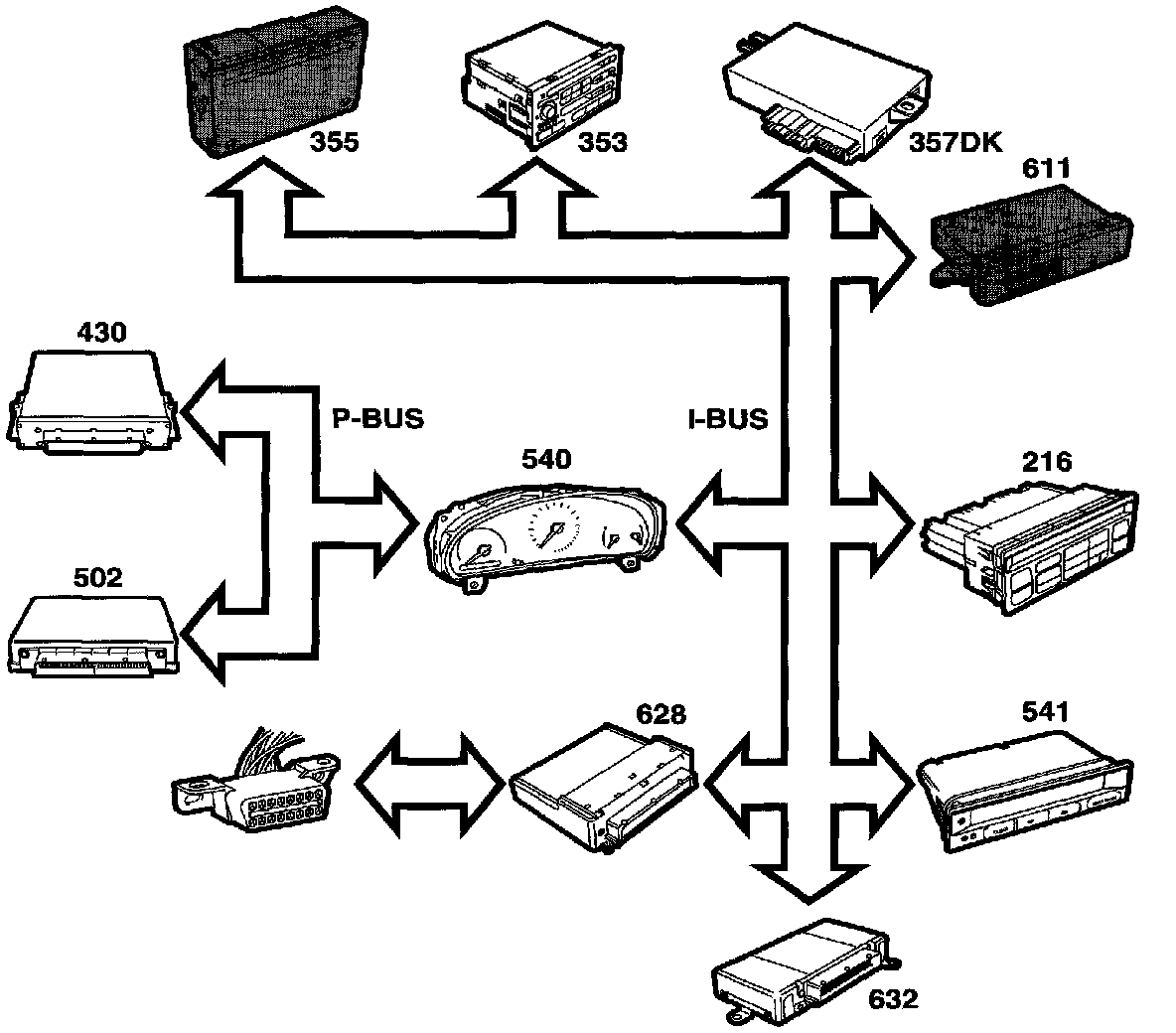

SID Unit Inputs, Bus

SID Unit Inputs, Bus

^ Headlamps (on/off) from DICE 628, see Technical description, "Bus communication". Bus Communication
^ Rear fog light broken (yes/no) from DICE 628, see Technical description, "Bus communication".
^ Direction indicators left (on/off) from DICE 628, see Technical description, "Bus communication".
^ Direction indicators right (on/off) from DICE 628, see Technical description, "Bus communication".
^ Acoustic signal from DICE 628, TWICE 632, ACC 216, AUDIO 353, MIU 540, PSM 357dk, see Technical description, "Bus communication" see Technical description, "Sound" Sound
^ Left rear light broken (yes/no) from TWICE 632, see Technical description, "Bus communication".
^ Right rear light broken (yes/no) from TWICE 632, see Technical description, "Bus communication".
^ Left brake light broken (yes/no) from TWICE 632, see Technical description. "Bus communication".
^ Right brake light broken (yes/no) from TWICE 632, see Technical description, "Bus communication".
^ High level brake light broken (yes/no) from TWICE 632, see Technical description, "Bus communication".
^ Brake lights (on/off) from TWICE 632, see Technical description, "Bus communication".
^ Test brake lights (on/off) from TWICE 632, see Technical description, "Bus communication".
^ Hem (ms) from TWICE 632, see Technical description, "Horn" Horn
^ Text message from TWICE 632, ACC 216, AUDIO 353, MIU 540, TCM 502, see Technical description, "Check Messages" Check Messages
^ RDS time from AUDIO 353, see Technical description, "Time Function" Time Function
^ RDS date from AUDIO 353, see Technical description, "Time Function".
^ RDS month from AUDIO 353, see Technical description, "Time Function".
^ Car speed (km/h, mph) from MIU 540, see Technical description, "Bus communication", see Technical description, "Trip computer functions SID 1/SID 2" Trip Computer Functions SID 1/SID 2 see Technical description, "Trip computer functions, SID 2" Trip Computer Functions, SID 2.
^ Fuel level (litres) from MIU 540, see Technical description, "Bus communication", see Technical description, "Trip computer functions SID 1/SID 2", see Technical description, "Trip computer functions, SID 2".
^ Odometer reading (km, miles) from MIU 540, see Technical description, "Bus communication", see Technical description, "Trip computer functions SID 1/SID 2", see Technical description, "Trip computer functions, SID 2".
^ Engine Started (on/off) from Trionic 430, see Technical description, "Bus communication", see Technical description, "Engine off" time" Engine Off Time
^ Fuel Used Since Start (ml) from Trionic 430, see Technical description, "Bus communication", see Technical description, "Trip computer functions SID 1/SID 2", see Technical description, "Trip computer functions, SID 2".
^ Coolant temperature (°C/°F) from Trionic 430, see Technical description, "Bus communication", see Technical description, "Coolant level sensor" Coolant Level Sensor
^ Diagnostic communication, see Technical description, "Bus communication".
