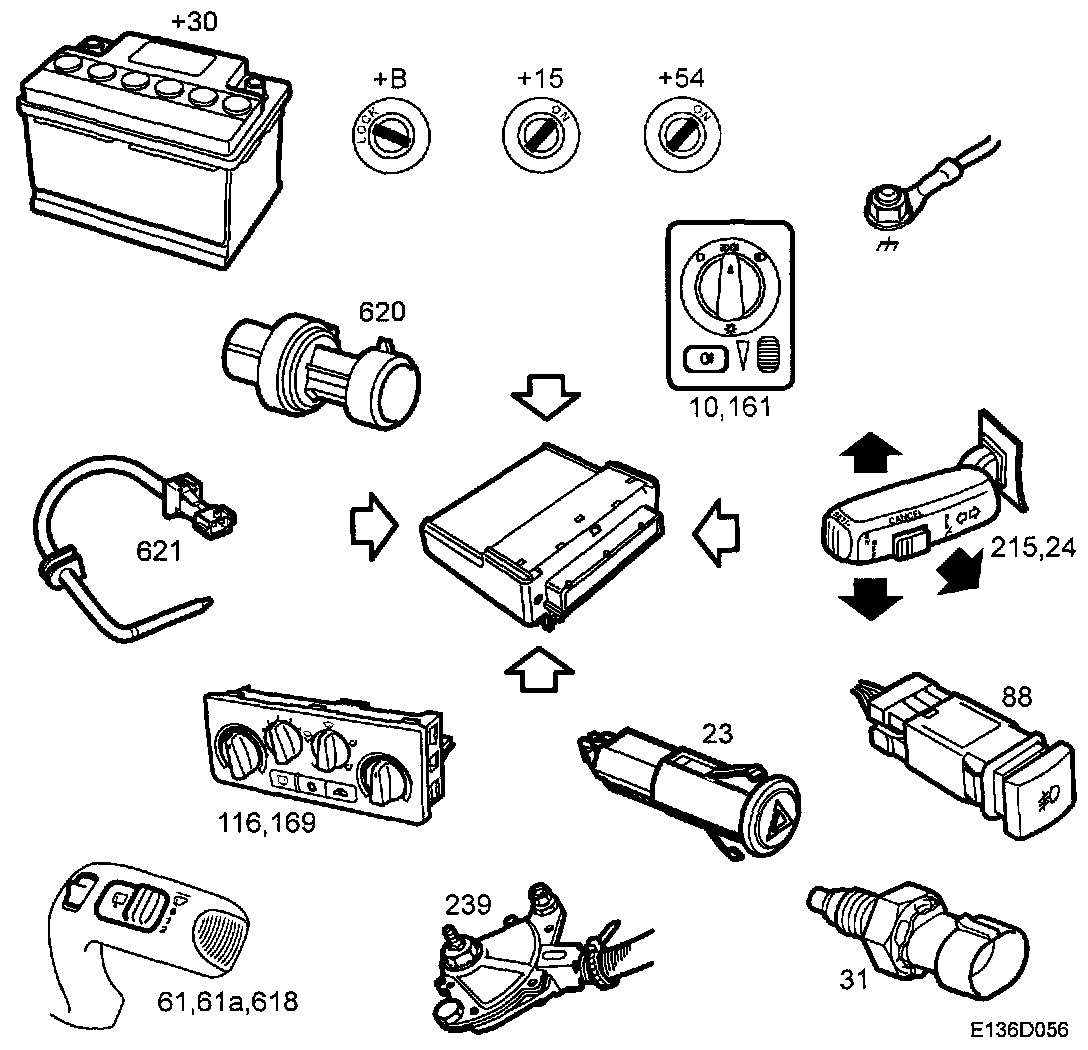

Control Module Inputs, Outputs, Bus, Power Supply and Ground

, P





^ Power supply (+B circuit)
^ Power supply (+15 circuit)
^ Power supply (+30 circuit)
^ Power supply (+54 circuit)
^ ground
^ Exterior lighting, switch pos. 0 / pos. 2 (10)
^ Dipswitch (215)
^ Direction indicators, power supply +30
^ Direction indicators, switch left / right (24)
^ Hazard flasher, switch (23)
^ Front tog lights, switch (88)
^ Rear fog lights, power supply +30
^ Rear fog lights, switch (161)
^ Reversing light switch man/aut (31/239)
^ Comfort lighting, power supply +30
^ Reading/cabin lighting, power supply +30
^ Windscreen and rear widow wipers, parked position (61)
^ Windscreen and rear window washer, switch (61)
^ Intermittent windscreen wiper operation, switch (61)
^ Intermittent rear window wiper operation, switch (61a)
^ Intermittent wiper operation, rheostat (618)
^ Electrically heated rear window and door mirrors, switch (116)
^ Evaporator temperature sensor (621)
^ A/C pressure sensor, (620)
^ A/C, pressure sensor request (620)





Control module inputs, bus
^ Rear lights LH (on/off) from TWICE (632)
^ Rear lights RH (on/off) from TWICE (632)
^ Drivers door (open/closed) from TWICE (632)
^ Passenger door (open/closed) from TWICE (632)
^ Rear door LH (open/closed) from TWICE (632)
^ Rear door RH (open/closed) from TWICE (632)
^ Boot lid/tailgate (open/closed) from TWICE (632)
^ Hazard flashers (on/off) from TWICE (632)
^ A/C (on/off) from ACC (216)
^ Electrically heated rear window (on/off) from ACC (216)
^ Vehicle speed (km/h, mph) from MIU (540)
^ Rheostat value (%) from SID (541)
^ Rheostat Night Panel (%) from SID (541)
^ Night Panel (on/off) from SID (541)
^ Display illumination (%) from SID (541)
^ Outdoor temperature (°C) from SID (541)
^ Engine running (on/off) from TRIONIC
^ Coolant temperature (°C) from TRIONIC
^ Wheel speed RL (km/h) from TC/ABS (382)
^ Diagnostics communication
For a further description of the input information from the bus to the control module. Information Bus

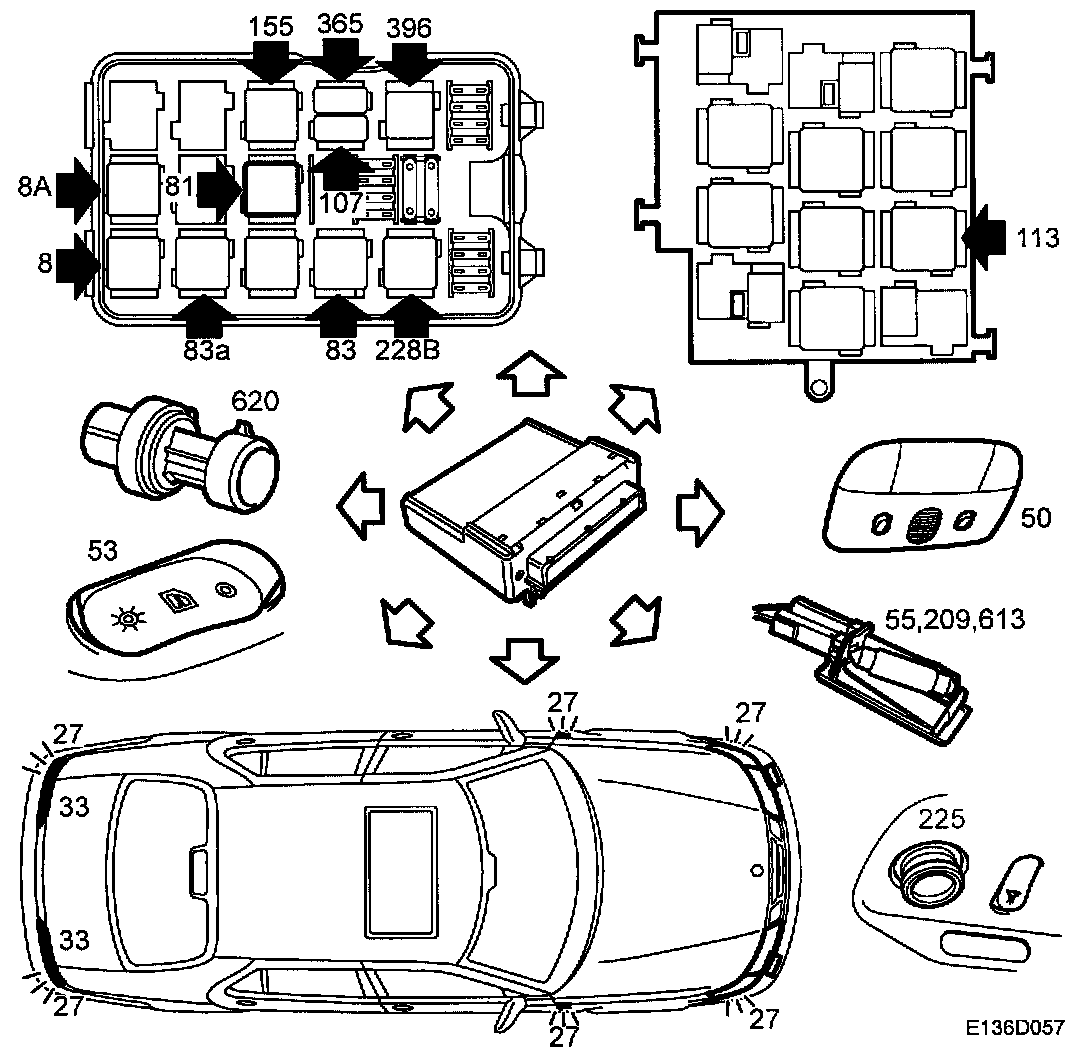

Control module outputs





^ Dipped beam relay (8)
^ Main beam relay (8a)
^ Front fog lights, relay (107)
^ Rear fog light, lamp (33)
^ Direction indicators LH lamp (27)
^ Direction indicators RH lamp (27)
^ Interior lighting, light switch (53)
^ Courtesy/floor lighting, lamps (209/613)
^ Reading lamp (225)
^ Luggage compartment lamp (55)
^ Instrument and control lighting, lamps
^ Intermittent wiper relay, windscreen (83)
^ Rear window intermittent wiper, relay (83a)
^ Headlamp wiper, relay (365)
^ Electrically heated rear window and door mirrors, relay (113)
^ Radiator tan, low-speed relay (396)
^ Radiator tan, high-speed relay 1 (155)
^ Radiator fan, high-speed relay 2 (81)
^ A/C pressure sensor, power supply (620)

Control module outputs, bus





^ A/C (on/off), used by Trionic
^ A/C Pressure (bar), used by Trionic
^ Current consumption (A), used by Trionic
^ Fast idling speed (on/off), used by Trionic
^ Reverse gear (on/off), used by PMM (611), Trionic, SPA (630)
^ Position lights (on/off), used by SID (541)
^ Electrically heated rear window (on/off), used by ACC (216)
^ Rear fog light defective (yes/no), used by SID (541)
^ Direction indicators LH (on/off), used by MIU (540) and SID (541)
^ Direction indicators RH (on/off), used by MIU (540) and SID (541)
^ Rear fog light (on/off) used by MIU (540)
^ Chime (acoustic information) used by SID (541)
^ Ignition +B (on/off) used by Audio (353), TWICE (632)
^ Ignition +15 (on/off), used by TWICE (632)
^ Ignition +54 (on/off), used by TWICE (632)
^ Ignition +50 (on/off) used by ACC (216), TWICE (632)
^ VIN (chassis number), used by Audio (353)
^ Diagnostics communication
For a further description of the control module output information to the bus. Information Bus

Control module





General

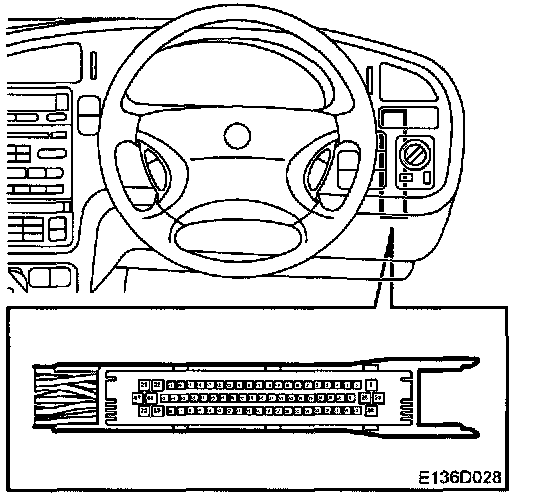

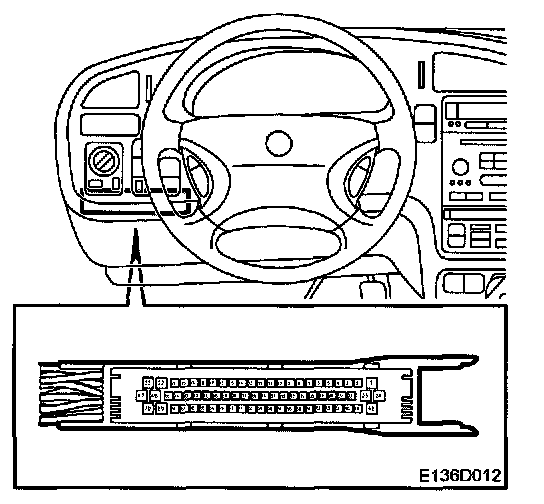

The DICE control module is located above the main relay board (LHD) and adjacent to the main relay board (RHD). It is connected to the system components with a 70 pin connector.
As the central unit in the DICE system, the control module checks and controls the system components and functions as follows:
^ DICE - controls the power supply to the various system functions. Power is supplied directly via the control module and via external relays that are grounded through the control module.

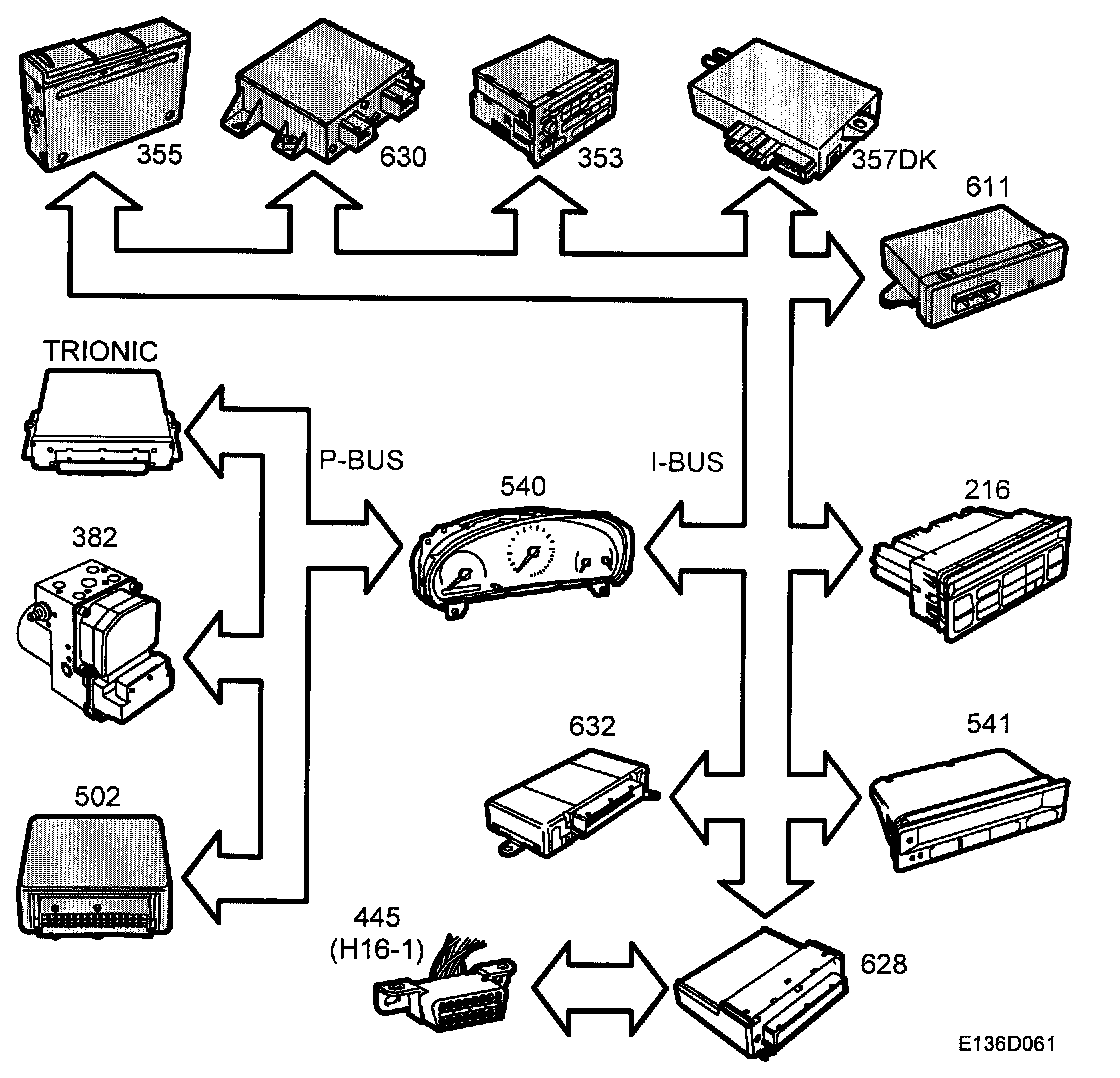

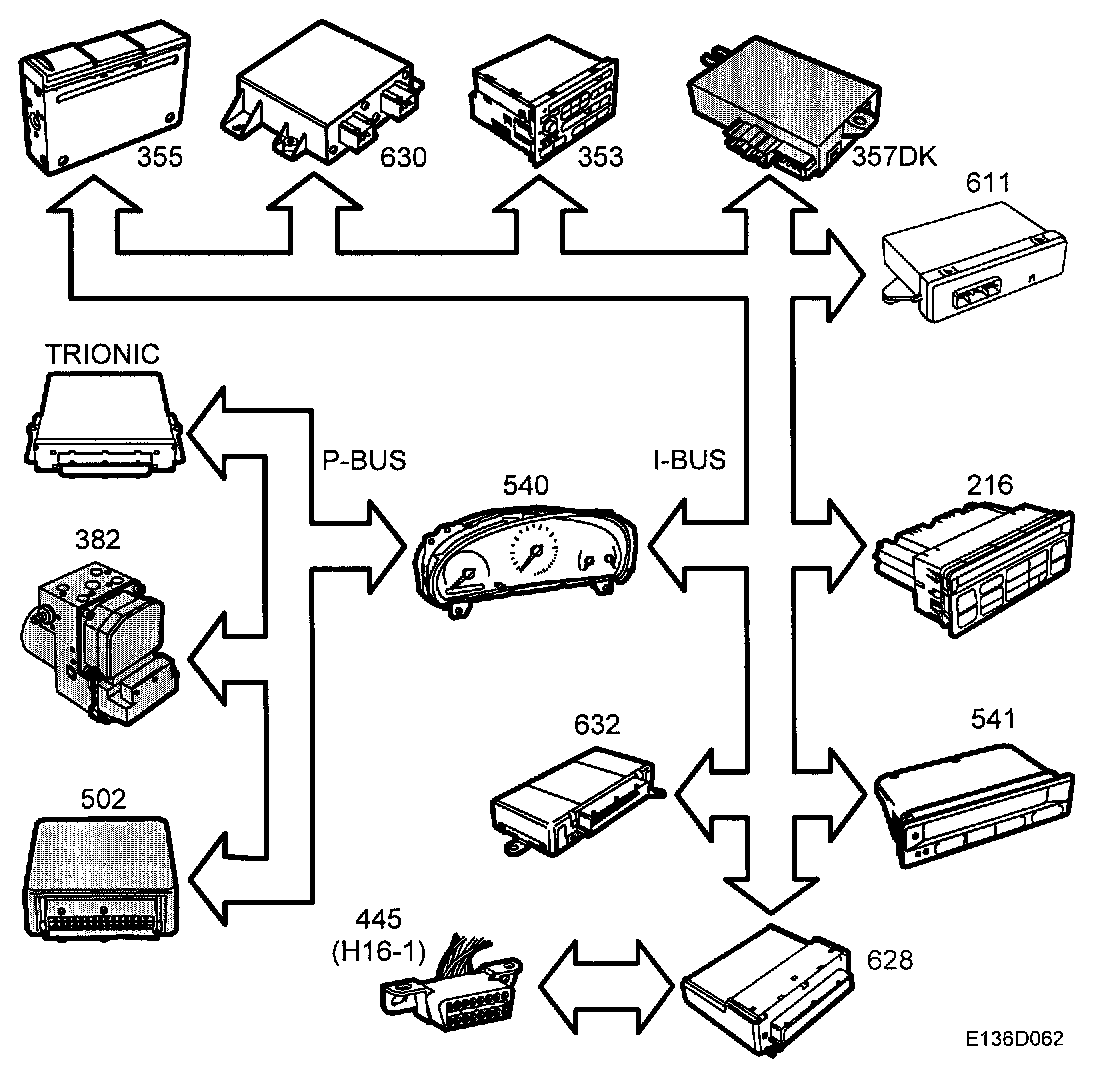

^ DICE - is connected to the instrument bus (I-BUS) and consequently receives, processes and sends information (communicates) over the bus with other systems (control modules) in the car that are connected to the bus.
^ DICE - has an internal diagnostic function and diagnostic trouble codes are generated in case of faults.
^ DICE - is programmable. Certain functions can be programmed to meet with legal requirements, market demands, customer requirements and the car's equipment. Bus Communication

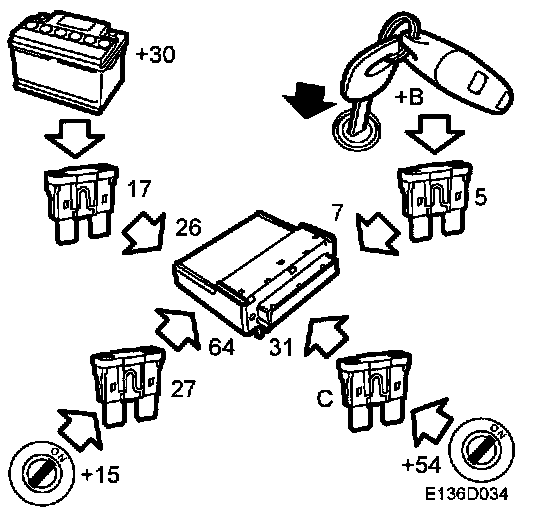

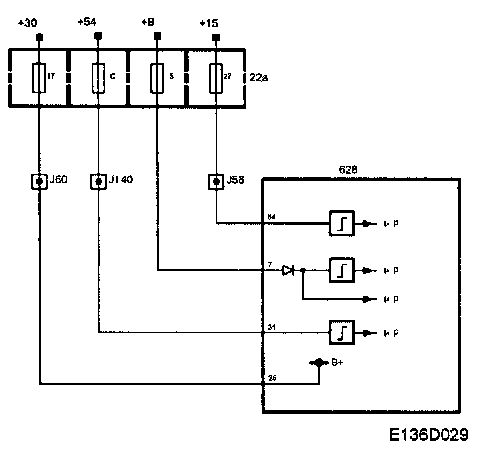

Control module power supply





Power supply (+B circuit)
From fuse 5 (22a) to control module, pin 7.
Power supply (+15 circuit)
From fuse 27 (22a) to control module, pin 64.
Power supply (+30 circuit)
From fuse 17 (22a) to control module, pin 26.
Power supply (+54 circuit)
From fuse C (22a) to control module, pin 31.

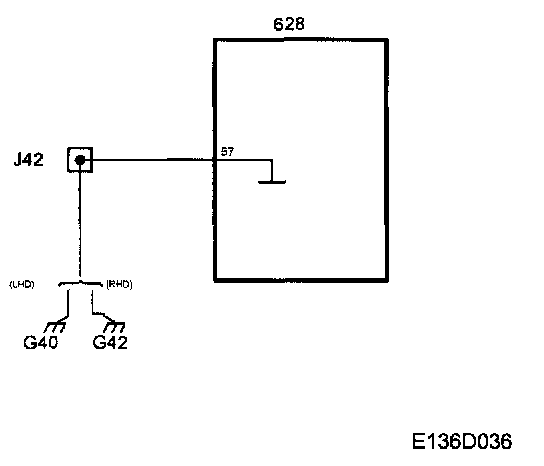

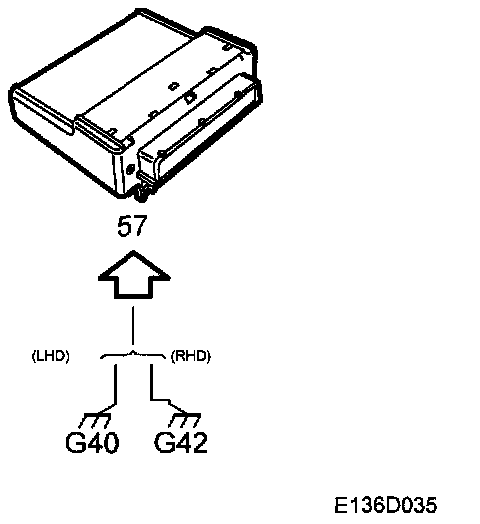

Control module ground





Ground connection
Control module grounded at grounding point G40 (LHD) and G42 (RHD) via pin 57.
