Air Cleaner Housing: Service and Repair

Air cleaner casing/air intake pipe





To Remove

1 Remove the front grille and right-hand front light cluster.

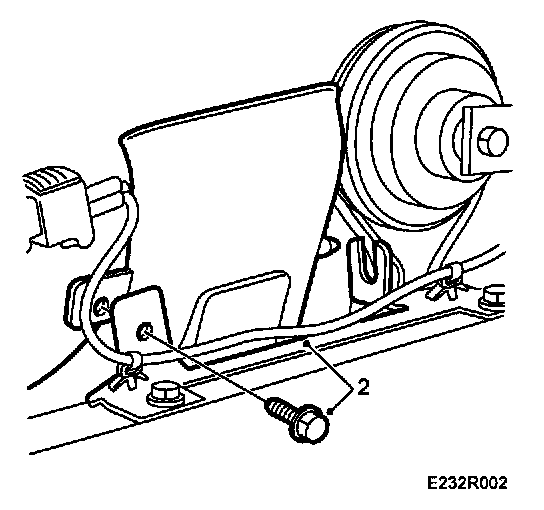

2 Remove the bracket for the air intake pipe.

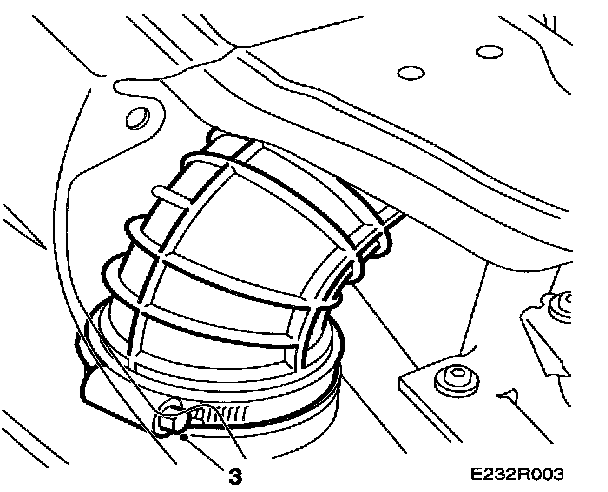

3 Disconnect the air hose from the air cleaner casing.
4 Raise the car.

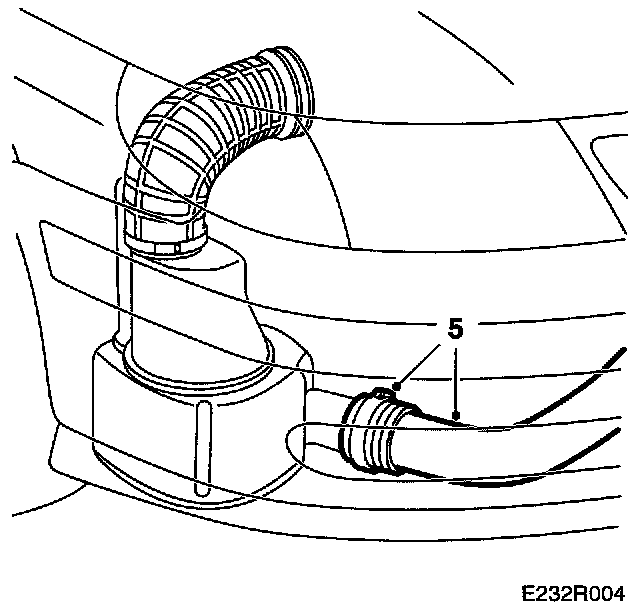

5 Detach the air intake pipe.
6 Remove the lower front cover.

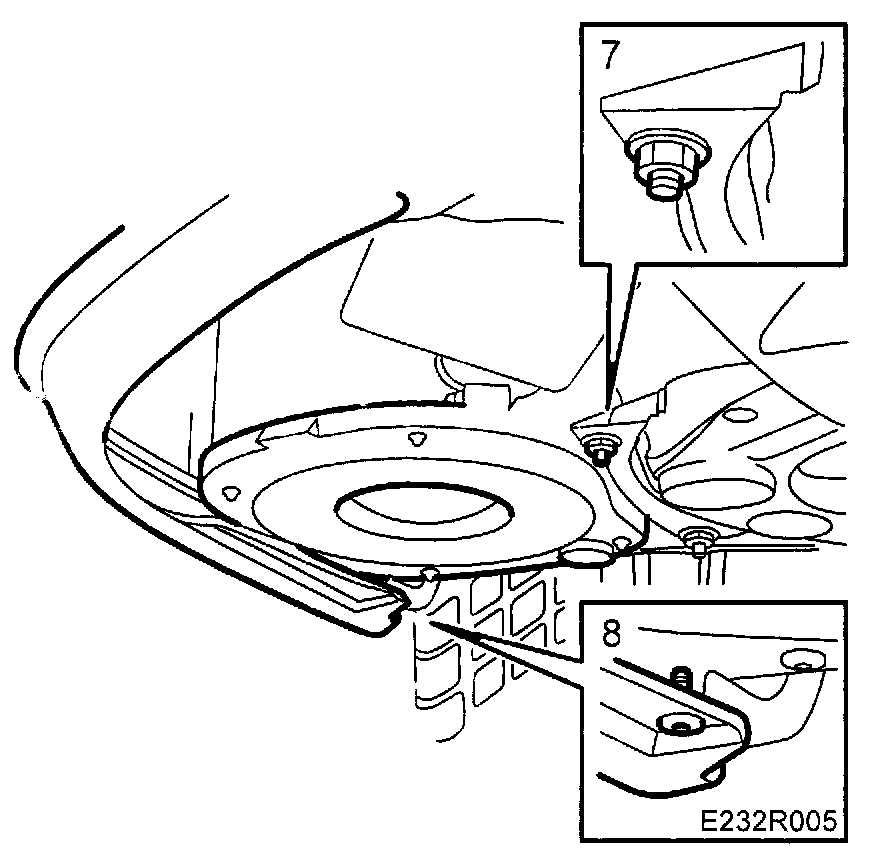

7 Undo the air cleaner casing's lower mounting and lower away the casing.
8 Remove the lower spoiler section and then lower away the air intake pipe.

To fit
Fit in reverse order.
