Trunk Lamp

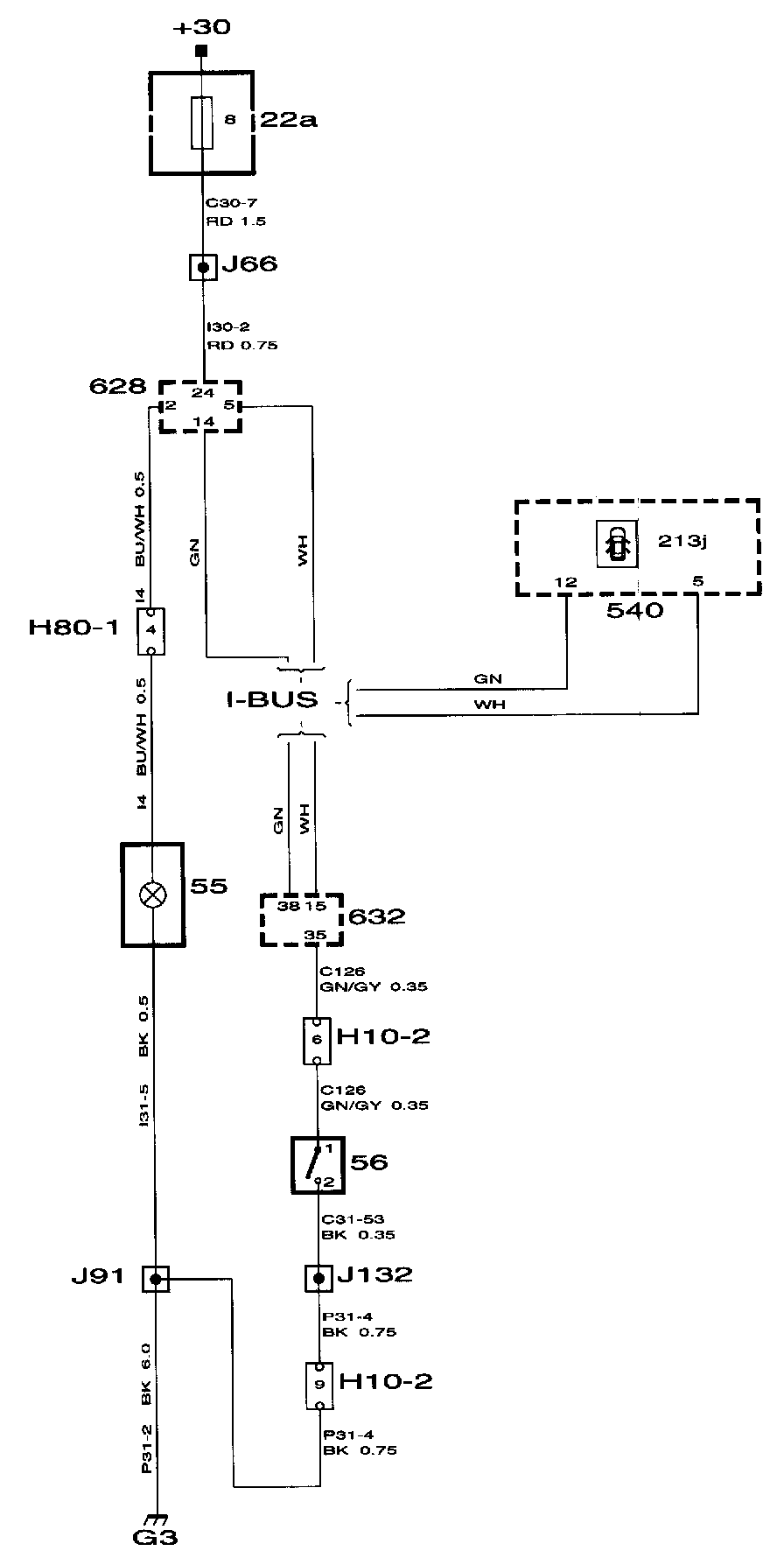

Luggage Compartment Lighting Wiring Diagram

Components
22a Main fuse board on side of dashboard
55 Luggage compartment lighting under parcel shelf
56 Luggage compartment light switch by lock in boot lid
540 Main instrument unit in the dashboard in front of the driver
628 DICE control module on main relay board in dashboard
632 TWICE control module under LH seat

Connectors
H10-2 Between rear LH light cluster and boot lid
H80-1 In connector bracket under LH A-pillar

Crimp connections
J66 (LHD) Approx. 60 mm from DICE branching point towards steering wheel switches
J66 (RHD) Approx. 100 mm from MIU (20-pin connector) branching point towards DICE
J91 Approx. 30 mm from grounding point G3 branching point towards rear LH light cluster

Grounding points
G3 In luggage compartment under LH light cluster
