System Diagram

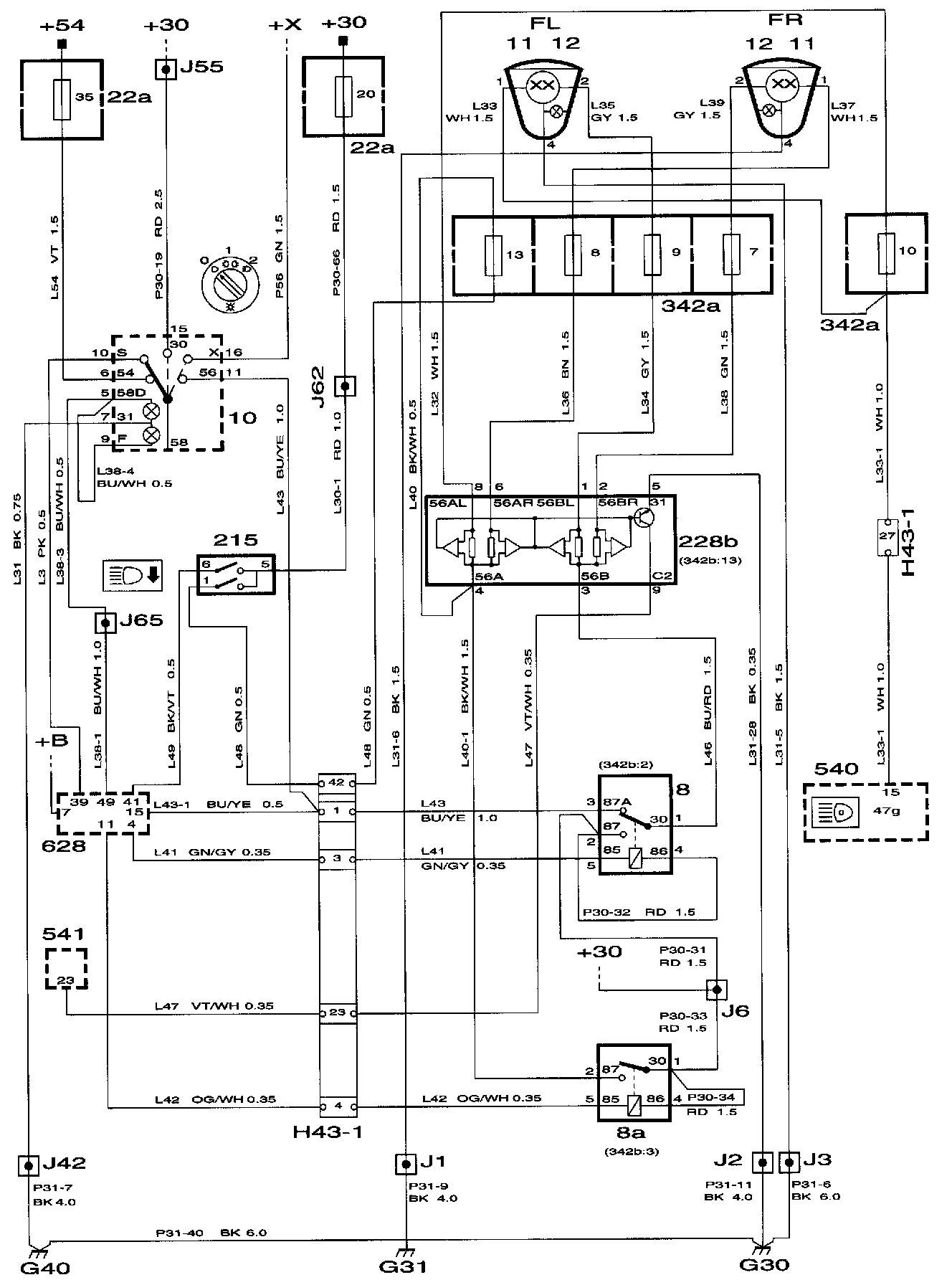

Headlamps (Main and Dipped Beams) Wiring Diagram

Components
8 Headlamp relay on main relay board in the engine bay
8a Dipswitch relay on main relay board in the engine bay
10 Lights switch on dashboard between steering wheel and driver's door
11 Main beam lamp in headlamp
12 Dipped beam lamp in headlamp
22a Main fuse board on side of dashboard by driver's door
215 Dipswitch on RH side of steering column
228b Filament monitor for front lamps in main relay board in engine bay
540 Main instrument unit in the dashboard in front of the driver
541 SID in centre of dashboard
628 DICE control module on main relay board in dashboard

Connectors
H43-1 White connector in connector bracket under LH A-pillar

Crimp connections
J1 Approx. 160 mm from grounding point G31
J2 Approx. 50 mm from grounding point G30 branching point towards ABS
J3 Approx. 100 mm from grounding point G30 branching point towards ABS control module
J6 In main fuse box in engine bay approx. 20 mm from branching point to relays
J42 (LHD) Approx. 50 mm from grounding point G40 branching point towards light switch
J42 (RHD) Approx. 200 mm from light switch branching point towards grounding point G42
J55 (LHD) Approx. 125 mm from DICE branching point towards H43-1
J55 (RHD) Approx. 130 mm from grounding point G42 branching point towards DICE
J62 (LHD) Approx. 400 mm from connector to windscreen wiper stalk switch
J62 (RHD) Approx. 280 mm from connector to windscreen wiper stalk switch
J65 (LHD) Approx. 40 mm from MIU (20-pin connector) branching point towards its 12-pin connector
J65 (RHD) Approx. 210 mm from MIU (12 pin connector) branching point towards the heater housing

Grounding points
G30 On left-hand side of the structural member behind the headlamp
G31 On RH structural member behind headlamp
G40 In cabin on LH side of knee member
