Headlamp Alignment Actuator

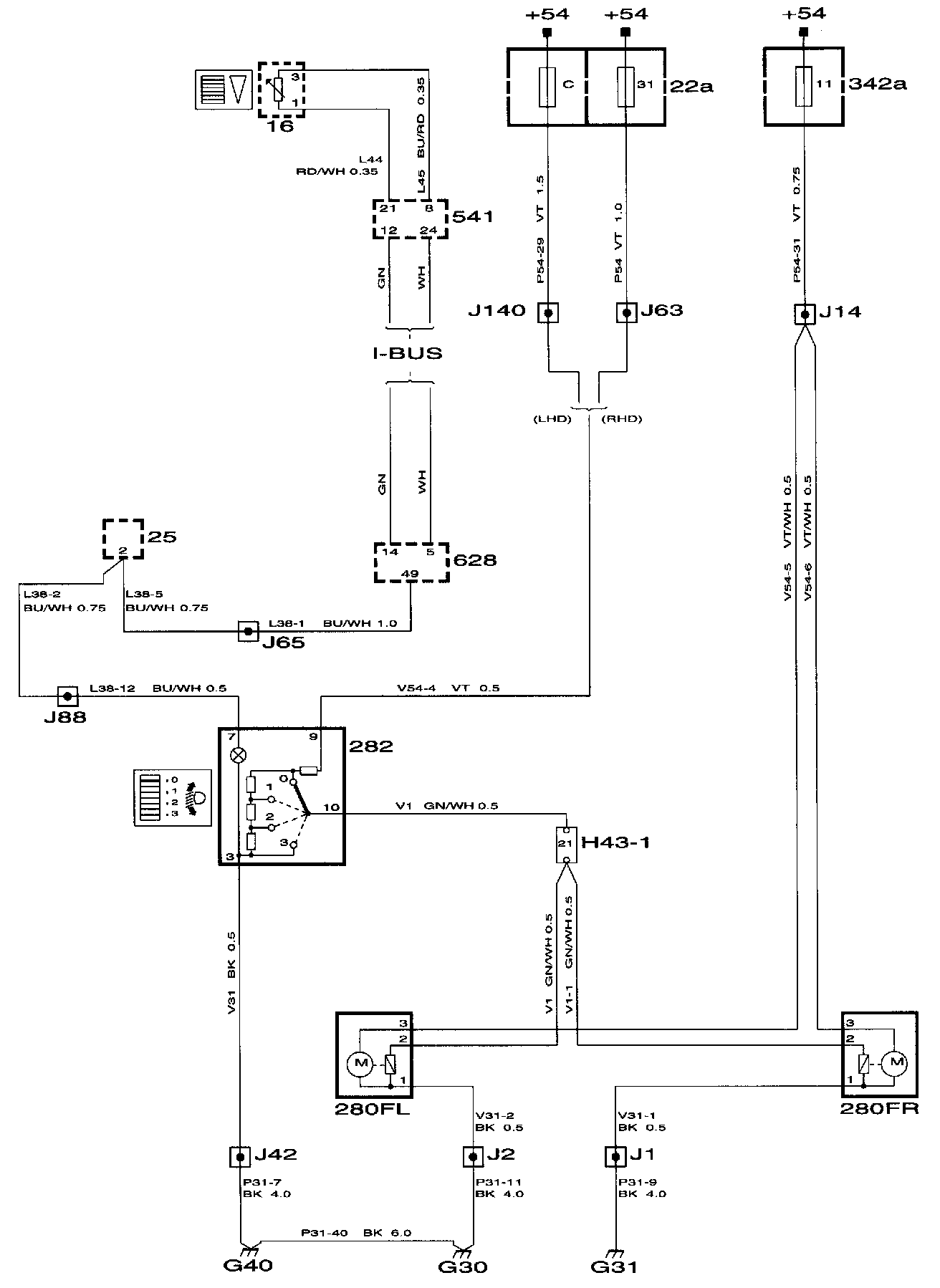

Headlamp Beam-Length Adjustment Wiring Diagram

Components
22a Main fuse board on side of dashboard
16 Rheostat for instrument lighting
25 Switch for hazard flashers
280FL Motor for headlamp beam length adjustment on rear of LH headlamp
280FR Motor for headlamp beam adjustment on rear of RH headlamp
282 Headlamp beam adjustment switch
342a Main fuse board behind battery
541 SID in centre of dashboard
628 DICE control module on main relay board in dashboard

Connectors
H43-1 White connector in connector bracket under LH A-pillar

Crimp connections
J1 Approx. 150 mm from grounding point G31 branching point
J2 Approx. 50 mm from grounding point G2 branching point towards ABS control module
J14 In main fuse box in engine bay approx. 20 mm from rubber grommet
J63 (LHD) Approx. 10 mm from DICE branching point towards steering wheel switches
J63 (RHD) Approx. 210 mm from MIU (20-pin connector) branching point towards DICE
J65 (LHD) Approx. 40 mm from MIU (20-pin connector) branching point towards its 12-pin connector
J65 (RHD) Approx. 210 mm from MIU (12 pin connector) branching point towards the heater housing
J140 (LHD) Approx. 60 mm from LH speaker branching point in dashboard towards main fuse board
J140 (RHD) Approx. 30 mm from grounding point G42 branching point towards DICE
J142 (LHD) Approx. 30 mm from DICE branching point towards steering wheel switches
J142 (RHD) Approx. 105 mm from grounding point G42 branching point towards DICE
J88 (LHD) Approx. 10 mm from grounding point G41S branching point towards SID
J88 (RHD) Approx. 90 mm from hazard flasher switch branching point towards MIU

Grounding points
G30 On side plate in front of LH wheel housing
G31 On RH structural member behind headlamp
G40 In cabin on LH side of knee member
