System Diagram

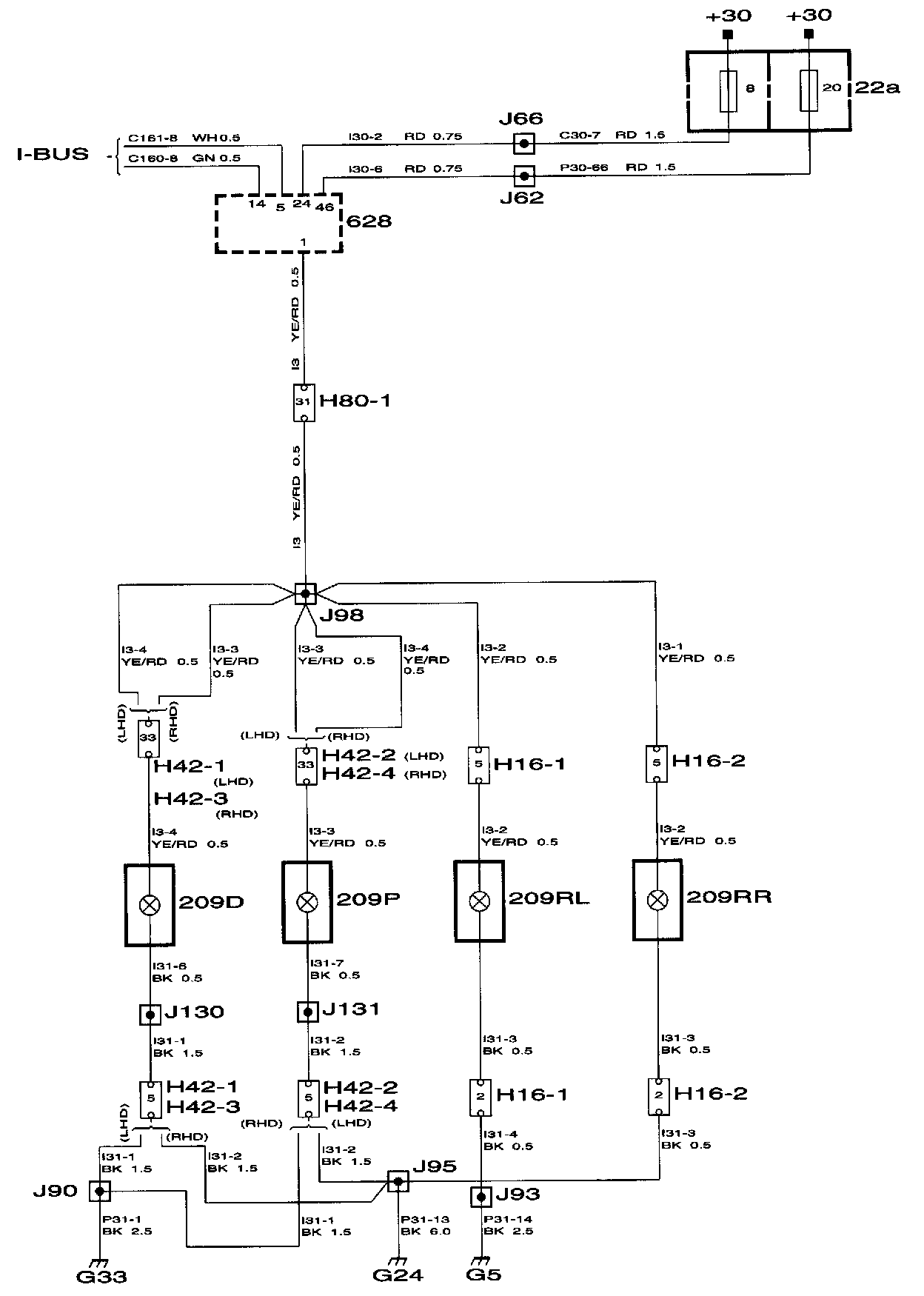

Courtesy Lights Wiring Diagram

Components
22a Main fuse board on side of dashboard
209D Courtesy light on bottom edge of driver's door trim
209P Courtesy light on bottom edge of passenger door trim
209RL Courtesy light on bottom edge of rear LH door trim
209RR Courtesy light on bottom edge of rear RH door trim
628 DICE control module on main relay board in dashboard

Connectors
H16-1 In left-hand B pillar
H16-2 In right-hand B pillar
H42-1 On front edge of driver's door
H42-2 On front edge of passenger door
H42-3 On front edge of driver's door
H42-4 On front edge of passenger door

Crimp connections
J62 (LHD) Approx. 400 mm from connector to windscreen wiper stalk switch
J62 (RHD) Approx. 280 mm from connector to windscreen wiper stalk switch
J66 (LHD) Approx. 60 mm from DICE branching point towards steering wheel switch
J66 (RHD) Approx. 100 mm from MIU (20-pin connector) branching point towards DICE
J90 Approx. 50 mm from grounding point G33 branching point towards LH side direction indicators
J93 Approx. 20 mm from rear end of rear RH door floor duct towards grounding point G5
J95 Approx. 150 mm from RH seat branching point towards rear RH door
J98 Approx. 180 mm from connector h43-2 branching point towards front LH door
J130 Approx. 90 mm from rear-view mirror branching point towards central locking system
J131 Approx. 90 mm from rear-view mirror branching point towards central locking system

Grounding points
G5 Under LH corner of rear seat
G25 On the gearbox
G33 In cabin under LH A-pillar
