Reversing Lights, Manual Gearbox

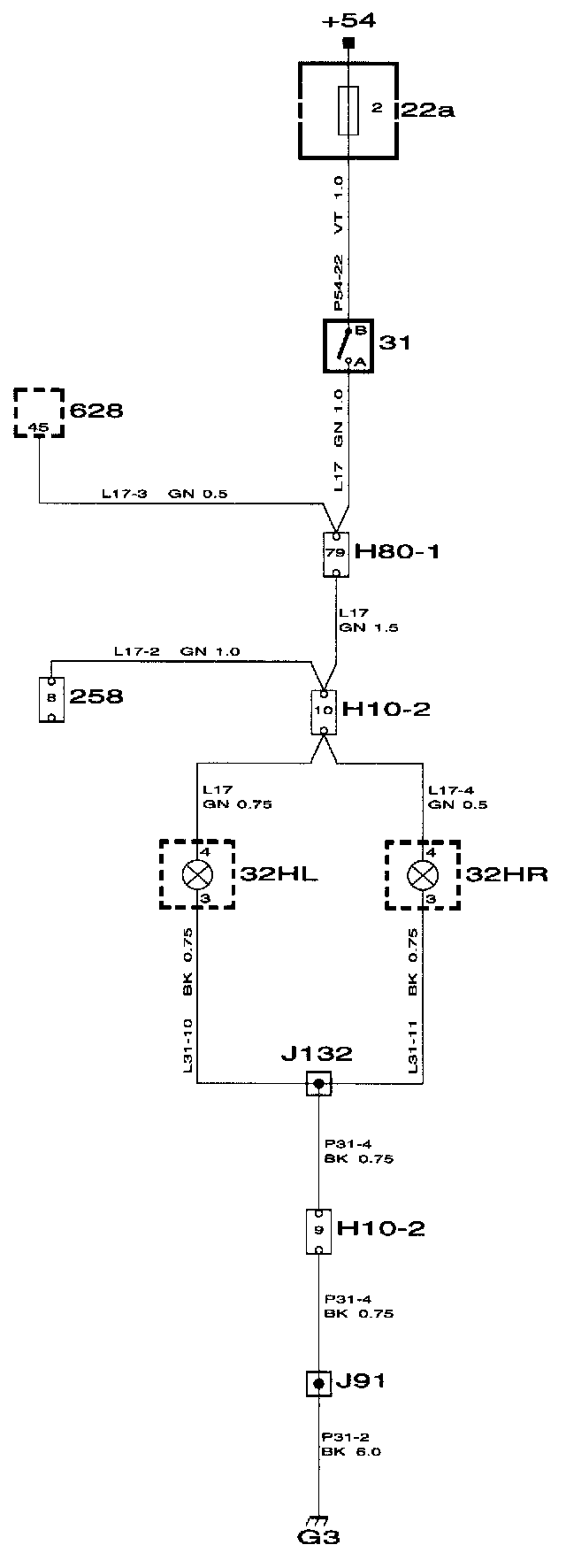

Reversing Lights, Manual Gearbox Wiring Diagram

Components
22a Main fuse board on side of dashboard
31 Reversing light switch on gearbox
32HL Lamp, LH reversing light, in LH lamp on boot lid
32HR Lamp, RH reversing light, in RH lamp on boot lid
258 Connector, trailer connector in luggage compartment on RH side of rear plate
628 DICE control module on main relay board in dashboard

Connectors
H10-2 Between rear LH light cluster and boot lid
H80-1 In connector bracket under LH A-pillar

Crimp connections
J91 Approx. 30 mm from grounding point G3 branching point towards rear LH light cluster
J132 Approx. 30 mm from central locking system branching point towards number plate lighting

Grounding points
G3 In luggage compartment under LH light cluster
