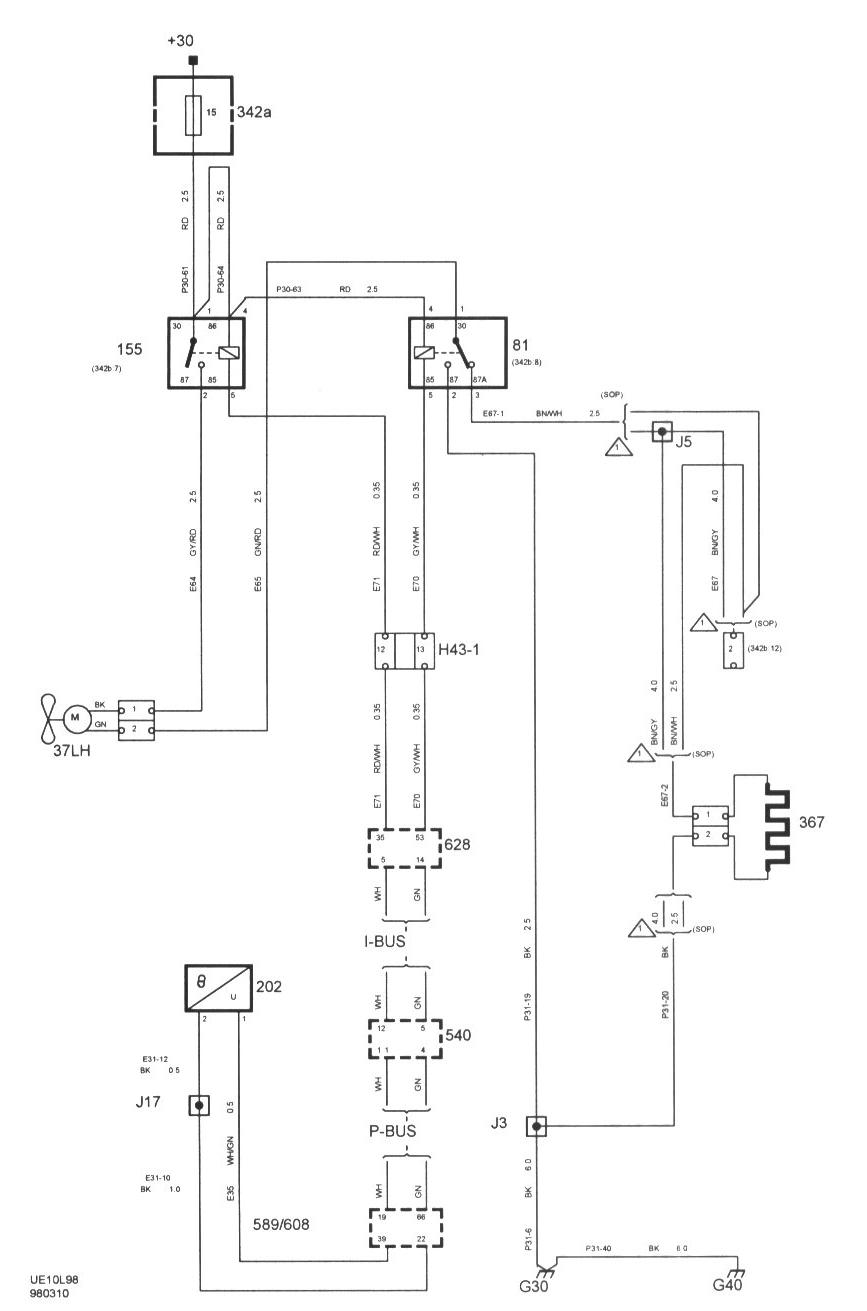

Wiring Diagram


One radiator fan

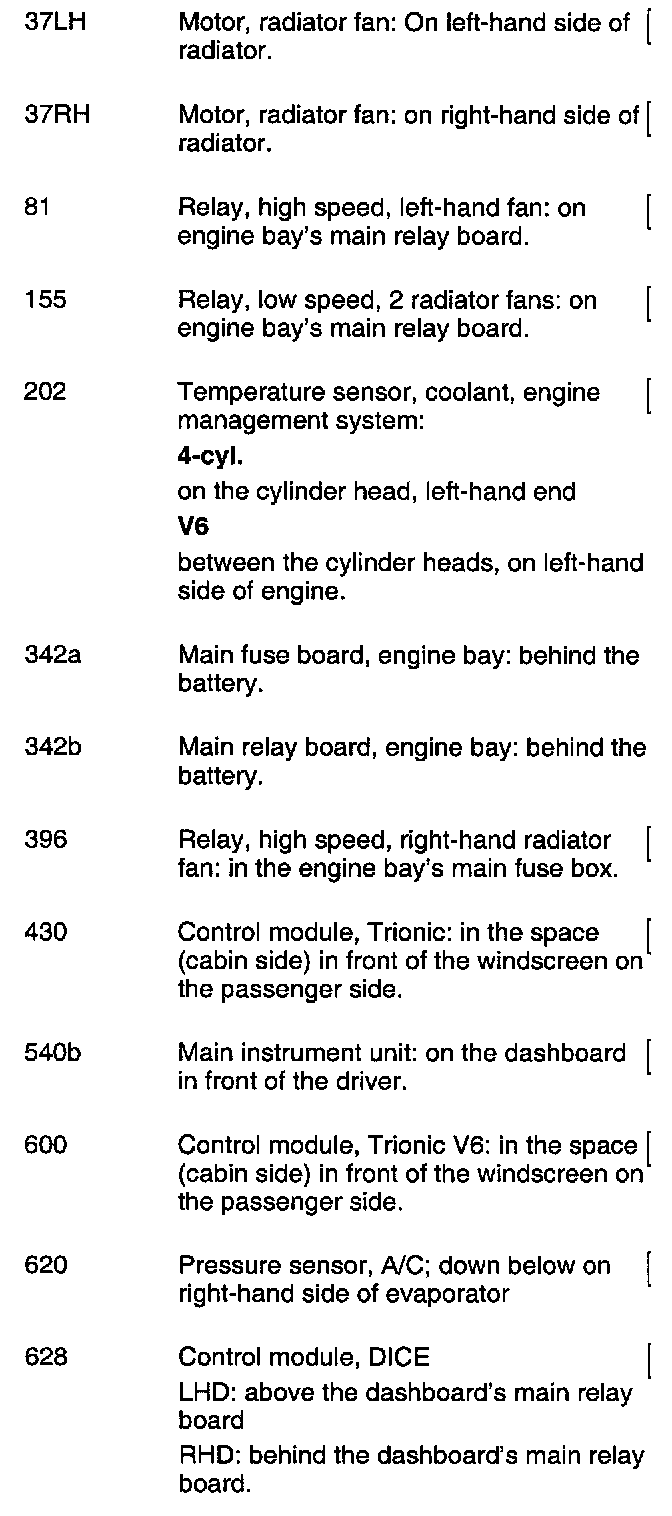

List of components Part 1 of 2

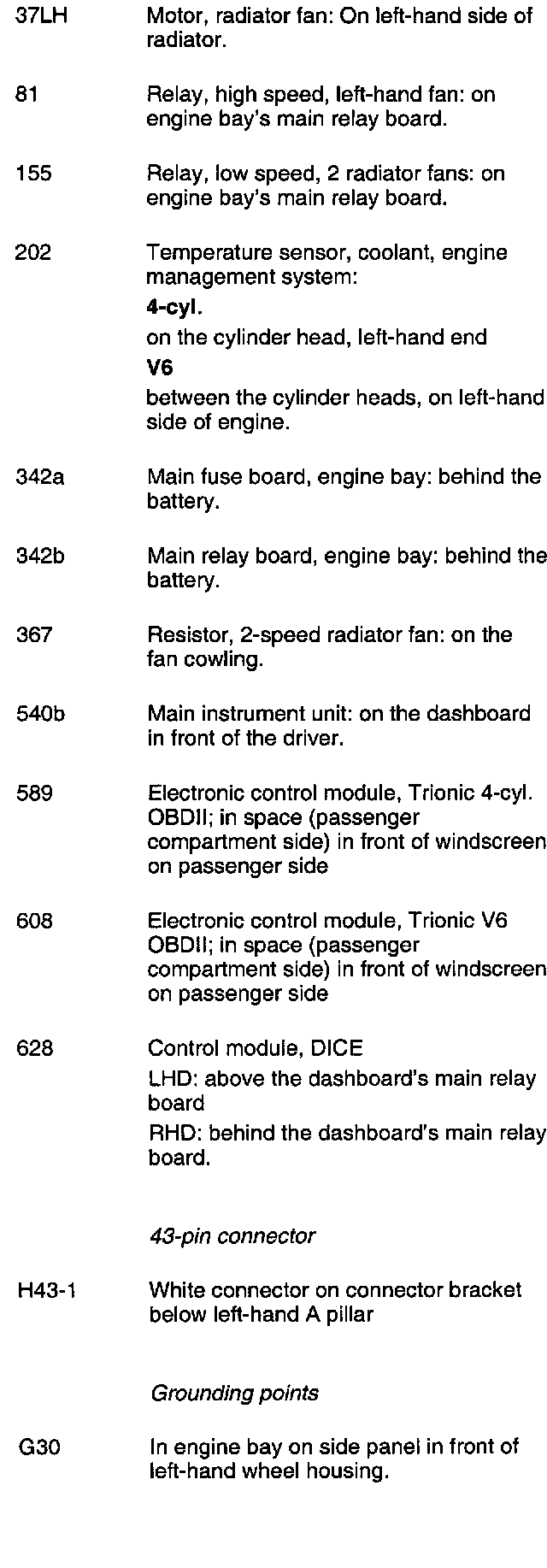

List of components Part 2 of 2

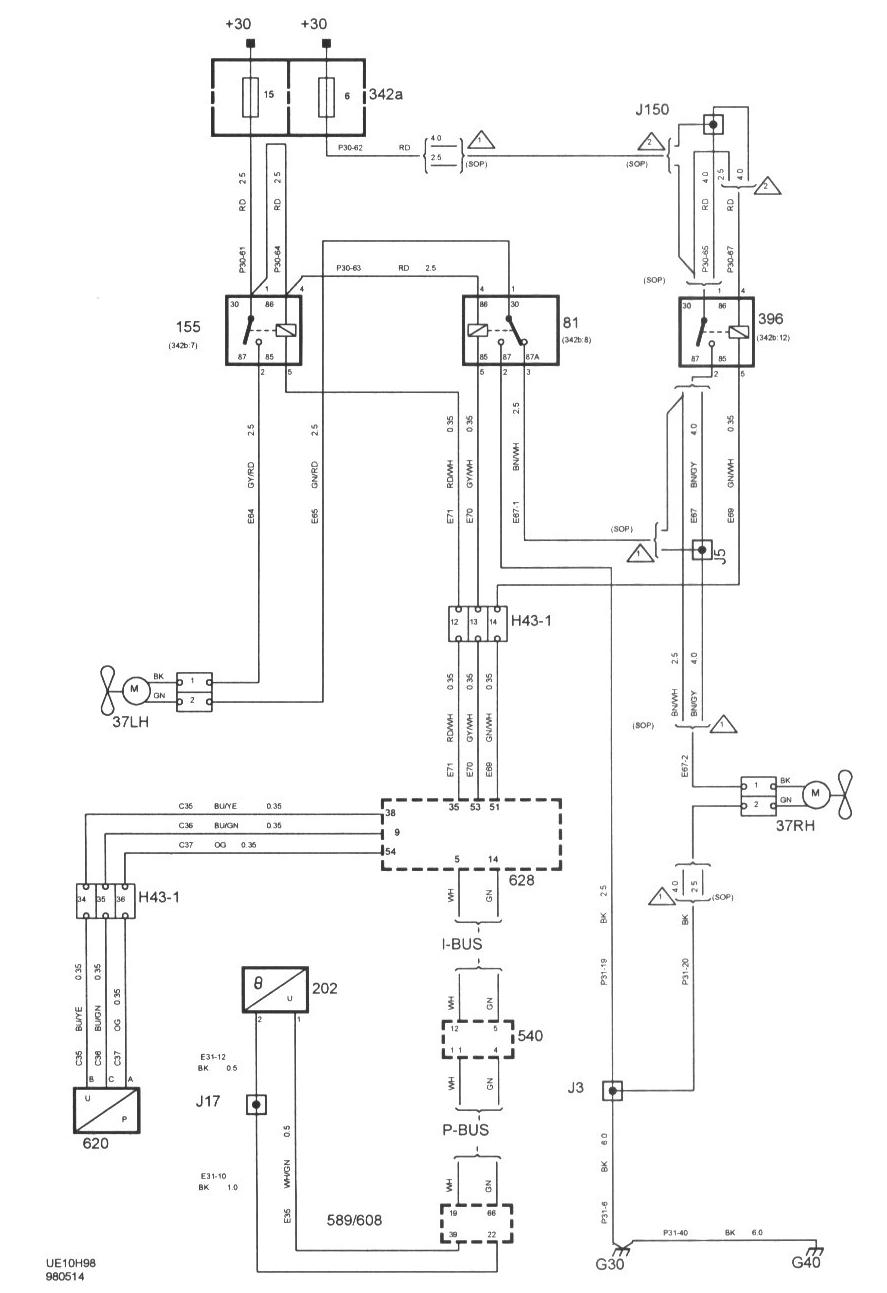

Wiring Diagram

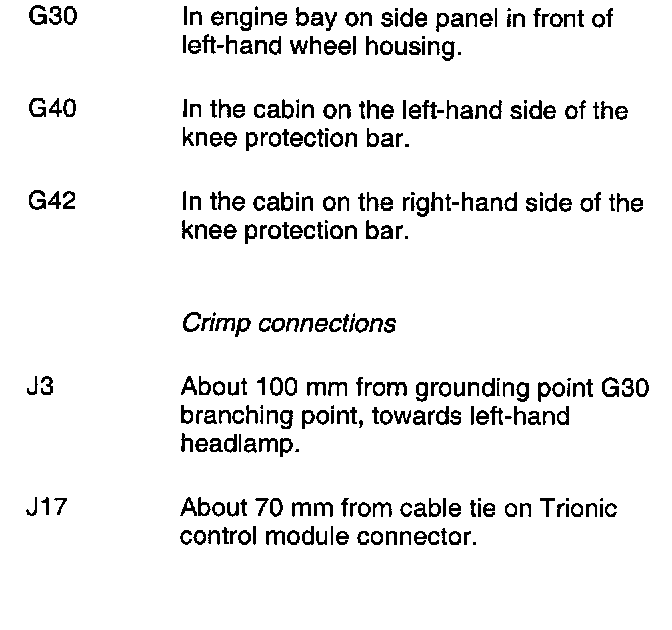

List of components (US/CA) Part 1 of 2

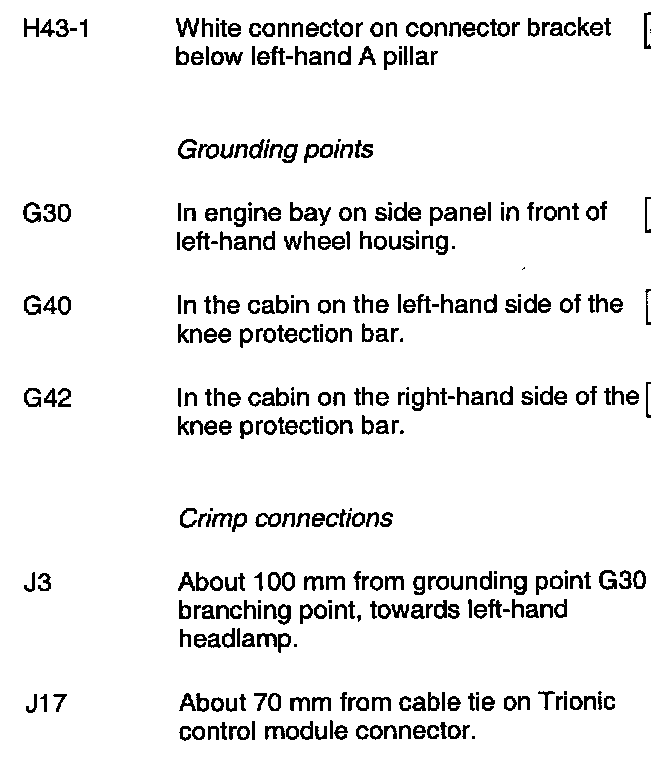

List of components (US/CA) Part 2 of 2





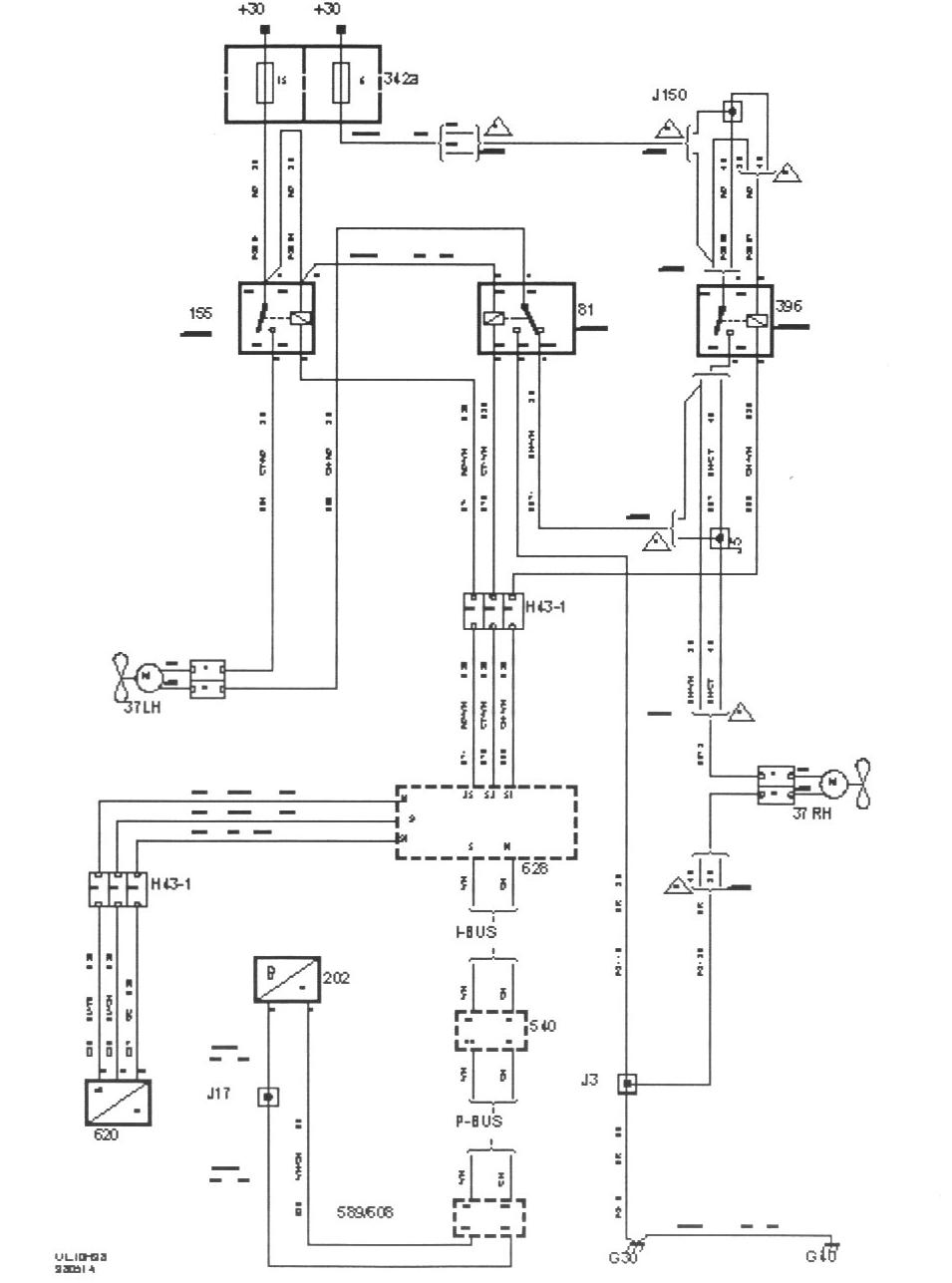

Wiring diagram (US/CA)

Two radiator fans

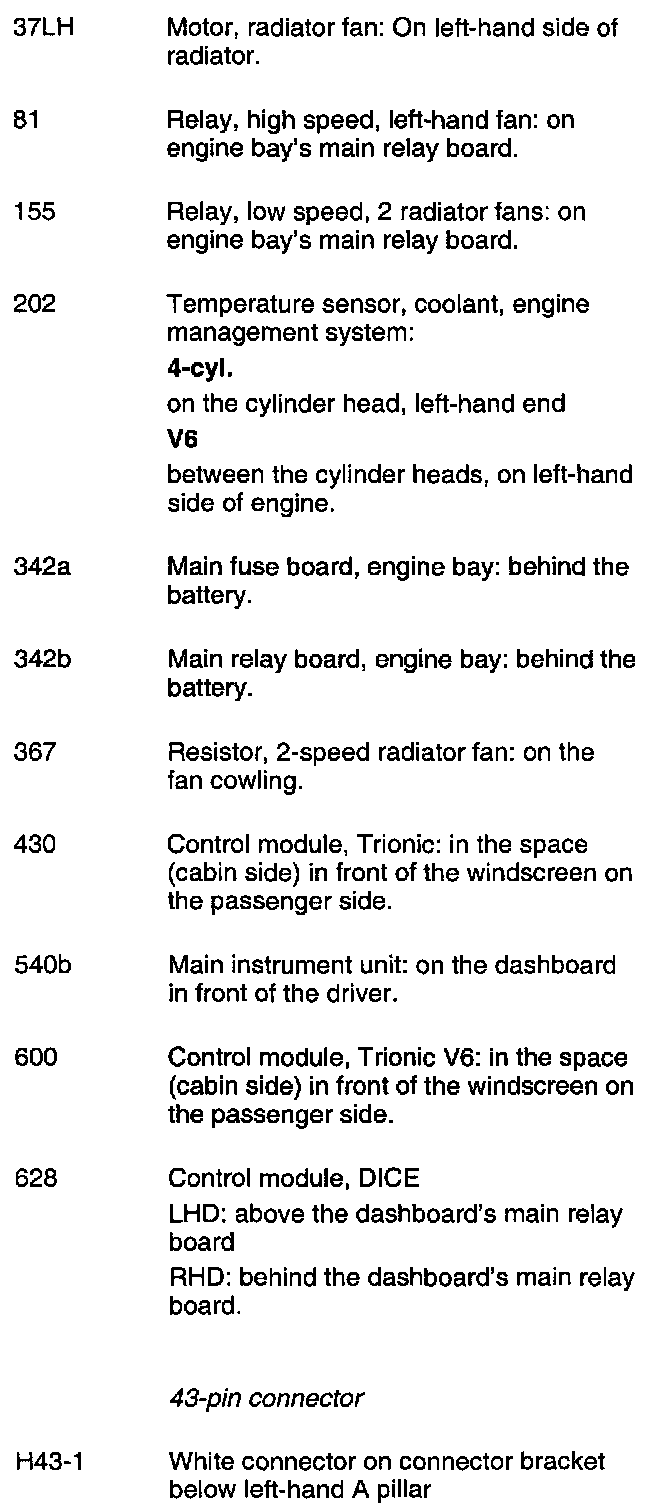

List of components Part 1 of 2





List of components part 2 of 2

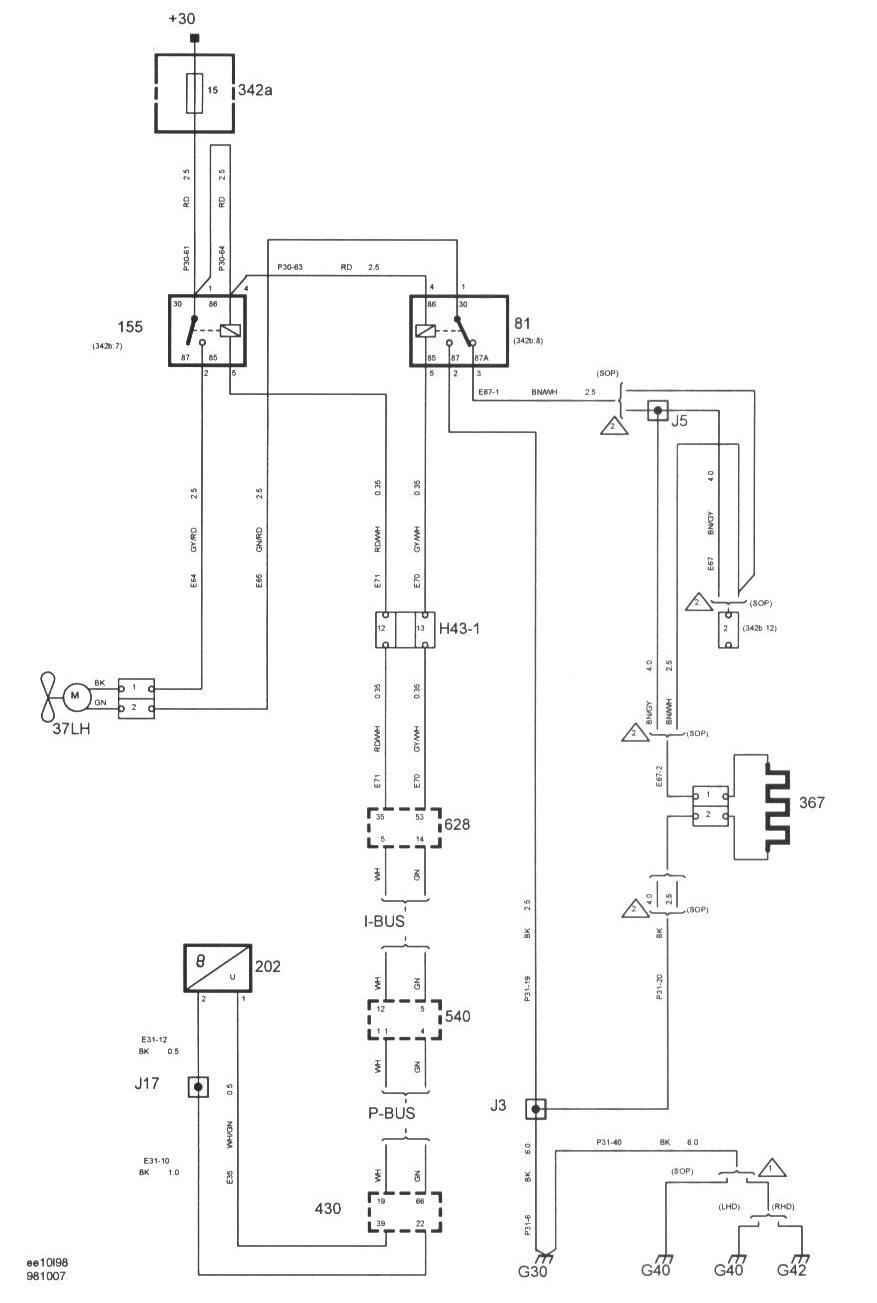

Wiring diagram





List of components (US/CA) part 1 of 3





List of components (US/CA) part 2 of 3





List of components (US/CA) part 3 of 3





Wiring diagram (US/CA)
