Checking Control Module Input

Checking Control Module Input

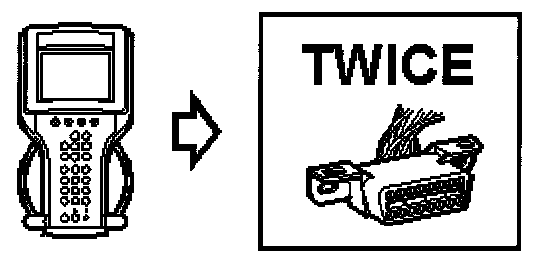

^ Contact TWICE.
^ Read value: Rear Seat Heater Switch (TWICE).

^ Hold down the button for the electrically heated rear seat.

The diagnostic tool's display should show ON.

Is the function correct?

NO ^ Checking the Switch's Power Supply

YES ^ Checking the Relay Power Supply
