Activation of the Electrically Heated Rear Seat

Activation Of The Electrically Heated Rear Seat







^ Turn the ignition switch to the ON position.

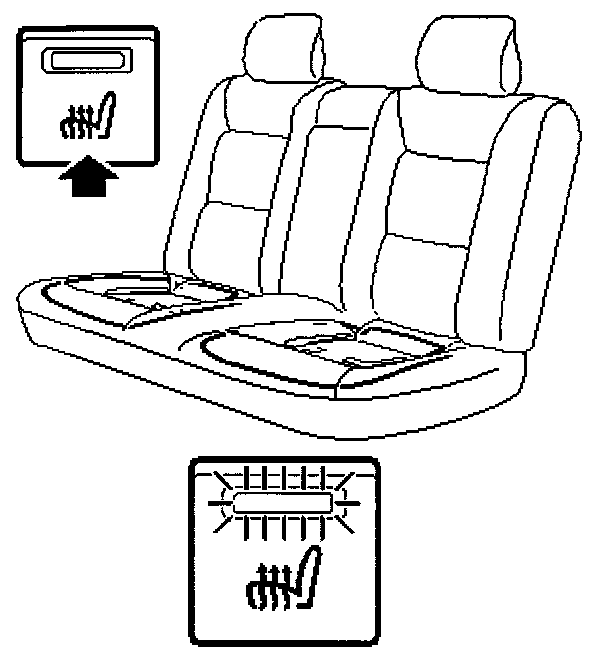

^ Press the button for the electrically heated rear seat.
^ The indicator lamp for the electrically heated rear seat should light.

Is the function correct?

NO ^ Checking Control Module Input

YES ^ Checking the Power Supply For the Heating Pads
