Conditions

Electrically controlled seat cannot be operated when the right rear door is opened





Fault symptoms
The seat cannot be operated when the right rear door is opened and the ignition is off.

Probable cause of fault

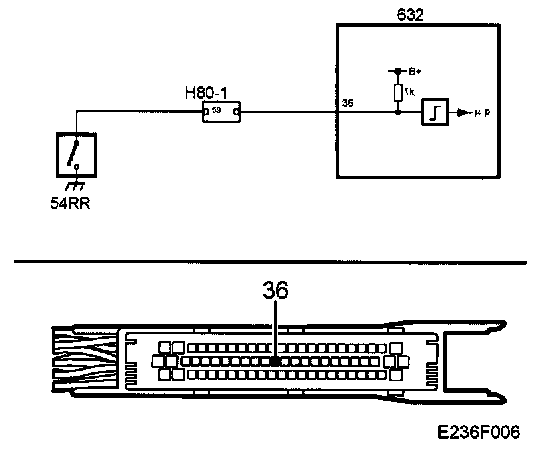

Faulty door contact or faulty lead from door contact to TWICE.

Check the wiring
Move the wiring harness at several locations and in different directions to detect intermittent breaks and short-circuits. Observe the multimeter, test lamp or diagnostic tool during the check.
