Checking the Operation of the Relay

Checking The Operation Of The Relay

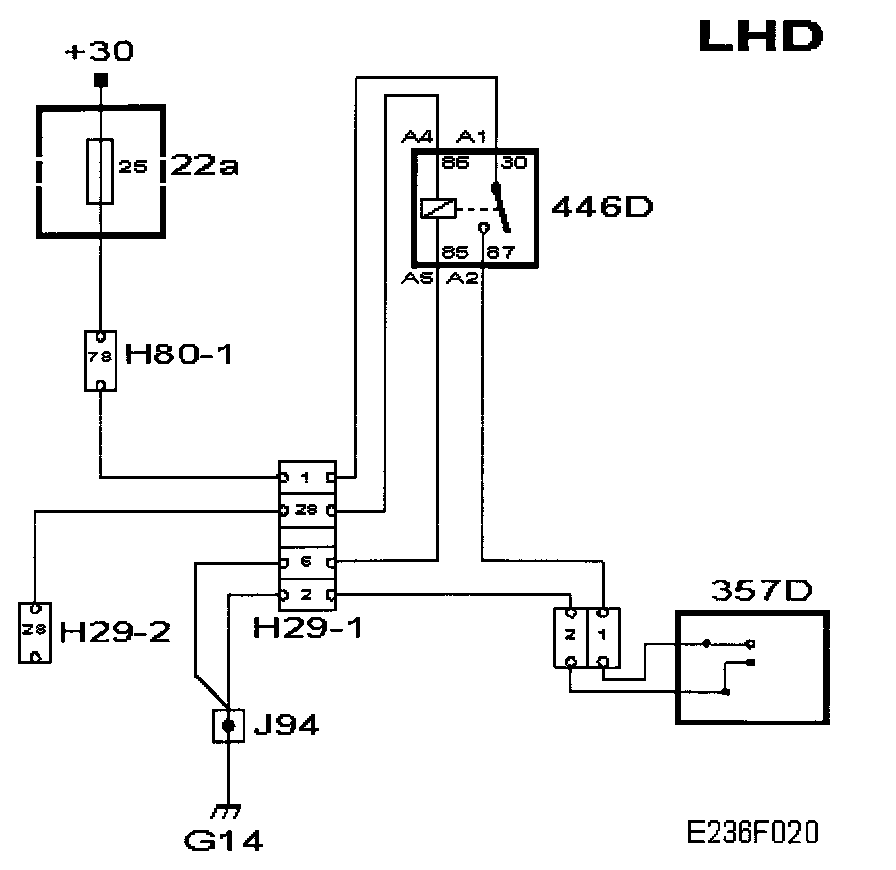

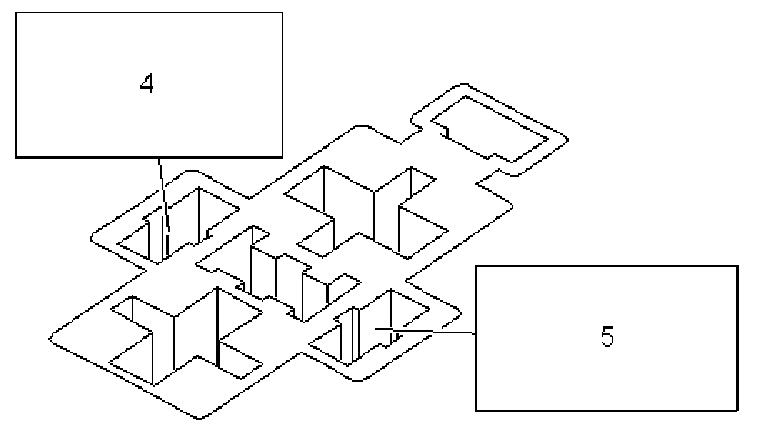

^ Connect a test lamp to terminal 4 and terminal 5 of the relay holder.







^ The test lamp should light.

Checking the wiring harness.
Jiggle the leads and in-line connectors at several places and in different directions to reveal intermittent breaks and short circuits in the wiring harness. Observe the multimeter, test lamp or diagnostic tool while doing this.

Is the function correct?

NO ^ Rectifying the Lead - VII

YES ^ Checking For A Short Circuit to Ground
