Motor and Sensor For Front Height Adjustment, Replacement

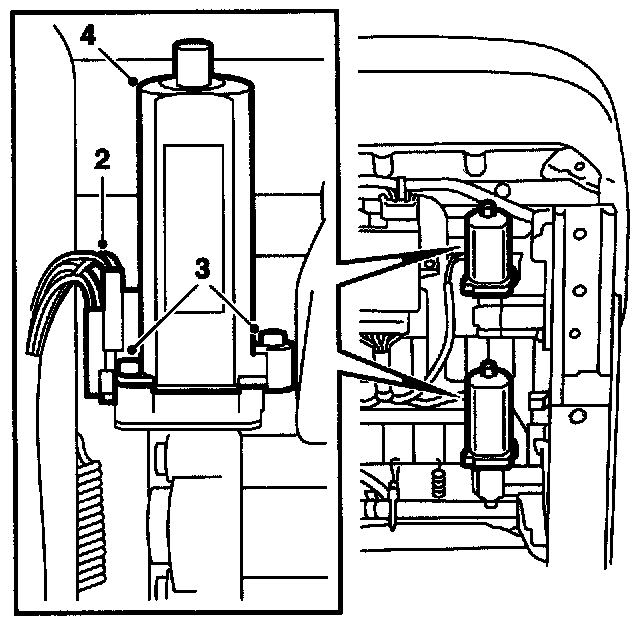

Motor and sensor, front height adjustment

To remove





1 Remove the front seat from the car, refer to "Front Seat Replacement". [1][2]Front Seat
2 Unplug the connector for the height adjustment motor.
3 Unscrew the motor, 2 screws.
4 Lift the motor off the gear wheel.

To fit
Fit in reverse order.
