Fan Resistor Replacement

Fan resistor

To remove






1 Take the front seat out of the car, refer to "Front Seat Replacement". [1][2]Procedures

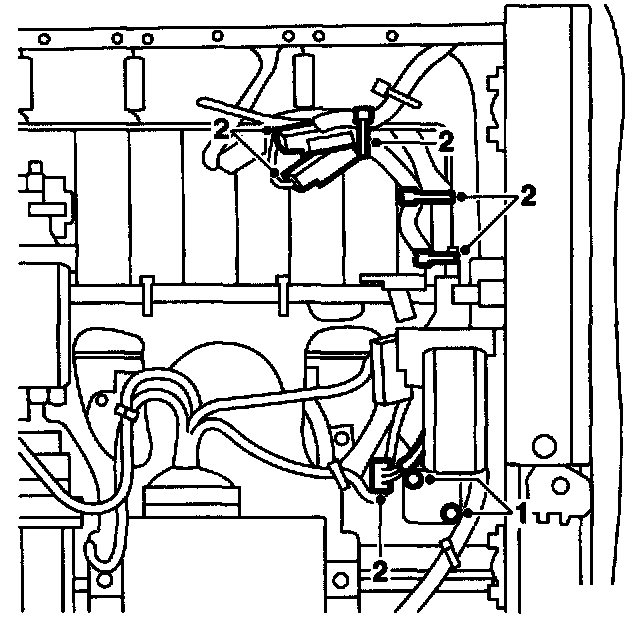

2 Remove the fan resistor, 2 screws.
3 Unplug the connectors (3 x) and cut the cable tie. Lift out the fan resistor.

To fit

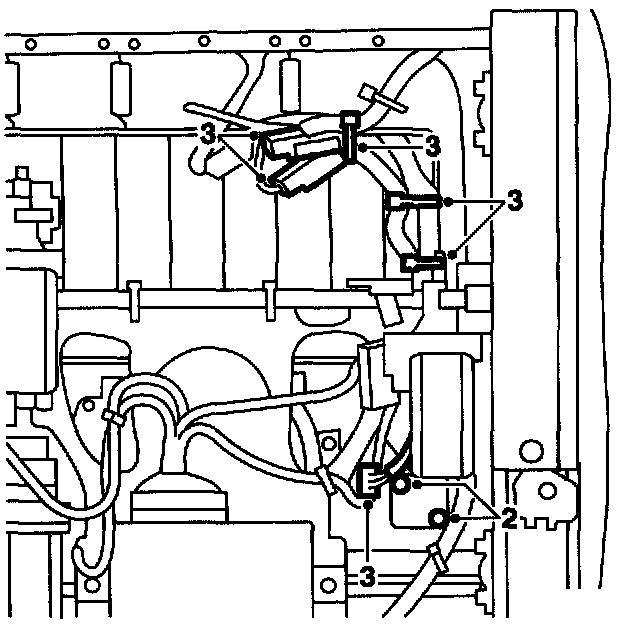

1 Fit the fan resistor, 2 screws.
2 Plug in the connectors (3 x) and secure the wires with cable ties.
3 Replace the front seat in the car.
