Heating Pad, Backrest Replacement

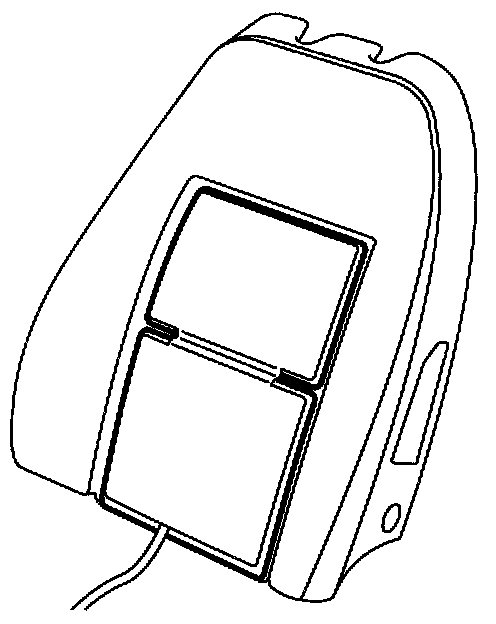

Heating Pad, Backrest

To remove
1 Remove the backrest cover, refer to "Upholstery, Rear Seat Replacement". Service and Repair
There is no need to remove the head restraint or any connectors for the backrest adjustment.
2 Detach the heating pad from the seat cushion using benzine.
Be careful to ensure that large pieces of padding do not come away.

Note: Wear gloves when working with benzine.

3 Unplug the connector for the heating pad.

To fit
Fit in reverse order.

Note: Ensure that the wiring harness sits correctly.
