Fan Motor, Backrest Replacement

Fan motor, backrest

To remove






1 Take the front seat out of the car, refer to "Front Seat Replacement". [1][2]Procedures
2 Undo the straps holding the backrest cover at the bottom.

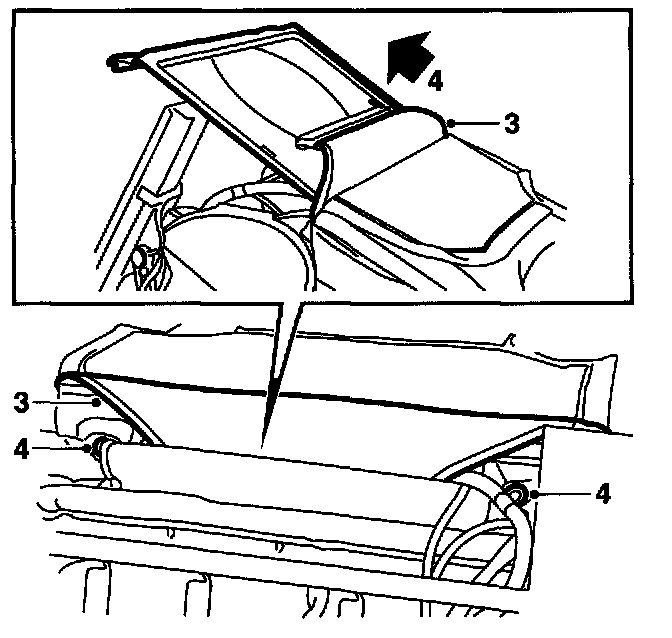

3 Release the upholstery strips on the underside.
4 Undo the 2 screws holding the plastic plate and pull the plate out of the backrest cover.






6 On the backrest fan remove 2 spacer sleeves and 2 nuts.
7 Unplug the connector under the seat and cut the cable tie.
Lift out the fan motor.

To fit






1 Reattach the fan motor to the backrest, 2 nuts and 2 spacer sleeves.
2 Plug in the connector for the fan motor under the seat. Secure with a cable tie.






3 Refit the back of the backrest cover by replacing the upholstery strips along the sides.
4 Insert the plastic plate in the backrest cover and screw firmly on the underside, 2 screws.
5 Replace the upholstery strips on the underside.
6 Fasten the straps on the bottom of the backrest cover under the seat cushion.
7 Refit the front seat into the car, refer to "Front Seat Replacement". [1][2]Procedures
