Interior Rear-View Mirror
Interior Rear-View Mirror
Interior Rear-view Mirror
To remove
1.

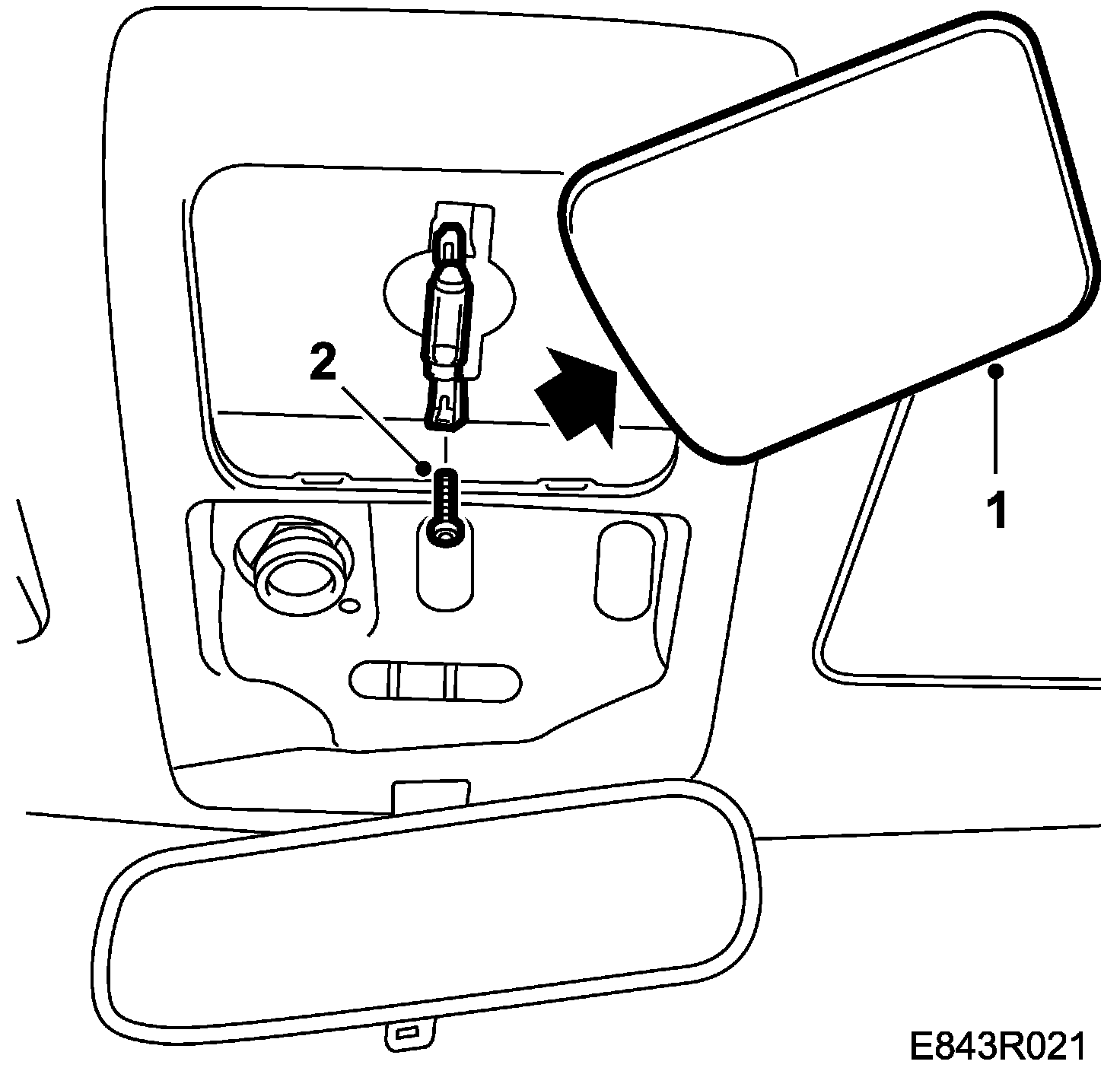

Remove the lamp glass.
2.
Unscrew and remove the screw and cover.
3.

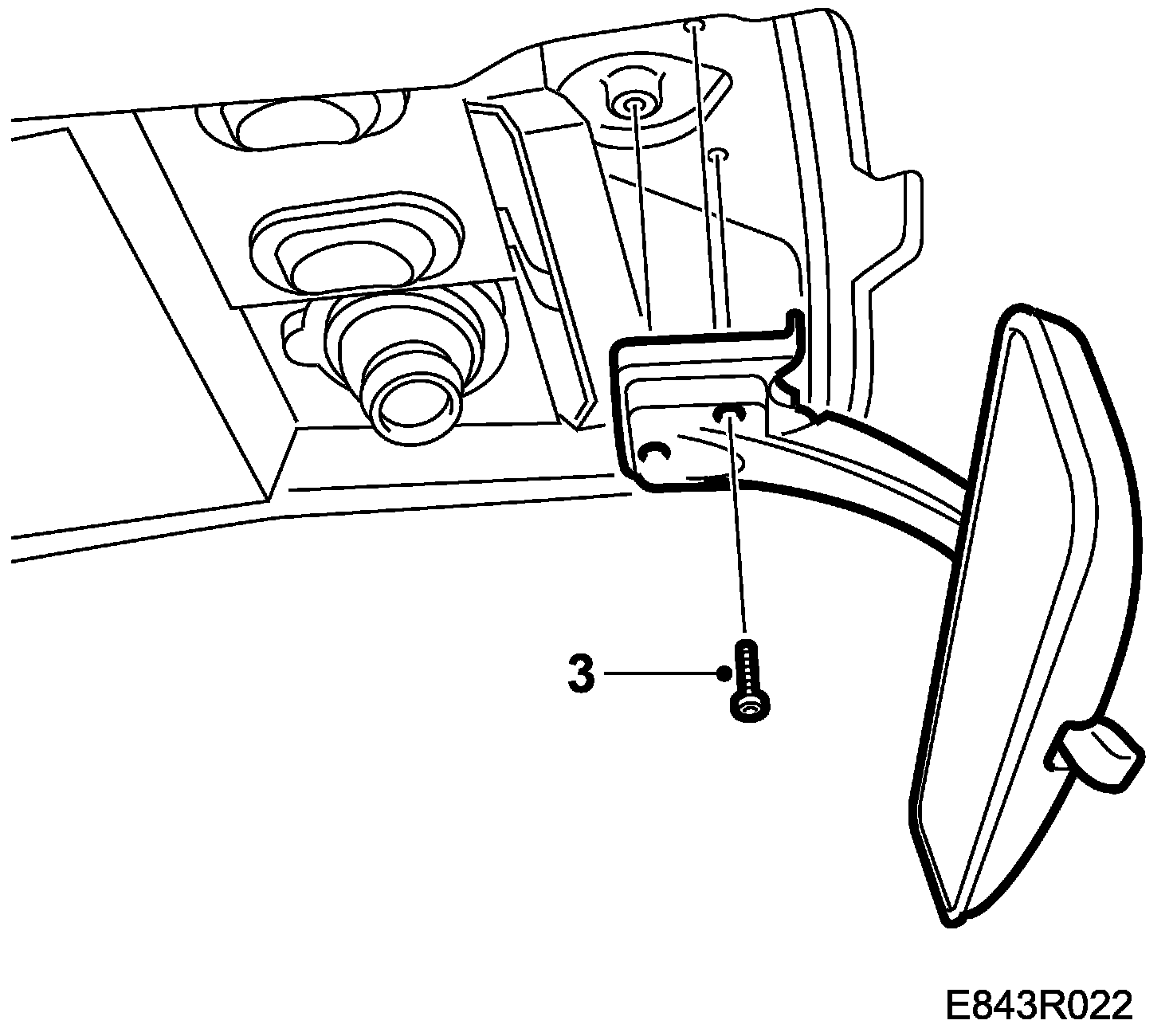

Undo the retaining screws and lift down the mirror.
To fit
Fit in reverse order.
