Int Rear-View W/ Auto Antidazzel Function, Change of Glass

The rear-view mirror does not need to be removed to change the mirror glass. The glass can be removed from the rear-view mirror housing.

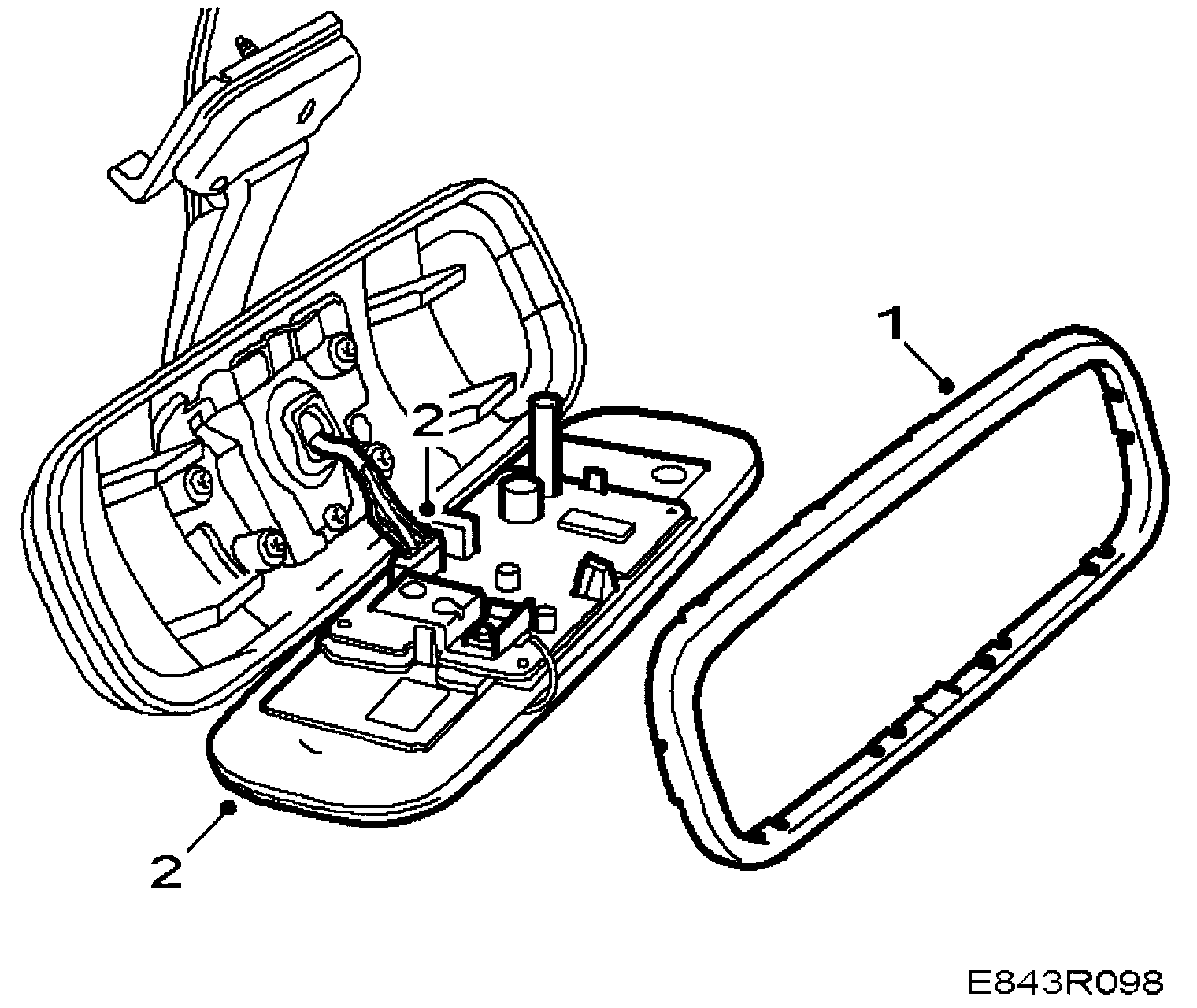

To remove







1 Remove the frame using a small screwdriver. Carefully lever around the whole frame.
2 Remove the glass and unplug the connector.

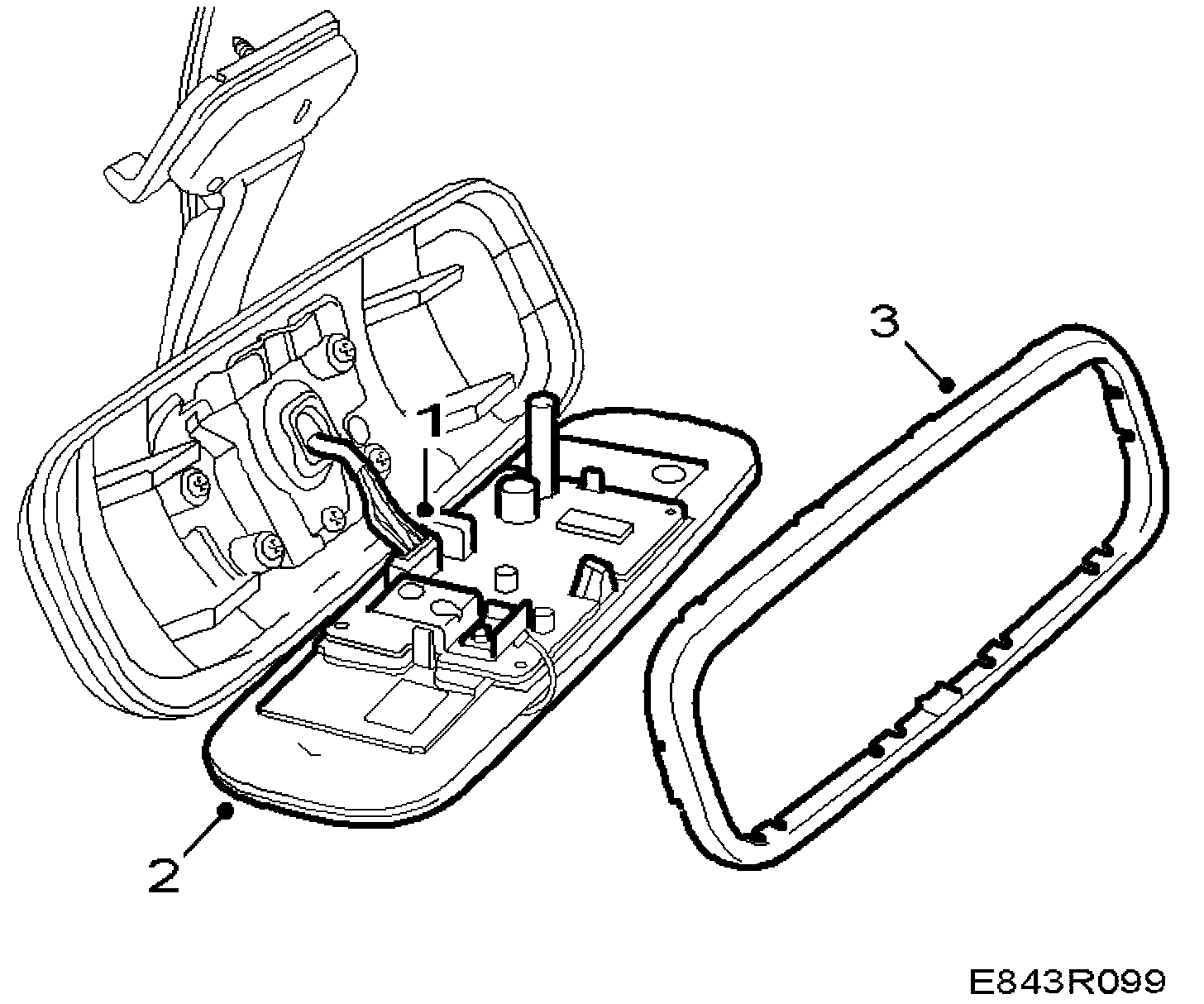

To fit







1 Plug in the connector.
2 Fit the mirror making sure that the forward-facing sensor is correctly positioned in the mirror housing.
3 Refit the frame.
