Home >> Saab >> 1999 >> 9-5 Wagon (9600) V6-3.0L Turbo (B308) >> Repair and Diagnosis >> Body and Frame >> Mirrors >> Diagrams >> Electrical Diagrams >> Electrically Adjustable Door Mirrors, LHD (Rev. 1)

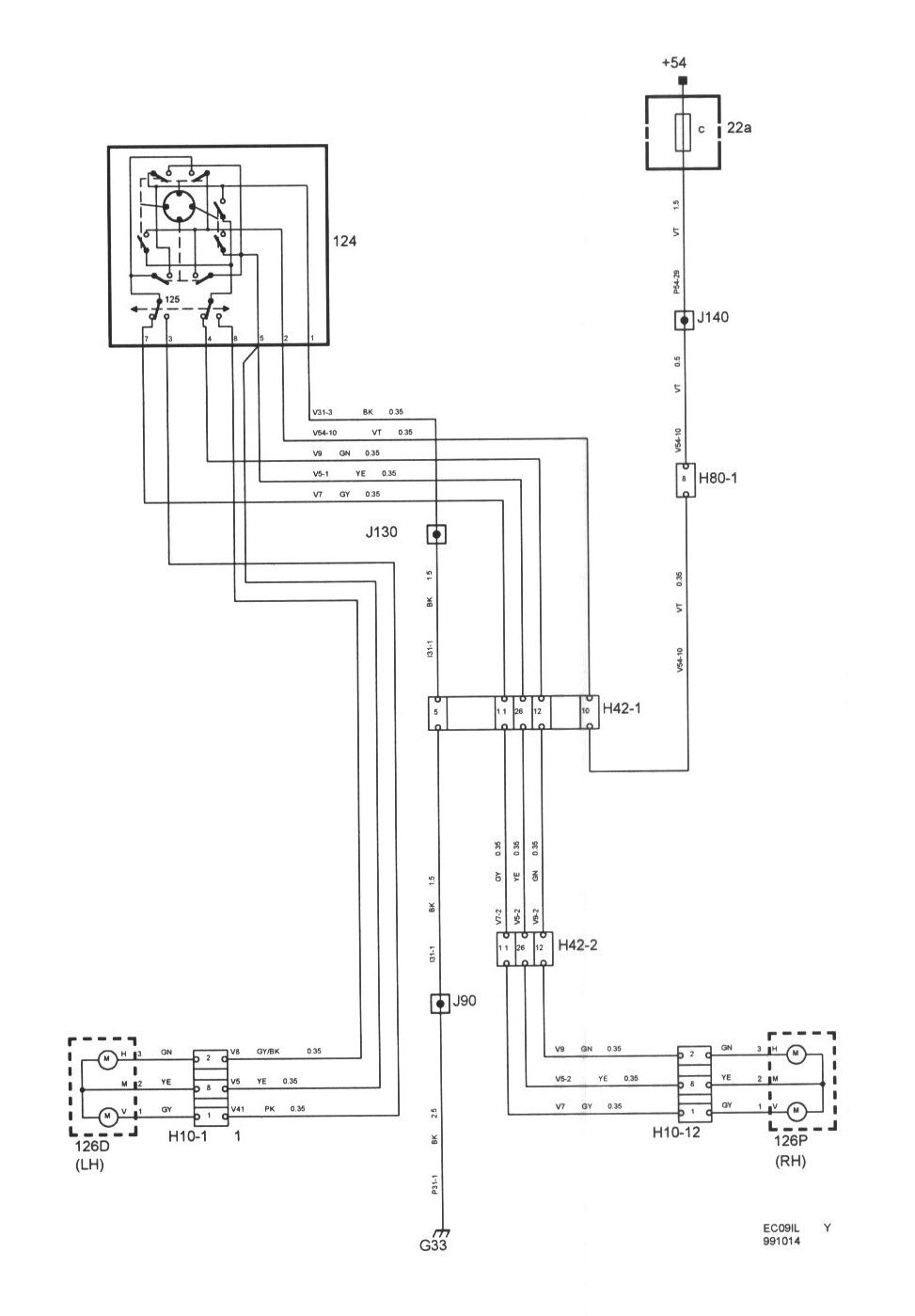

Electrically Adjustable Door Mirrors, LHD (Rev. 1)




Rev. 1: From Y3009316:

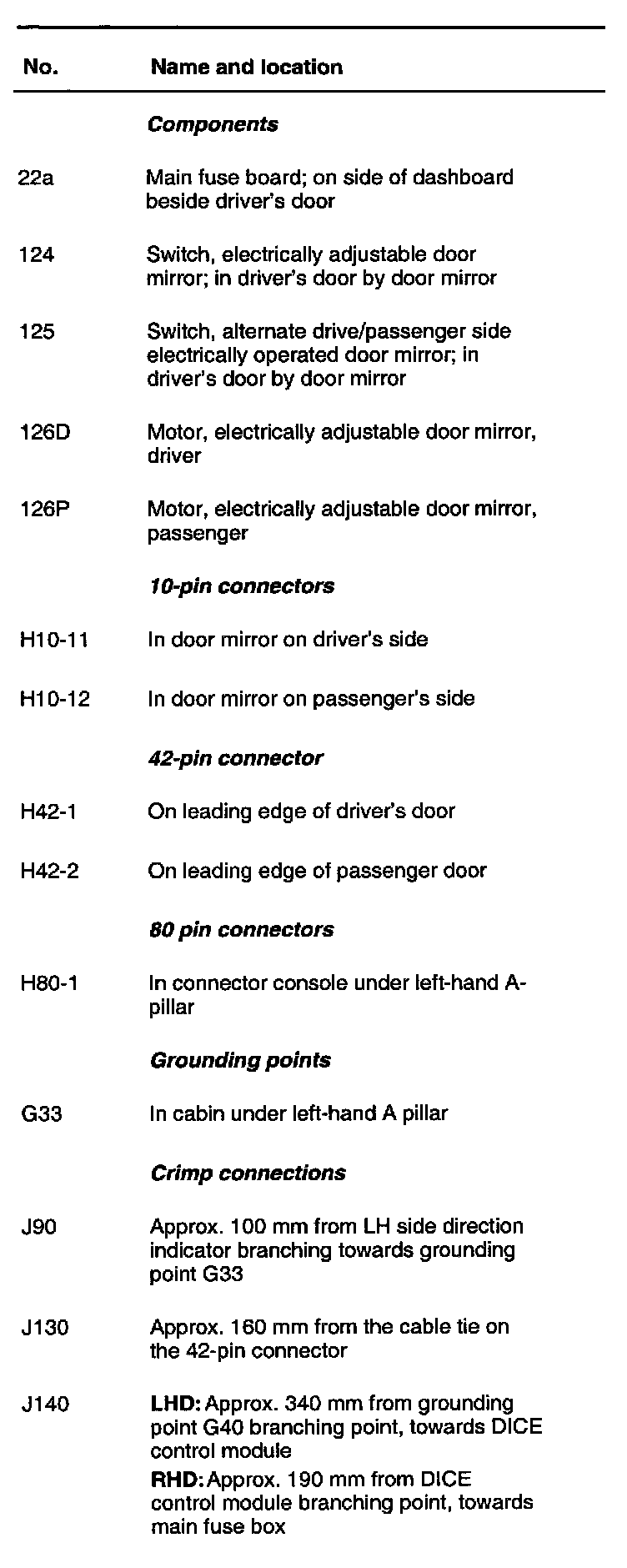

List Of Components


List Of Components:
