Locks: Service and Repair

Lock Unit, Fuel Tank Hatch


To remove

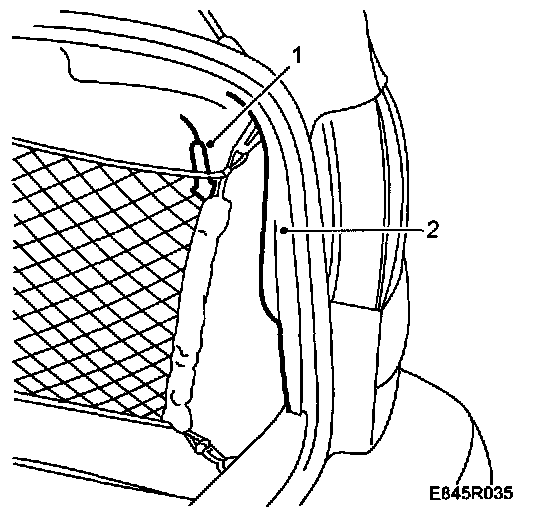

1 Open the hatch with the handle in the luggage compartment.

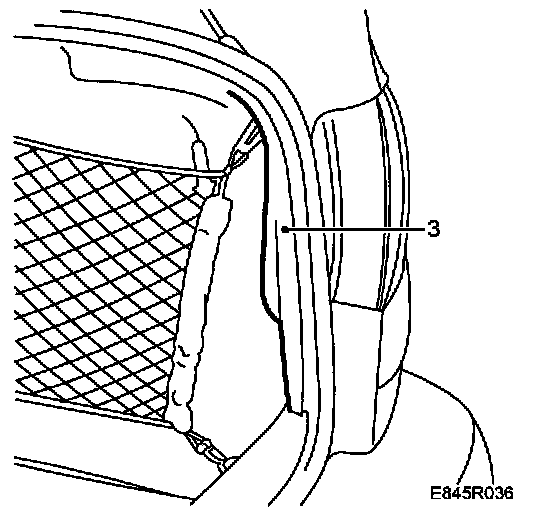

2 Loosen the carpet on the inside of the luggage compartment.

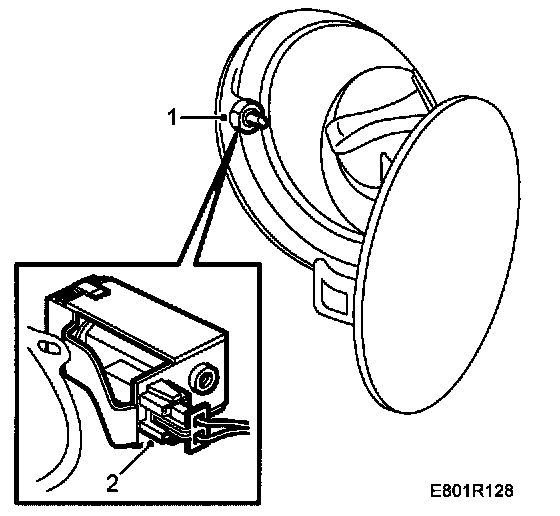

3 Unscrew the nut inside the tank hatch.







4 Unplug the connector on the lock unit and remove the lock.

To fit







1 Screw on the lock unit with the nut inside the tank hatch.
2 Plug in the connector on the lock unit.







3 Fold back the carpet.
