Home >> Saab >> 1999 >> 9-5 Wagon (9600) V6-3.0L Turbo (B308) >> Repair and Diagnosis >> Body and Frame >> Locks >> Locations >> Component Locations >> Central Locking System LHD, Market US/CA (Up to and Including X3020000)

Central Locking System LHD, Market US/CA (Up to and Including X3020000)



Central Locking System LHD, Market US/CA (up To And Including X3020000)

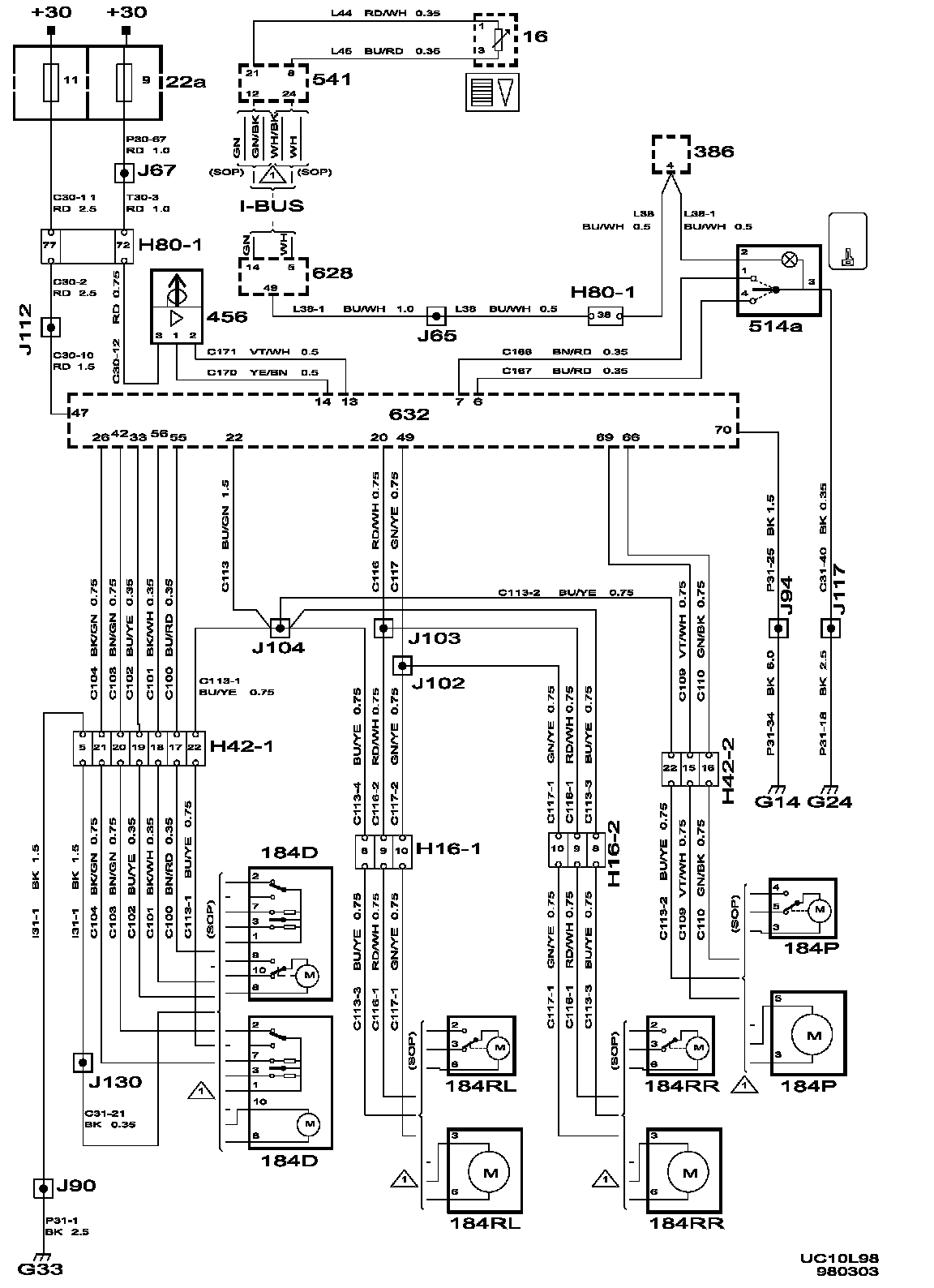

Central Locking System LHD, Market US/CA (up To And Including X3020000):





List of components

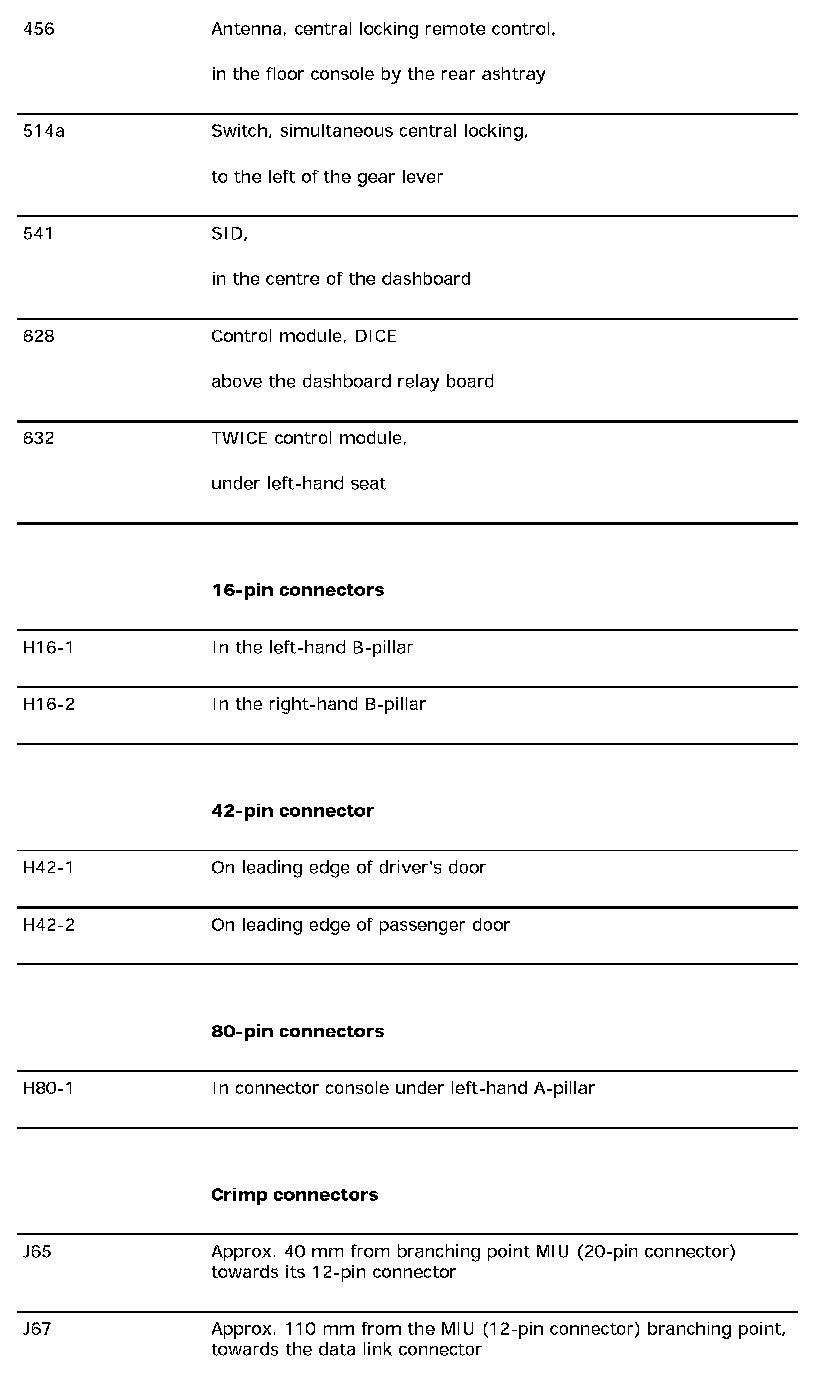

List Of Components (Part 1):

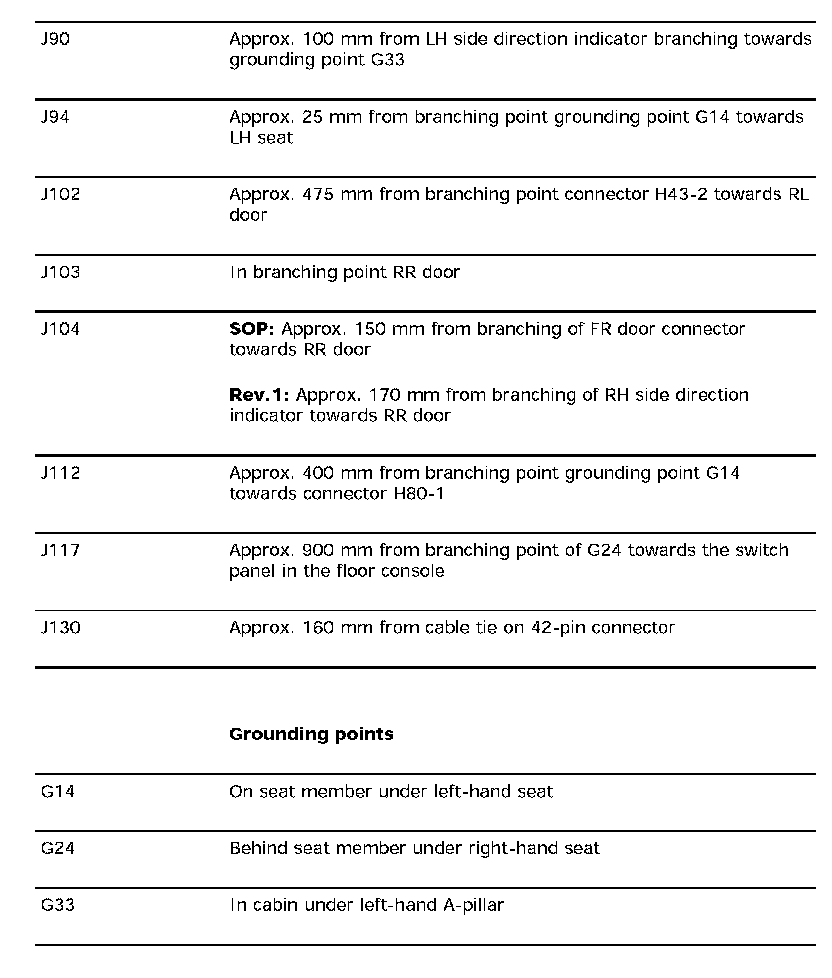

List Of Components (Part 2):




List Of Components (Part 3):
