Home >> Saab >> 1999 >> 9-5 Wagon (9600) V6-3.0L Turbo (B308) >> Repair and Diagnosis >> Body and Frame >> Locks >> Description and Operation >> System Overview, Central Locking System, Tailgate 5D

System Overview, Central Locking System, Tailgate 5D

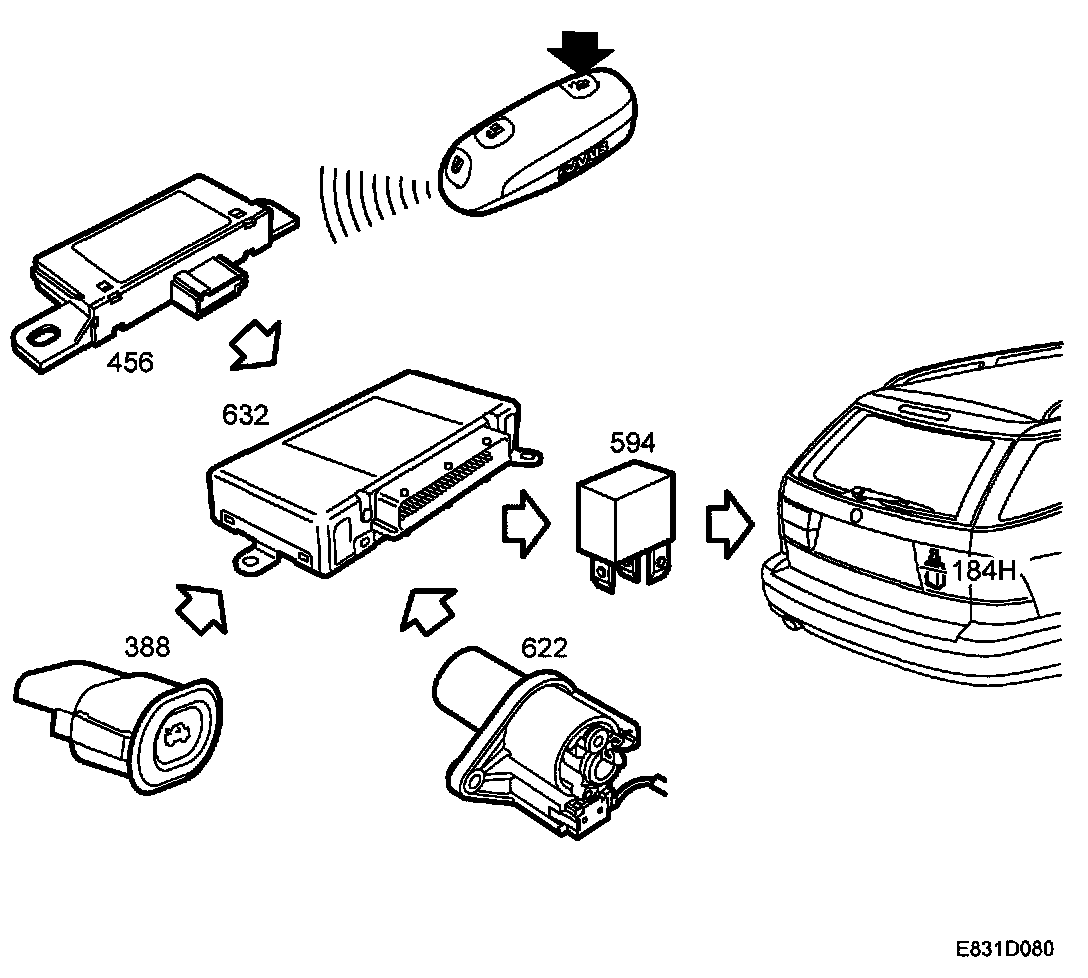

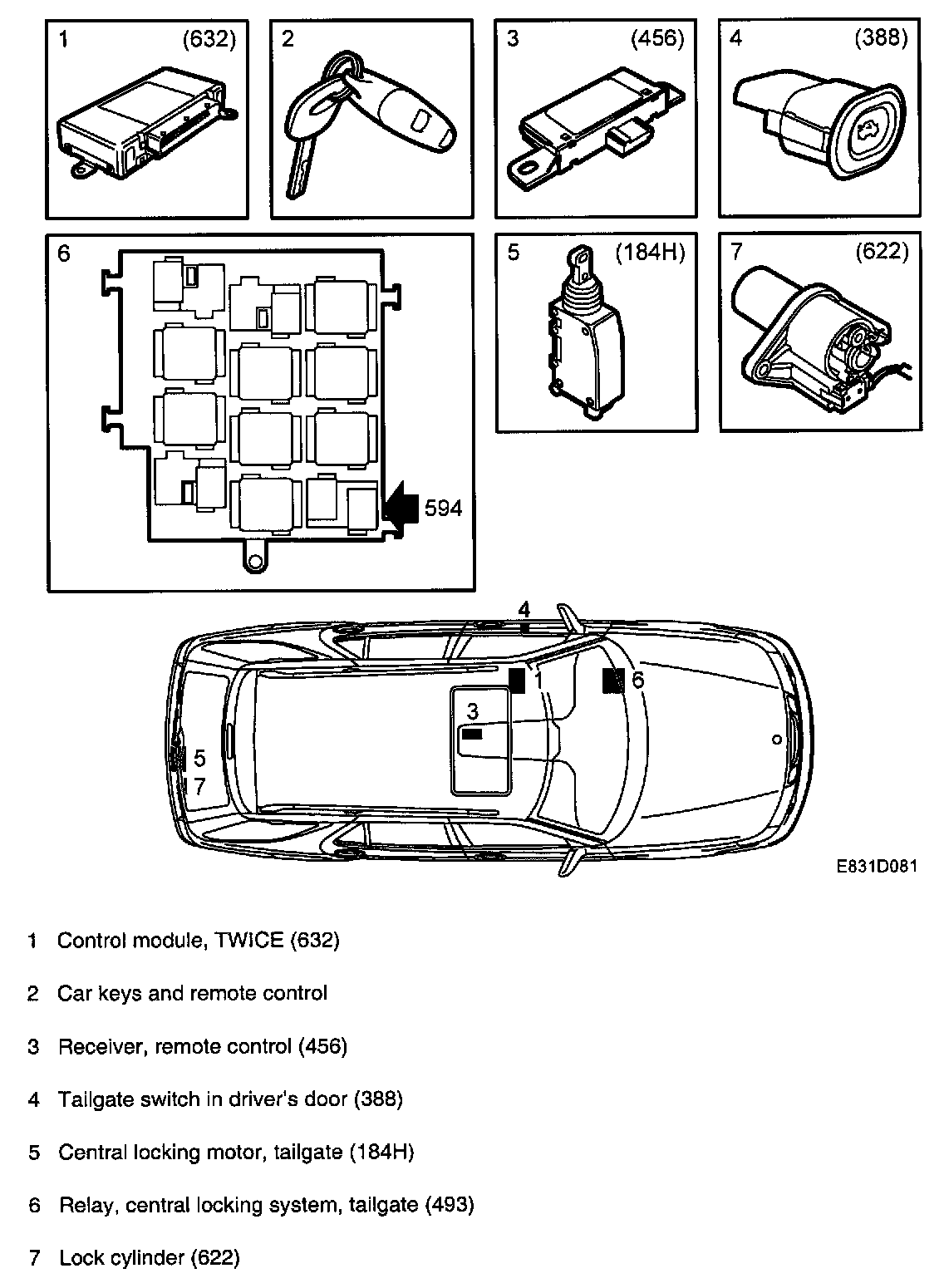

Main components, central locking system, tailgate 5D
