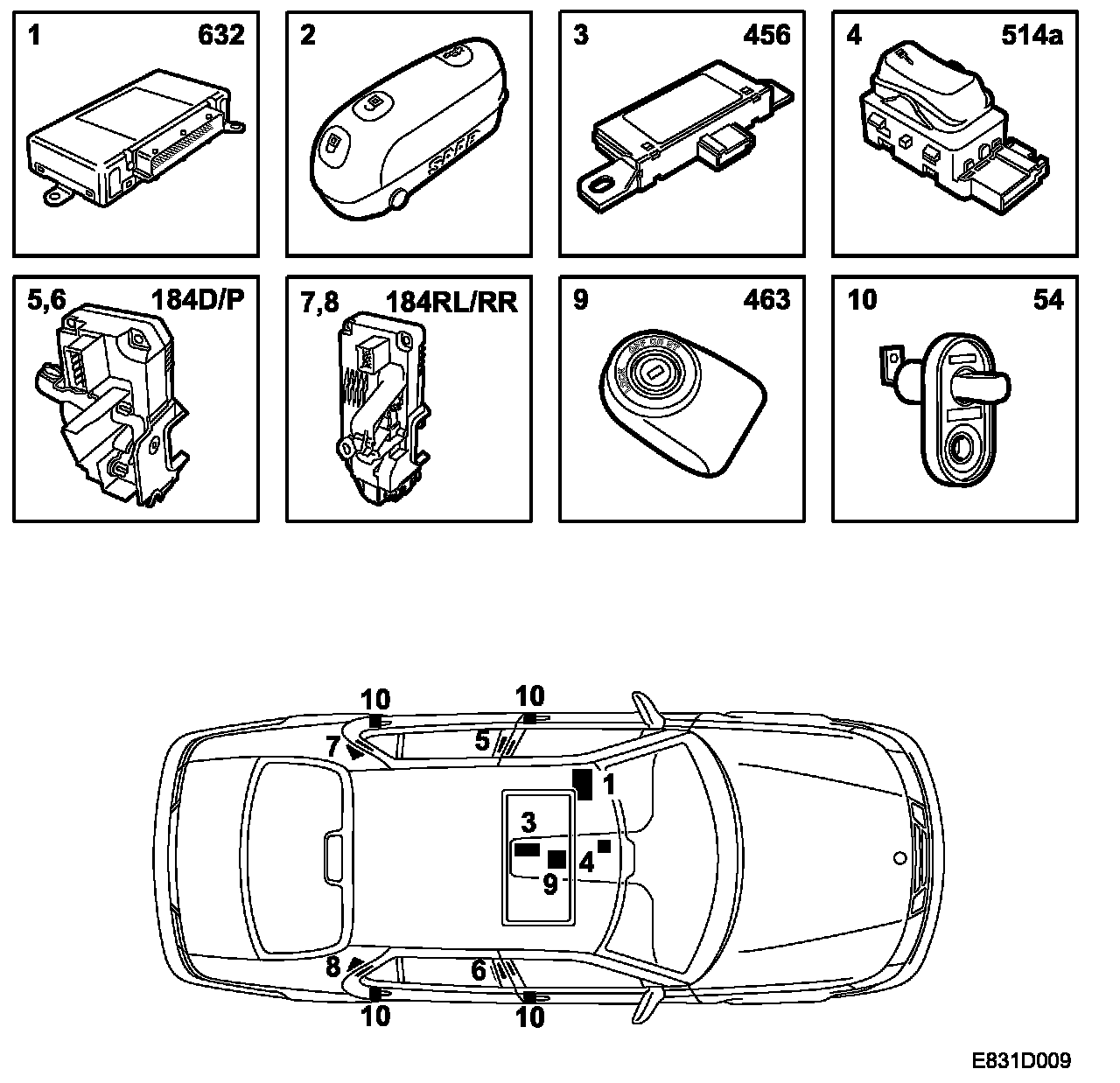

Main Components, Central Locking System

Main Components, Central Locking System





1. Control module, TWICE
2. Remote control
3. Receiver, remote control
4. Switch, centre console
5. Motor, central locking system, driver
6. Motor, central locking system, passenger
7. Motor, central locking system, LH rear
8. Motor, central locking system, RH rear
9. Antenna unit, immobilizer
10. Door switch
