Interior Moulding / Trim: Service and Repair

To remove

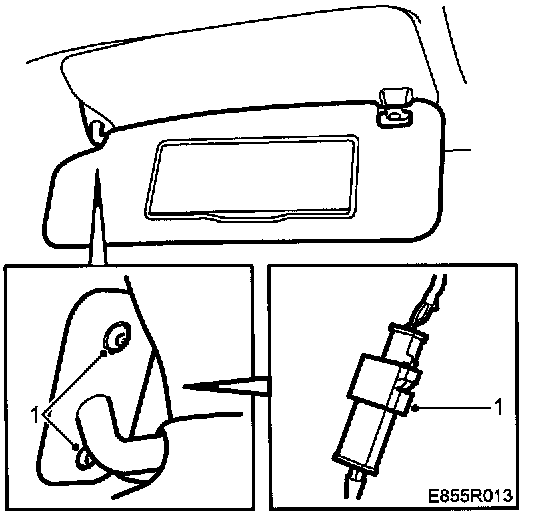

1 Remove the sun visor, 2 screws.
Mirror light:
Unplug the connector for the light.

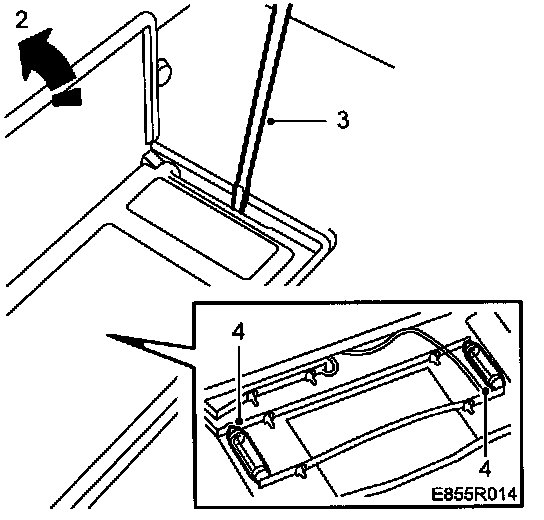

2 Open the mirror cover.







3 Insert a screwdriver between the mirror frame and the frame in the sun visor.
Carefully lever out the mirror frame so that the plastic teeth disengage from the recesses in the sun visor frame.
4 Replace the bulbs.

To fit
Fit in reverse order.
