Rear Subframe: Service and Repair



Nut Piece, Rear Subframe

Removing





1. Remove the carpeting to expose the floor.

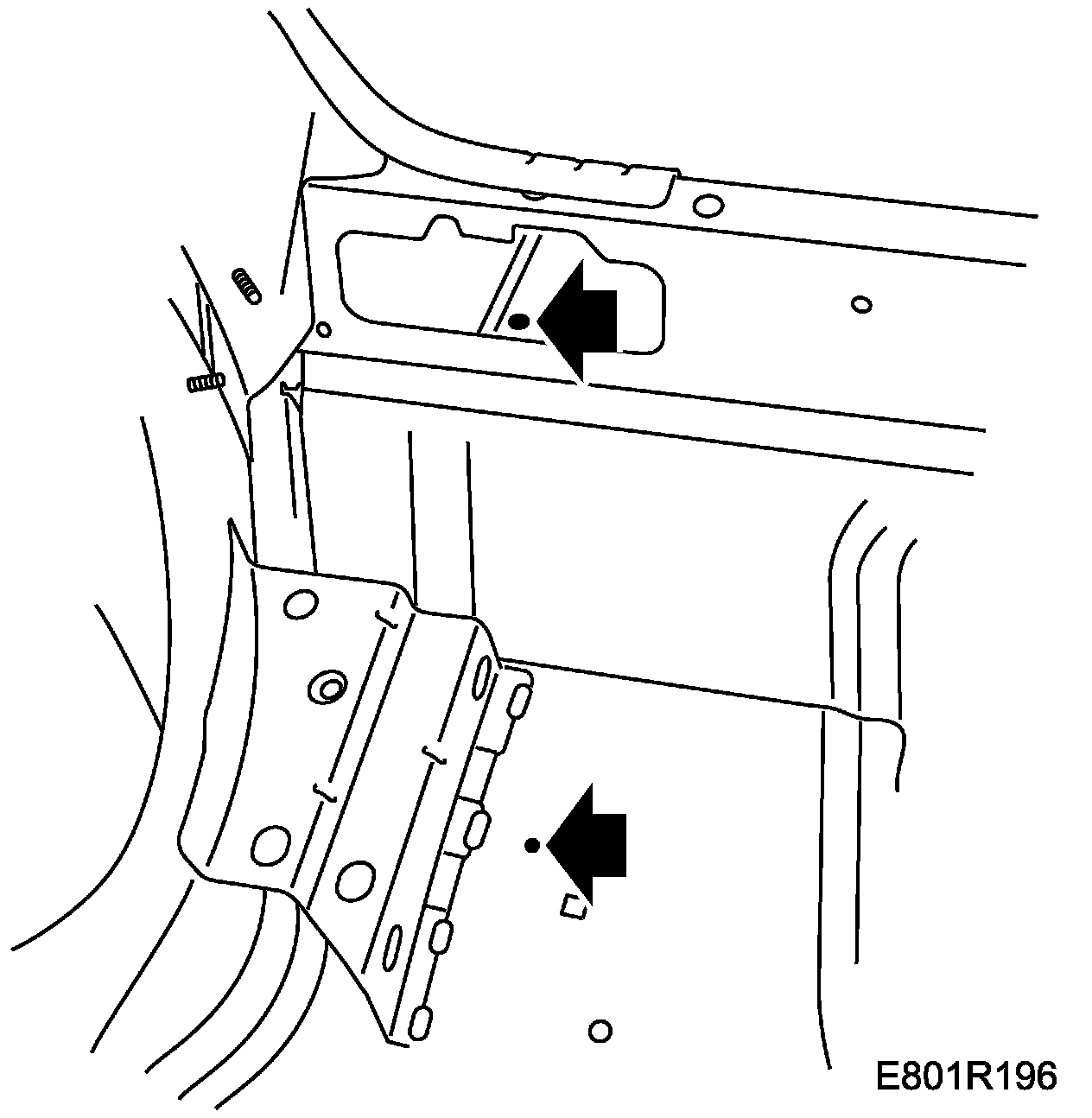

2. Use a 35 mm hole saw to cut out a hole in the marking.
3. If necessary, remove the bolt from underneath.
4. Use a screwdriver to snap out the old nut piece from the holder. Use a pair of pliers or a piece of bent wire to lift out the nut piece.

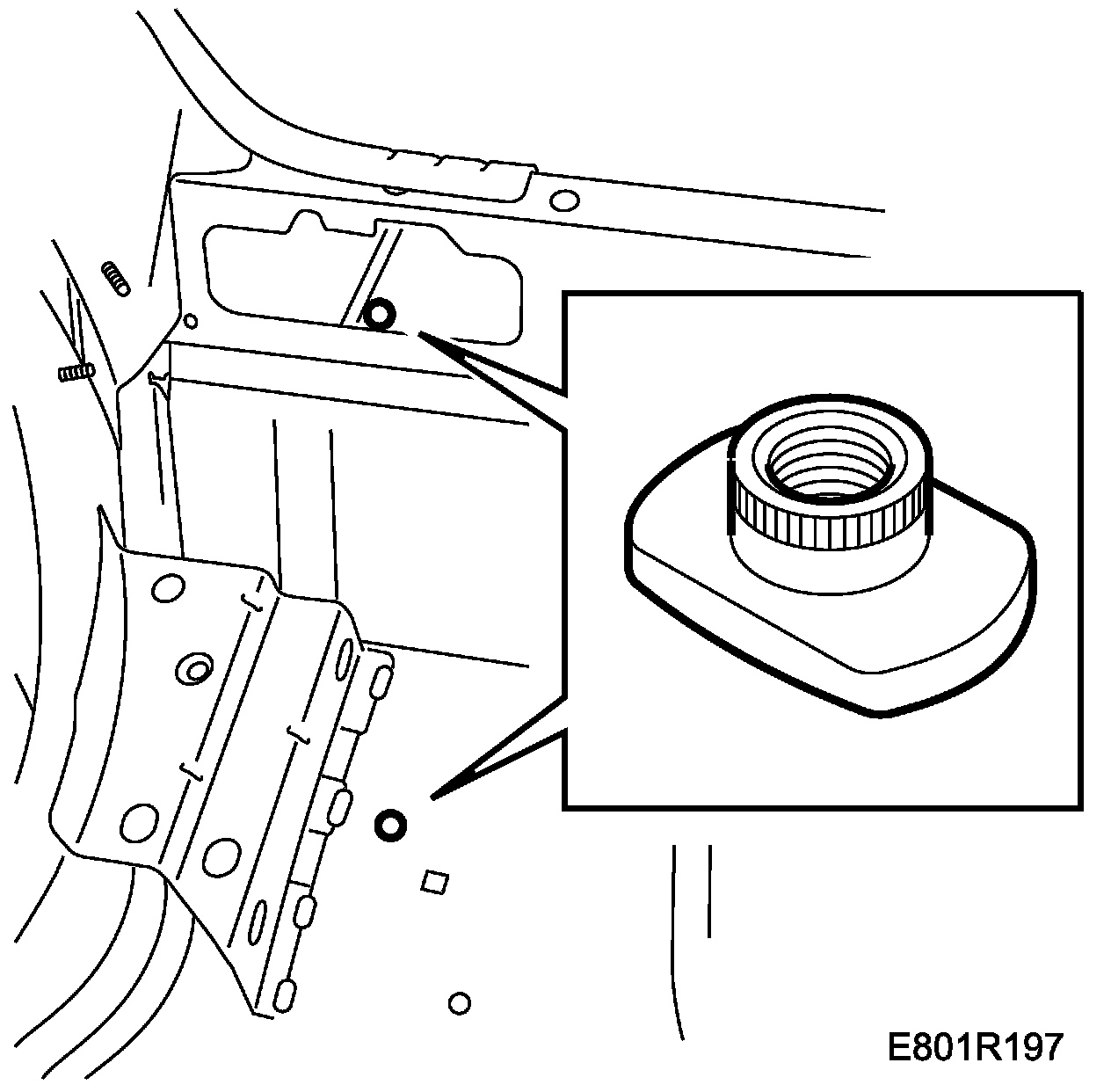

Fitting





1. Fit a new nut piece without plastic holder.
2. Fit the bolt from underneath.
3. Apply anti-corrosive agent to the edge and fit a plug, part No. 43 33 498.
4. Remove all swarf, drillings and grinding dust from the floor, using a vacuum cleaner.
