Boot Lid 4D

To remove







1 Open the boot lid.

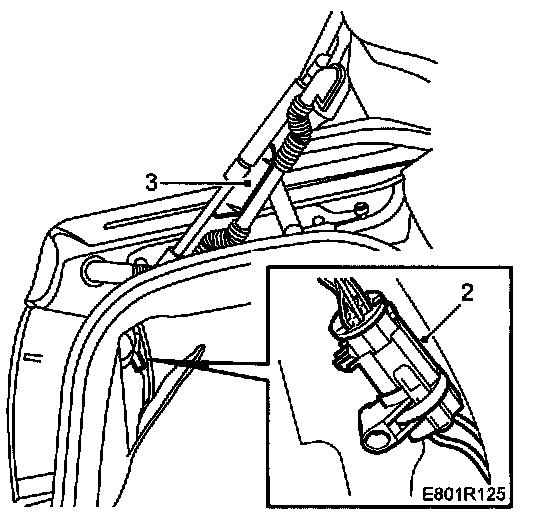

2 Open the hatch in the trim in front of the left-hand rear lamp and unplug the connector to the boot lid wiring harness.
3 Remove the grommet hose from the body and unfasten it from the hinge.

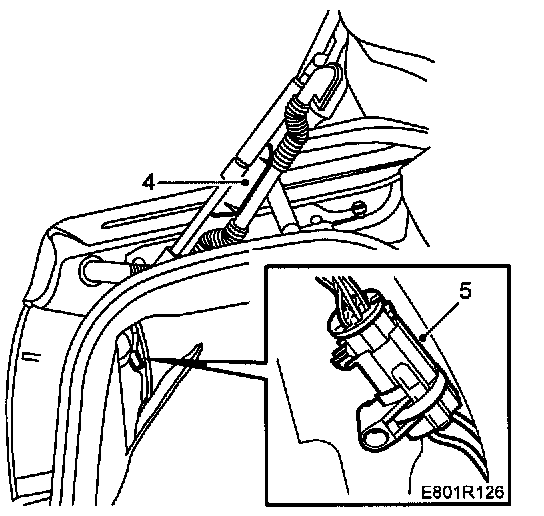

4 Remove the clip securing the gas spring to the ball joint.







5 Remove the gas spring from the hinge.

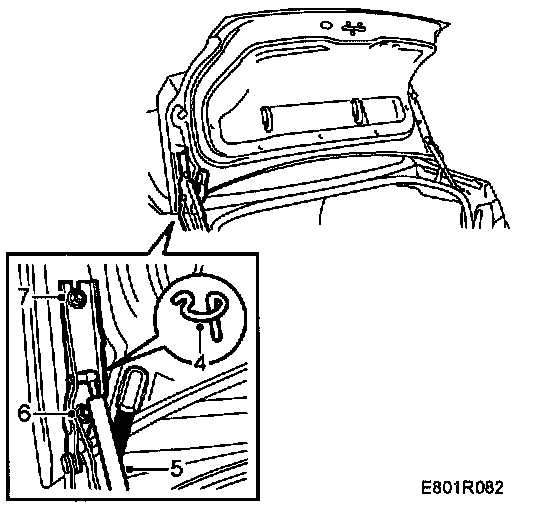

6 Remove the two lower nuts holding the lid to the hinge
7 Unscrew the two top nuts a few turns.
8 Carefully lift off the boot lid.

To fit

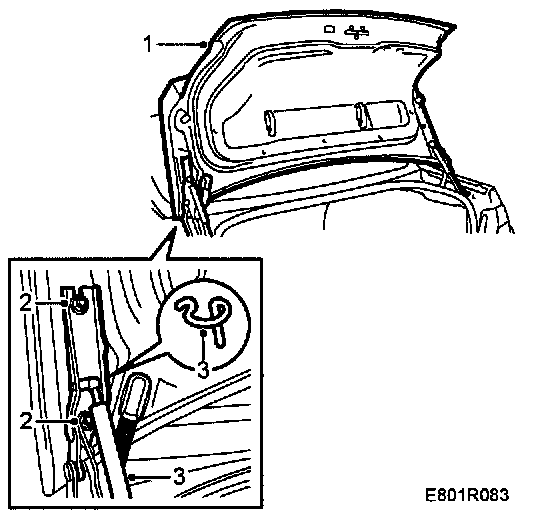

1 Put the boot lid on its hinges.
2 Screw on the nuts.
3 Fit the gas springs to the hinges and fit the clips.
4 Insert the wiring harness through the grommet hose and attach the hose to the hinge.







5 Plug in the connector.
6 Check the fit of the lid and adjust it necessary.
