Boot Lid Lock Motor, 4D

To remove

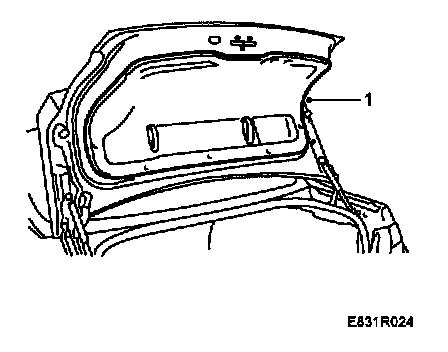

1 Remove the trim from the inside of the boot lid.

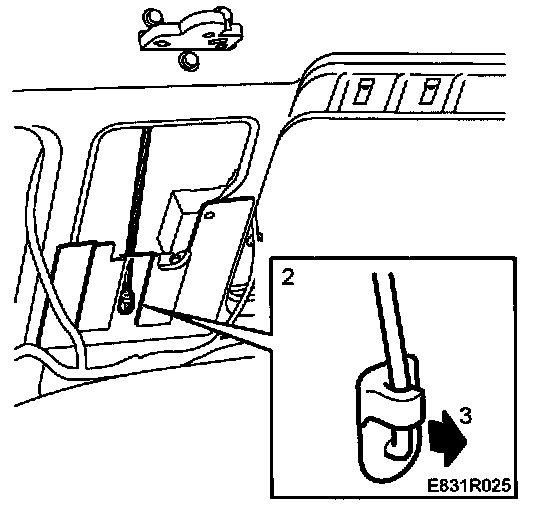

2 Turn the clip securing the locking rod for the lock motor driver.







3 Remove the locking rod.
4 Press out the center pin in the driver and remove the driver. Let the driver hang on the looking rod to the key lock.

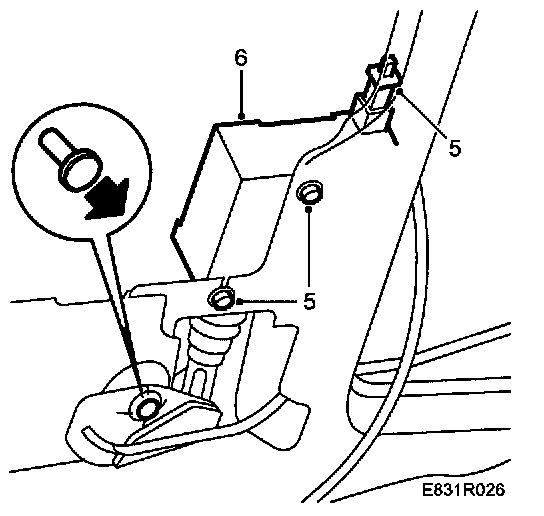

5 Undo the lock motor retaining screws and unplug the connector.
6 Lift out the lock motor.

To fit

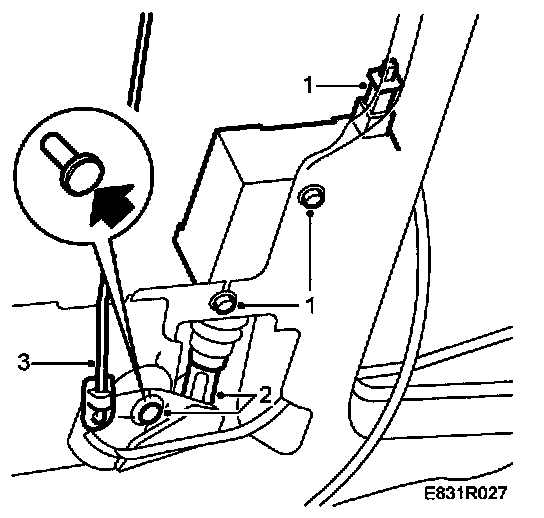

1 Screw on the motor and plug in the connector.
2 Fit the driver.
3 Fit the locking rod to the lock motor driver.

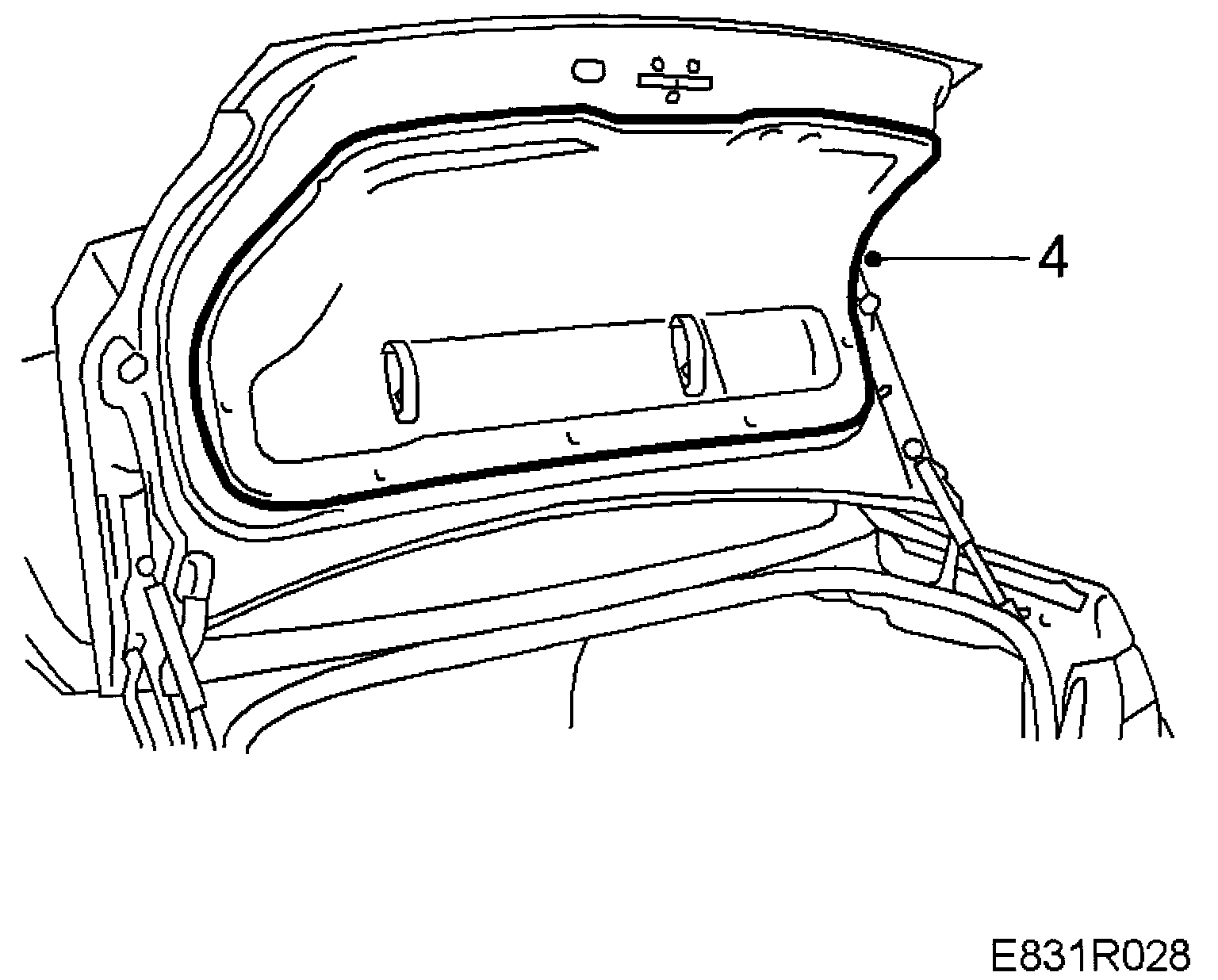

4 Fit the boot lid trim.
