Control Module Power Supply

Control Module Power Supply

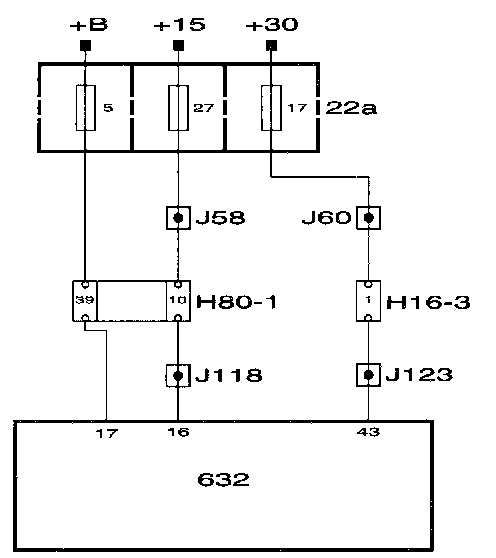

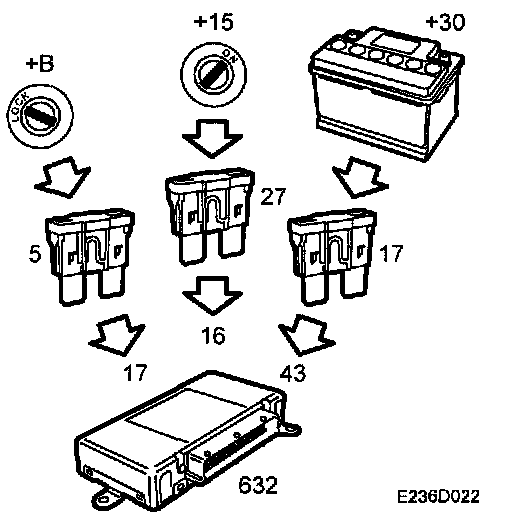

Power supply +30 circuit
From fuse 17 (22a) to the control module pin 43.

Power supply +15 circuit
From fuse 27 (22a) to the control module pin 16.

Power supply +B circuit
From fuse 5 (22a) to the control module pin 17.
