Control Module Ground











Control Module Ground

Ground connections, power ground

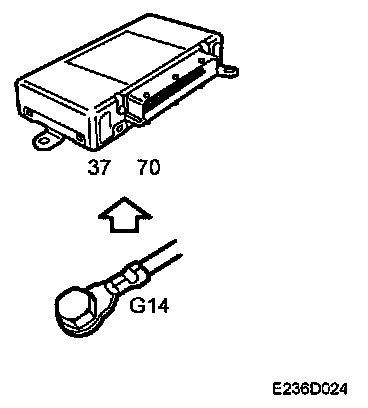

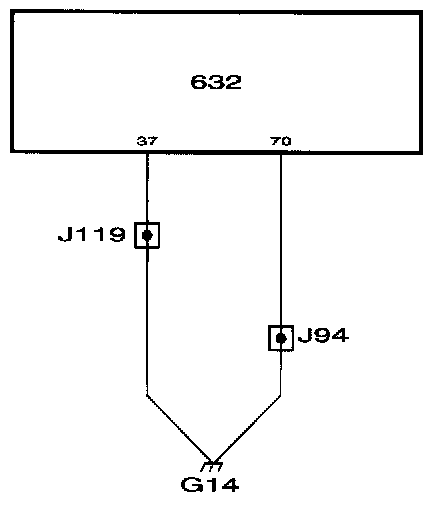

The control module is grounded at grounding point G14 via pin 70.

Ground connection, signal ground
The control module is grounded at grounding point G14 via pin 37.
