Keyless Entry Receiver: Description and Operation

Receiver For Remote Control

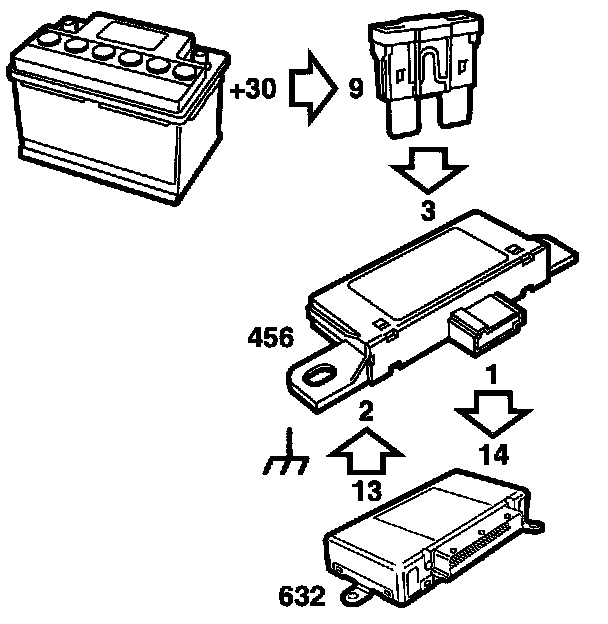

The receiver for the remote control has an integral loop antenna and is available in two variants for frequencies 433.92 MHz and 315 MHz. Located between the front seats in the rear of the centre console, this is supplied with +30 circuit from fuse 9 and connected to the TWICE control module at the following pins:

Ground Pin 13
Signal Pin 14

Function
The receiver's integral loop antenna receives the code signal sent out by the remote control. The signal is processed and sent on to TWICE which is programmed to identify the remote controls programmed into the car. If the signal received is correct, the command is performed.
