Conditions

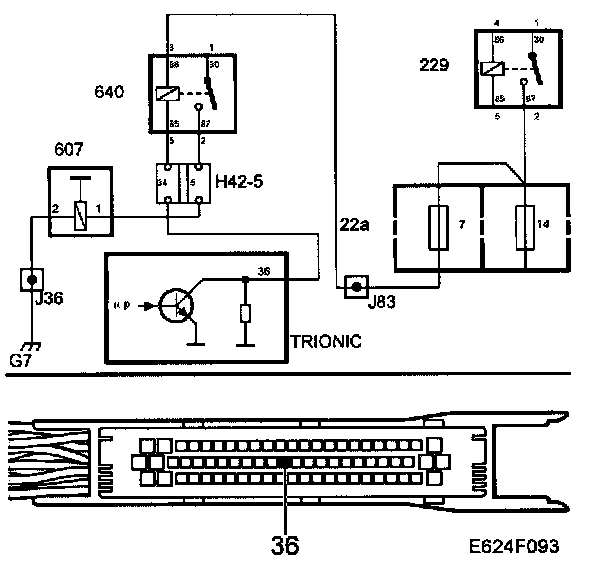

Throttle Limphome Relay Coil Circuit. Short to B+





Fault symptoms
- CHECK ENGINE.

On-Board Diagnostics

Type of diagnosis:
- Continuous. But interrupted when fault criteria fulfilled and will not restart until next driving cycle.

Enable criteria:
- Engine running. Main relay voltage exceeding 10V. Output is active.

Fault criteria:
- Output voltage exceeding 2V for more than 1 s.

Dependents:
- None.

System reaction to a fault:
- None.

OK report:
- Enable criteria fulfilled and fault criteria not fulfilled within 60 s.

Fault handling: Fault Handling III, Other Emission-Related Comp. & Function
- Type III.

Diagnostic help
Fault diagnosis concerns electrical faults in connecting cables or in the relay.

Check the wiring
Jiggle the leads and in-line connectors at various points and in different directions to detect any intermittent breaks or short circuits in the wiring. Observe the multimeter, test lamp or diagnostic tool while doing this.

Proceed to Diagnostic Procedures Checking the Relay Power Supply
