Fault Conditions

P1632
Internal Control Module. Malfunction.

Fault symptoms
- CHECK ENGINE.
- Possible loss of power before trouble code generated.

On-Board Diagnostics
Type of diagnosis:
- Continuous. But interrupted when fault criteria fulfilled and does not restart until next driving cycle.

Enable conditions:
- Engine running

Fault criteria:
- Voltage from atmosphere absolute pressure sensor lower than 0.200 V for more than 1 S.

Dependents:
- None.

System reaction to a fault:
- Charge air pressure starting value used as substitute value. Purge blocked. OK report:
- Fault criteria for P1631, P1632 or P1633 not fulfilled.

Fault handling: See "Fault diagnosis, general" for more information.
- Type III.

Diagnostic help

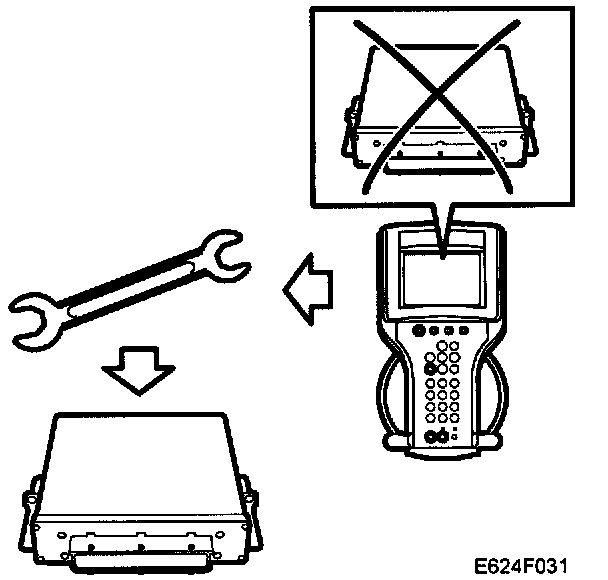

Fault diagnosis concerns internal control module fault as the sensor is integrated in the control module.

Functions in the diagnostic tool related to the fault:
- Pressure sensor value, unit kPa.

The value should correspond with that of the other two pressure sensors when the engine is stationary. Accepted deviation: 10 kpa. See also the description of readings in "Fault diagnosis, general" for more information.

Proceed to Diagnostic Procedures Changing Components
