Conditions

Internal Control Module. Malfunction.





Fault symptoms
- CHECK ENGINE.

On-Board Diagnostics

Type of diagnosis:
- Continuous. But interrupted when fault criteria fulfilled and will not restart until next driving cycle.

Enable criteria:
- Ignition in ON position.

Fault criteria:
- No pulses are generated to the control module input for pedal position sensor 2.

Dependents:
- None.

System reaction to a fault:
- None

OK report:
- Accelerator pedal has been depressed at some time and then fully released. 120s has expired since then without fault criteria being fulfilled.

Fault handling: Fault Handling III, Other Emission-Related Comp. & Function
- Type III.

Diagnostic help

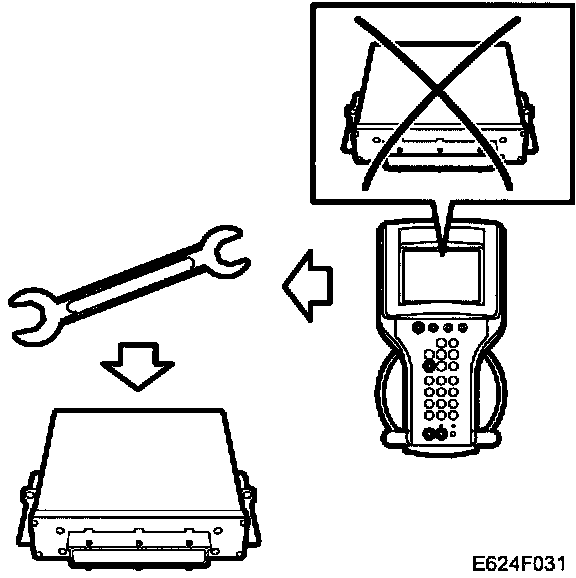

Fault diagnosis concerns an internal fault in the control module.

Proceed to Diagnostic Procedures Changing Components
