Conditions

Brake Light Switch Circuit. Short To Ground.





Fault symptoms
- CHECK ENGINE.
- Cruise control inoperative.

On-Board Diagnostics

Type of diagnosis:
- Continuous. But interrupted when fault criteria fulfilled and will not restart until next driving cycle

Enable criteria:
- Engine running. Vehicle speed has dropped from 40 km/h to 3 km/h in 2 to 12 s on 5 occasions.

Fault criteria:
- No battery voltage on control module input on any occasion.

Dependents:
- None.

System reaction to a fault:
- Cruise control is blocked.

OK report:
- Brake pedal depressed and then released on one occasion.

Fault handling: Fault Handling III, Other Emission-Related Comp. & Function
- Type III.

Diagnostic help

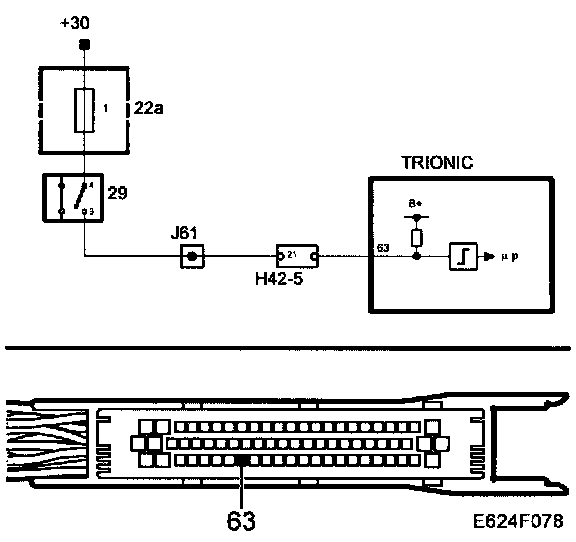

Fault diagnosis concerns an electrical fault in the connecting leads.

Diagnostic tool functions related to this fault are:
- Diagnostic status for the diagnosis.
- Brake light, unit ON/OFF.

See also the description of test values under "Fault diagnosis, general" for more information.
Tech 2 Menu Structure, DTC Menu, Read Value, Activate, Sys Info

Check the wiring
Jiggle the leads and in-line connectors at various points and in different directions to detect any intermittent breaks or short circuit in the wiring. Observe the multimeter, test lamp or diagnostic tool while doing this.
