Conditions

Secondary air injection, SAI pump relay. Short/Open circuit to ground





Fault symptoms
- CHECK ENGINE
- The secondary air injection pump will not start.

Type of diagnosis
Continuous.

Conditions
The following conditions apply for this DTC:
- Enable criteria: Engine speed greater than 0 rpm (engine running) for more than 60 seconds.
- Voltage 0 V

Diagnostic help

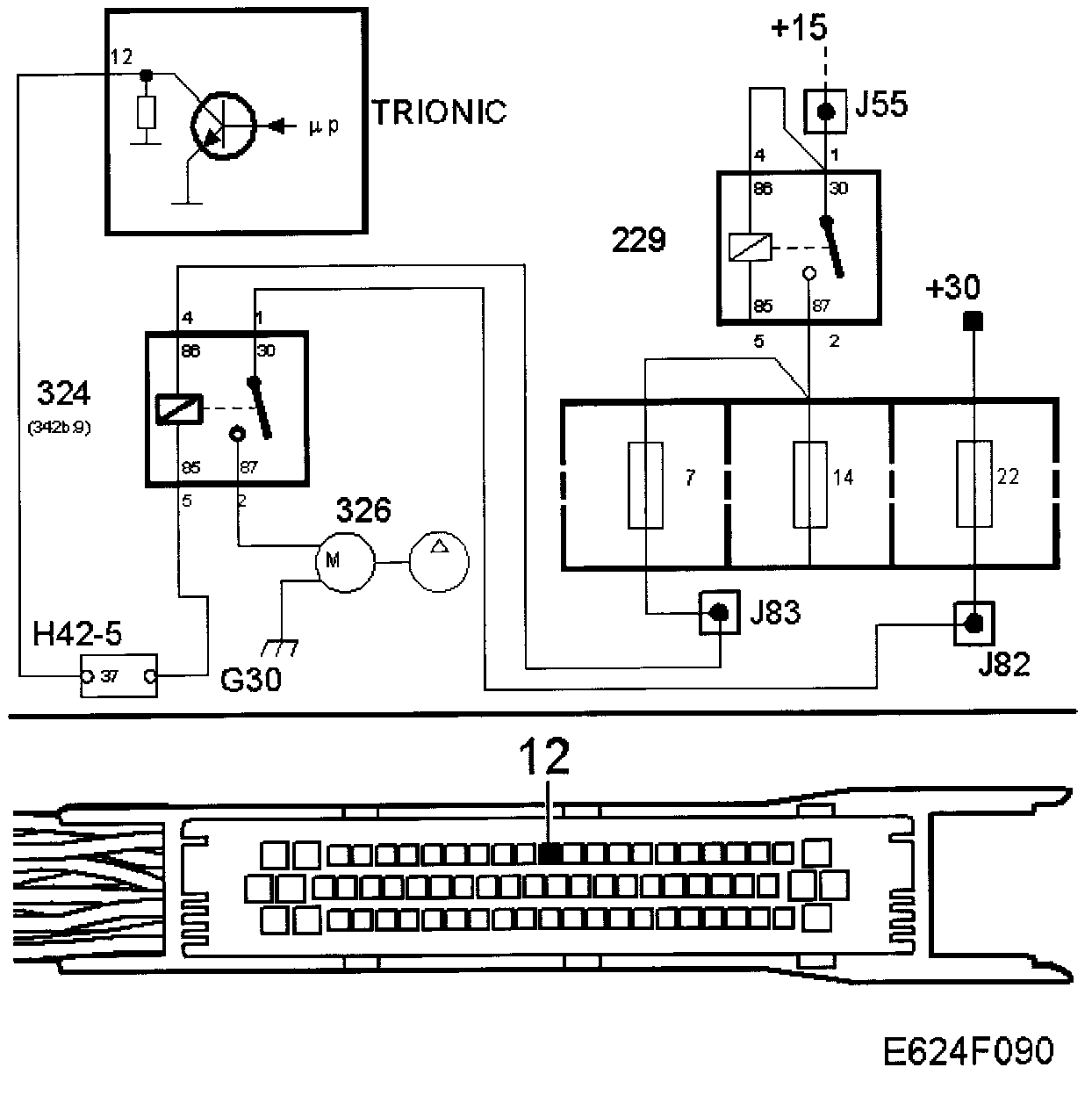

Fault diagnosis concerns an electrical fault in the connecting leads or in the secondary air injection pump relay.

Diagnostic tool functions related to this fault are:
- Activation of SAI pump.
- Activation of diagnostics, secondary air injection.

Check the wiring
Jiggle the leads and in-line connectors at various points and in different directions to detect any intermittent breaks or short circuits in the wiring. Observe the multimeter, test lamp or diagnostic tool while doing this.

Proceed to Diagnostic Procedures Checking Relay to Secondary Air Injection Pump - I
