Checking Mechanical Limp-home

Checking Mechanical Limp-home









- Turn the ignition switch to the OFF position.

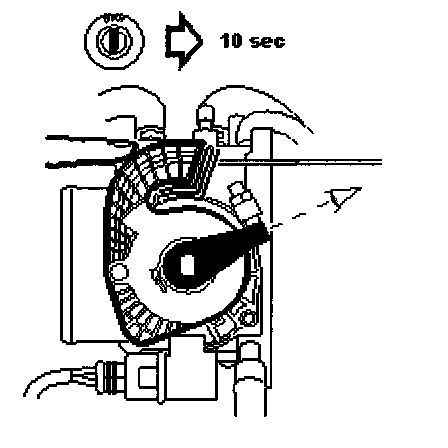

- Switch off the ignition and wait 10 seconds to ensure that the flap valve motor will be without current.
- Turn the pedal arm and make sure the throttle arm does not move.

Is the function correct?

NO - Resetting the Limp-Home Mechanism

YES - Continue with Checking Mechanical Limp-home





Clear diagnostic trouble codes : Trionic
