Checking the Mechanical Operation of the Flap

Checking the mechanical operation of the flap

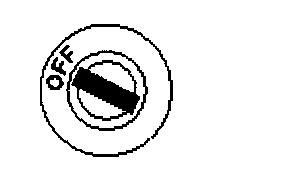

- Turn the ignition switch to the OFF position.
- Wait for 10 seconds.

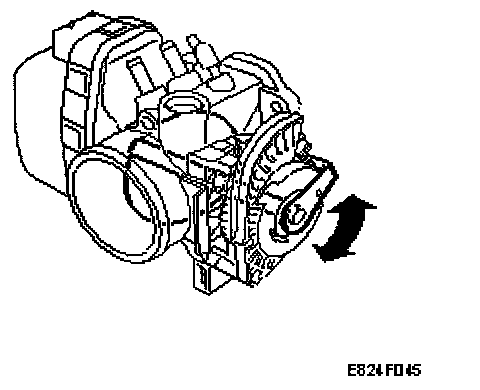

- Open and close the flap valve by hand.
- The flap valve should not bind in any position.
- The spring should return the flap valve to the stop screw,
- No external objects, hoses, cables, etc. must obstruct the movement of the throttle arm.

Is the function correct?

NO - Continue with Checking the mechanical operation of the flap

YES - Checking the Control Module's Flap Motor Output

Can the fault be rectified without changing the throttle body?

NO - Changing Components

YES - Diagnostic Procedure
