Conditions

Throttle Position Sensor 1 and 2 Circuit. Sum Out of Range.





Fault symptoms
- CHECK ENGINE.
- Incorrect idle speed.
- Cruise control inoperative.

On-Board Diagnostics

Type of diagnosis:
- Continuous. But interrupted when fault criteria fulfilled and will not restart until next driving cycle.

Enable criteria:
- Ignition in ON position.

Fault criteria:
- Sum of voltages from throttle position sensors 1 and 2 exceeding 5.70 V or below 4.59 V.

Dependents:
- None.

System reaction to a fault:
- Throttle control goes into limp-home mode. The limp-home solenoid will be activated 5 times in succession each time the ignition is turned on until the fault has been rectified and the trouble codes cleared.

OK report:
- Accelerator pedal has been depressed at some time and then fully released. 120s has expired since then without fault criteria being fulfilled.

Fault handling: Fault Handling III, Other Emission-Related Comp. & Function
- CHECK ENGINE goes on immediately and can be turned off only by clearing the trouble codes.

Diagnostic help

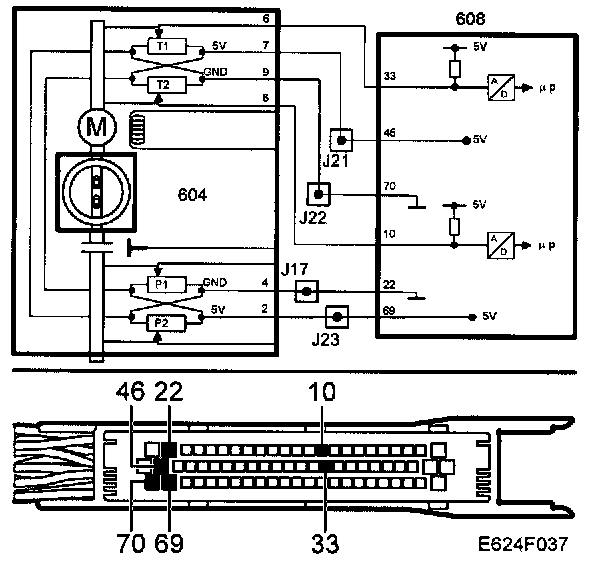

Fault diagnosis concerns electrical faults in connecting cables or in any of the sensors.

Diagnostic tool functions related to this fault are:
- Throttle position sensor 1, unit V.
- Throttle position sensor 2, unit V.

See also the description of test values under "Fault diagnosis, general" for more information.
Tech 2 Menu Structure, DTC Menu, Read Value, Activate, Sys Info

Check the wiring
Jiggle the leads and in-line connectors at various points and in different directions to detect any intermittent breaks or short circuit in the wiring. Observe the multimeter, test lamp or diagnostic tool while doing this.

Proceed to Diagnostic Procedures Checking the Sensor's Grounding
