Check Additional Diagnostic Trouble Codes In the Trionic System

Check Additional Diagnostic Trouble Codes In The Trionic System





- Turn the ignition switch to the ON position.

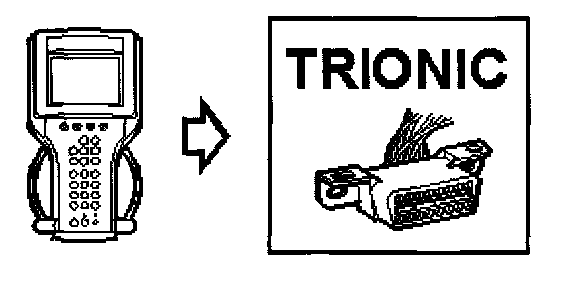

- Contact Trionic.

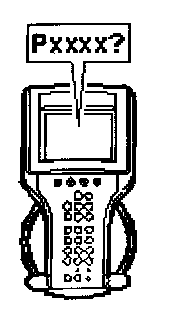

- Read diagnostic trouble codes.

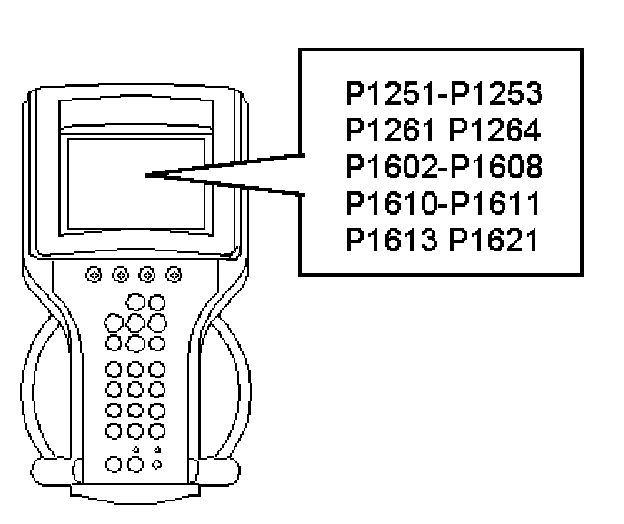

- Are any of the diagnostic trouble codes below present?

P1251
P1252
P1253
P1602 - P1608
P1610, P1611
P1613
P1621
- Refer to relevant diagnostic trouble code

NONE
- Checking Mechanical Limp-Home
