Conditions

Idle Speed Control. Idling Speed Too High.





Fault symptoms
- CHECK ENGINE.
- Fast idling speed.

On-Board Diagnostics

Type of diagnosis:
- Continuous. But interrupted when fault criteria fulfilled and will not restart until next driving cycle.

Enable criteria:
- General conditions for this trouble code: Atmospheric pressure must exceed 72 kPa and the engine coolant and intake air temperature must exceed -7 °C.
- Engine running. Car stationary. Accelerator pedal fully released. Idle speed control requesting smallest possible air mass per combustion.

Fault criteria:
- Engine speed more than 200 rpm higher than the requested idling speed for 10 sec.

Dependents:
- P0501, P0502, P1230, P1530, P1531, P1532 and P1925.

System reaction to a fault:





- None.

OK report:
- Diagnosis performed once and fault criteria not fulfilled.

Fault handling: Fault Handling III, Other Emission-Related Comp. & Function
- Type III.

Diagnostic help

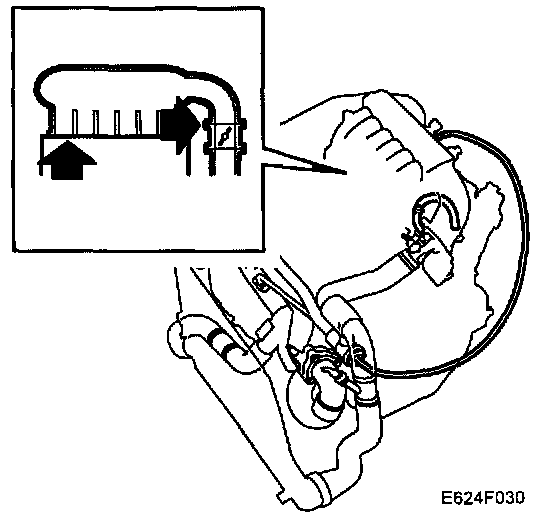

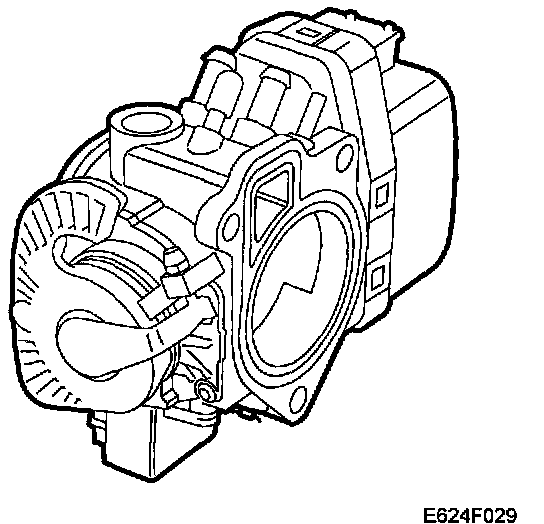

If other codes have been generated, check whether fault diagnosis should start with any of them. Then, check whether the throttle is in limp-home mode and finally check whether there is an air leak after the throttle.

Diagnostic tool functions related to this fault are:
- Diagnostic status for the diagnosis.
- Idle speed control, ON/OFF.
- Idling speed difference, unit rpm.

See also the description of test values under "Fault diagnosis, general" for more information.
Tech 2 Menu Structure, DTC Menu, Read Value, Activate, Sys Info

Proceed to Diagnostic Procedures Check Additional Diagnostic Trouble Codes In the Trionic System
