Checking the Wiring Harness

Checking the Wiring Harness

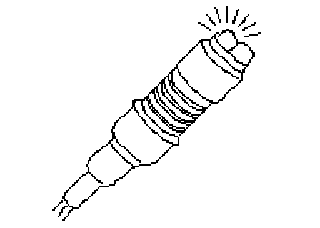

- Stop the wheel a such a way that the lamp shines constantly.

Checking The Wiring Harness
Jiggle the leads and in-line connectors at several places and in different directions to reveal intermittent breaks and short circuits in the wiring harness. Observe the multimeter test lamp or diagnostic tool while doing this

Is the function correct?

NO - Rectifying the Lead

YES - Checking the Vehicle Speed Signal
