Checking Diagnostic Trouble Codes In the ABS

Checking Diagnostic Trouble Codes In The ABS





- Turn the ignition switch to the ON position.

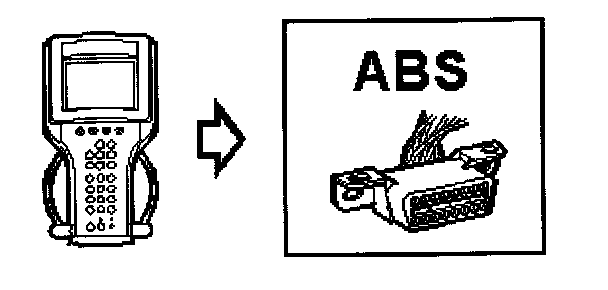

- Contact ABS.





- Obtain readouts of diagnostic trouble codes in the ABS.

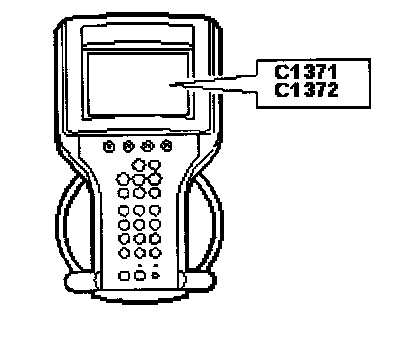

Has diagnostic trouble code C1371 or C1372 been registered?

NO - Checking the Wheel Speed Signal

YES - Continue with Checking Diagnostic Trouble Codes In the ABS

See fault diagnosis in the 'Brakes, ABS' service category.

After performing this procedure Checking the Vehicle Speed Signal
