Checking Air Leakage After Flap - I

Checking Air Leakage After Flap





Check and rectify if.
- the EVAP purge valve circuit is blocked
- faulty brake servo
- the crank case ventilation is blocked there is an air leak present in the vacuum hoses.

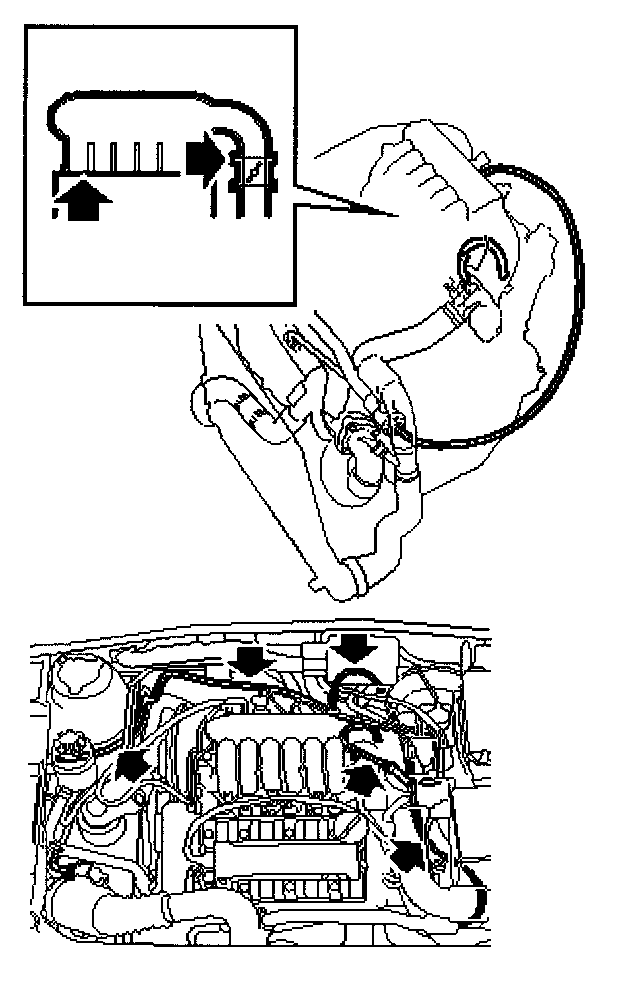

Pinch off one hose at a time and observe the diagnostic tool's display to determine whether a leak occurs. It is OK if crankcase ventilation gives an increment of about 5% via the thin hose. The other hoses must not give any noticeable increment. Note that the EVAP canister purge valve's electrical connection must be disconnected for this check.

Is the function correct?

NO - Checking Air Leakage After Flap - II

YES - Continue with Checking Air Leakage After Flap.





Plug in the connector.

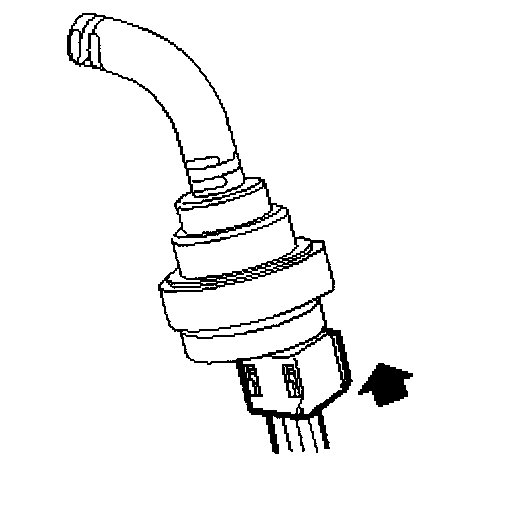

- EVAP canister purge valve

After performing this procedure Diagnostic Procedures - I
