Checking Mass Air Flow When Under Partial Load

Checking Mass Air Flow When Under Partial Load

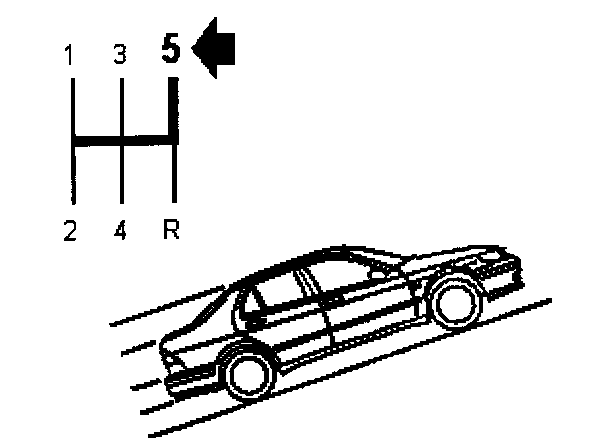

- Drive the car in top gear with a steady high engine load.
- Driving uphill is recommended.
- Read value: Air mass Deviation from Calculated (Trionic).

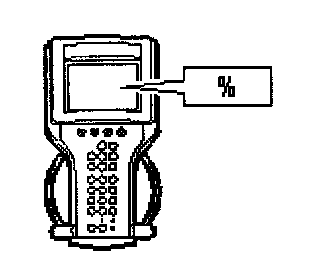

- State what the diagnostic tool shows:

-15% to -25% - Changing Components
Other value - Checking the Fuel Supply
