TC/ABS

Fault Systems
ABS, brakes and central warning lamps are on. TCS OFF indicator lamp is on. No ABS or TCS function.

Conditions

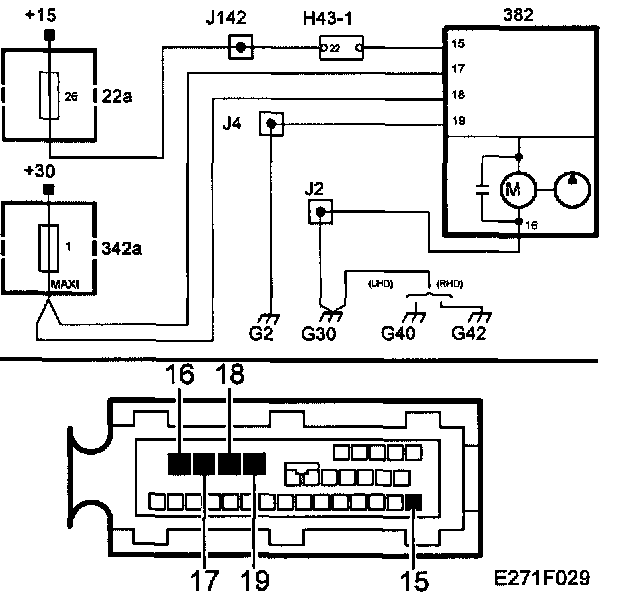

The pump motor is continuously monitored for open/short circuits. Pump motor test is conducted with ignition ON and wheel speed above 6 km/h (3.7 mph).

Diagnostic help
The pump motor can be activated using the diagnostic tool.
^ Select "Activate"
^ Select "Pump motor".
If the TC/ABS control module is not connected to ground (pin 16), diagnostic trouble code C2465 will be set.
