TC/ABS

Fault Systems
ABS, brakes and central warning lamps are on. TCS OFF indicator lamp is on. No ABS or TCS function.

Conditions
^ Speed signal not present for longer than 10 ms when vehicle speed exceeds 40 km/h (25 mph).
^ Speed signal incorrect if vehicle speed exceeds 12 km/h (7.5 mph).

Diagnostic help

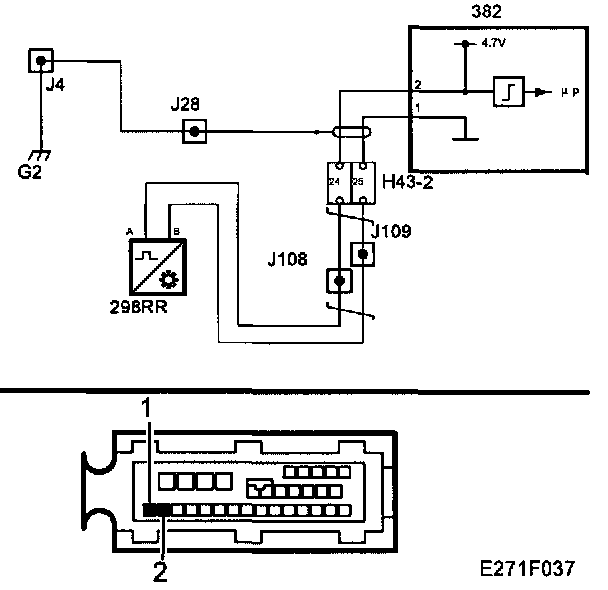

^ A reading of the rear right wheel speed sensor can be obtained with the diagnostic tool.
^ Select "Read values".
^ Select " Wheel Speed Rear Right".
Current wheel speed in km/h (mph) is displayed. With the rear wheels of the car raised, the diagnostic tool should read approximately 5 km/h (3.1 mph) if the rear right wheel is rotated by hand at about 1 rev./second.
