With TCS/ABS 5.3

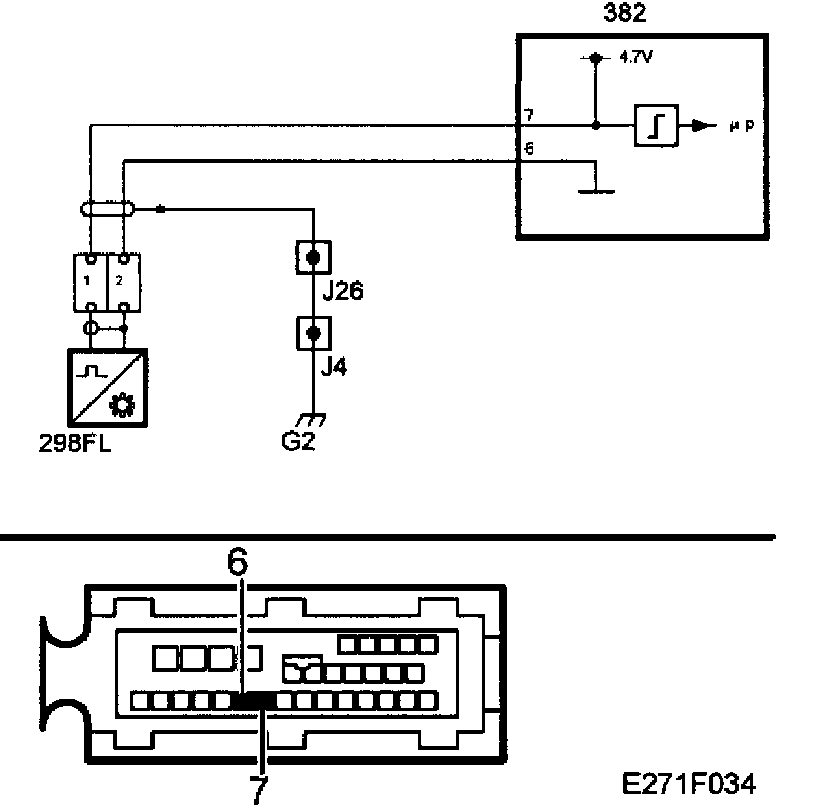

Wheel Sensor Front Left. Signal Incorrect
Fault symptoms
ABS, brakes and central warning lamps are on.
TCS OFF indicator lamp is on.
No ABS or TCS function.
Conditions
^ Speed signal not present for longer than 10 ms when vehicle speed exceeds 40 km/h (25 mph).
^ Speed signal incorrect if vehicle speed exceeds 12 km/h (7.5 mph).
Diagnostic help
^ FL wheel speed sensor signal can be read using diagnostic tool.
- Select "Read values".
- Select " Wheel Speed Front Left".
Current wheel speed in km/h (mph) is displayed.
^ With the front of the car raised, the diagnostic tool should read approximately 5 km/h (3.1 mph) if the front left wheel is rotated by hand at about 1 rev/second.
Diagnostic procedure
1. Checking Wheel Speed

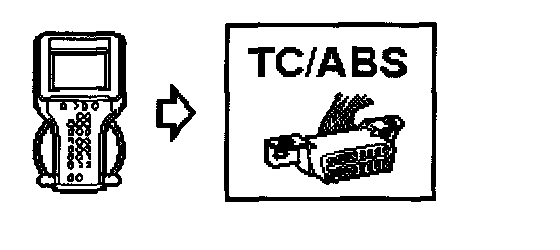

Contact TC/ABS control module.
Drive the car at a steady speed.
Go To Step 2
2. Checking Wheel Speed

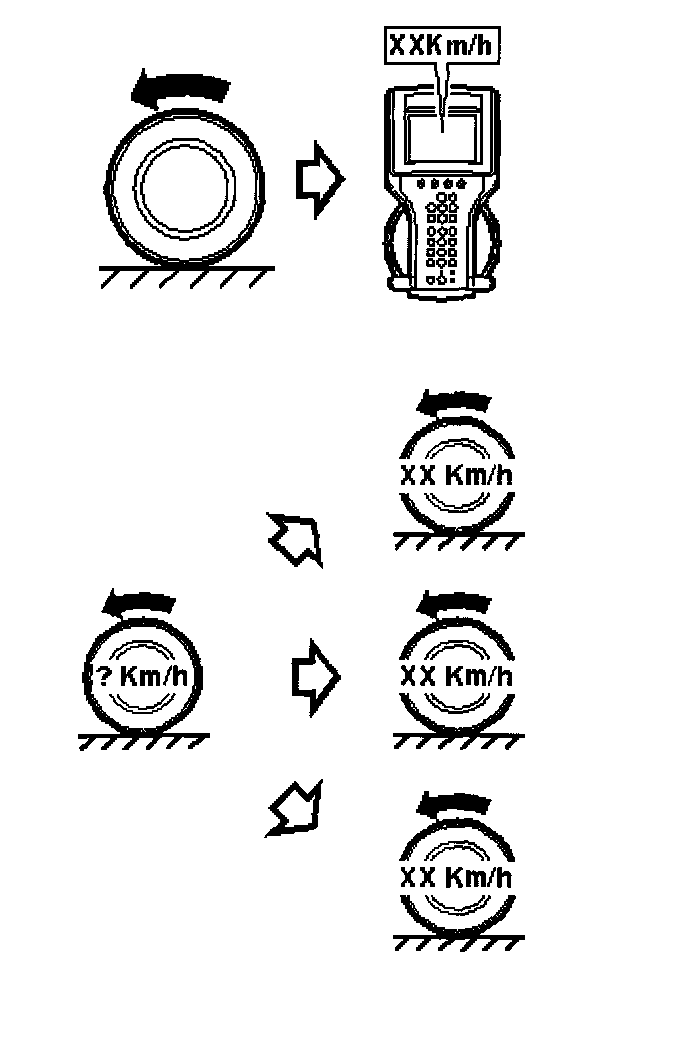

Read value:
Wheel Speed Front Left (TC/ABS control module).
Is the displayed FL wheel speed correct?
NO
Go To Step 3
YES
Go To Step 7
3. Checking Mechanical Quantities

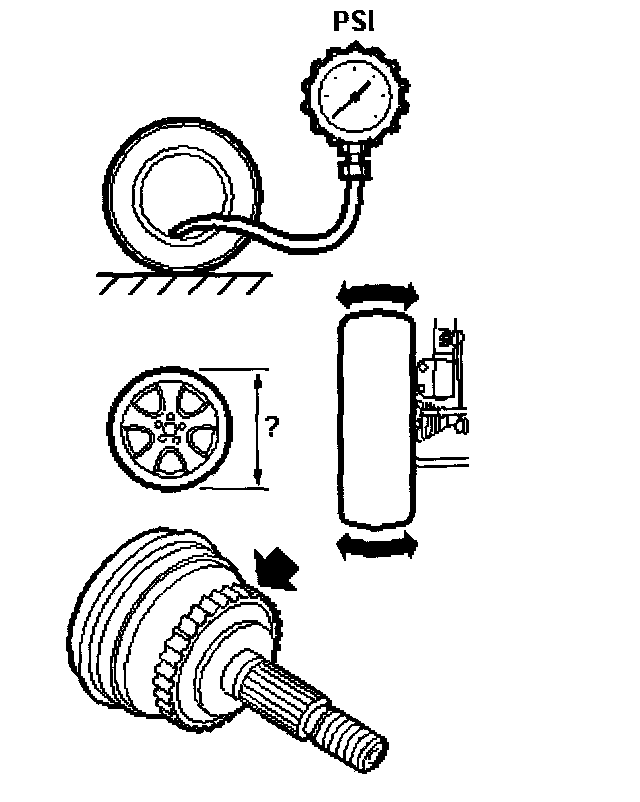

^ Check that the tire pressure, wheel size, wheel-bearing play and toothed wheel are OK.
Is the function correct?
NO
Go To Step 4
YES
Go To Step 5
4. Checking Mechanical Quantities
Rectify the fault.
When Repair Is Complete
Go To Step 7
5. Checking The Toothed Wheel Air Gap
^ The air gap between the toothed wheel and the sensor should be 0.3 - 1.3 mm.
6. Checking The Toothed Wheel Air Gap
Rectify the fault.
When repair is complete
Go To Step 7
7. Final Check
^ Clear the diagnostic trouble codes in all systems.
Carry out a drive cycle:
^ Drive the car at varying engine loads and engine rpm for five minutes.
Evaluate the drive cycle,
^ Check that the diagnostic trouble code has not recurred
Is the function correct?
NO
Go To Step 9
YES
Go To Step 8
8. Final Check
The steps taken to correct the fault were correct.
^ Diagnosis is complete.
9. Final Check
See Before changing a control module, refer to General Fault Diagnosis.
^ Diagnosis for this fault code is complete.
